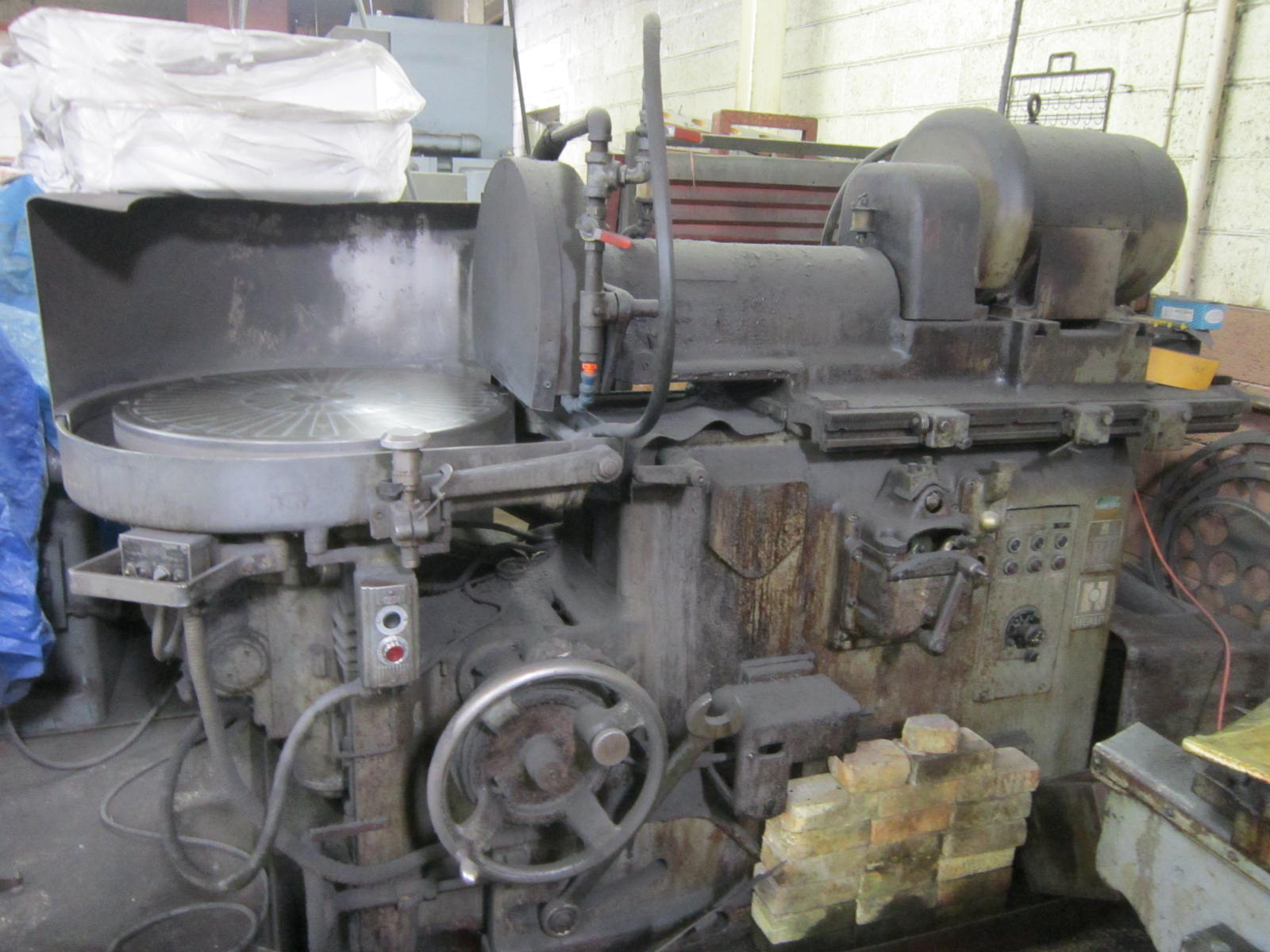

Heald 25-A Horizontal Spindle Rotary Surface Grinder

Stock Number #2164

  • BrandHeald
  • Model25-A
  • Serial Number28388
  • Equipment TypeRotary Surface Grinder

Overview


Heald 25A Horizontal Spindle Rotary Surface Grinder

SPECIFICATIONS:
Chuck Size: 24 7/8″
Chuck Speeds: 25,37,49,74 RPM
Swing Inside of Guard: 26 3/4″
Wheel Size: 14″ Min – 18″ Max x 2″ x 8″ Bore
Wheel Speed: 1285 RPM
Distance from Top of Chuck to Wheel Center: Max 13 1/4″ / Min 7″
Max Angle: Convex 15 deg / Concave 5 deg
Wheel Motor: 10 HP

Machine Dimensions: 84 1/2″ x 65″
Machine Weight: 8580 LBS.

Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
