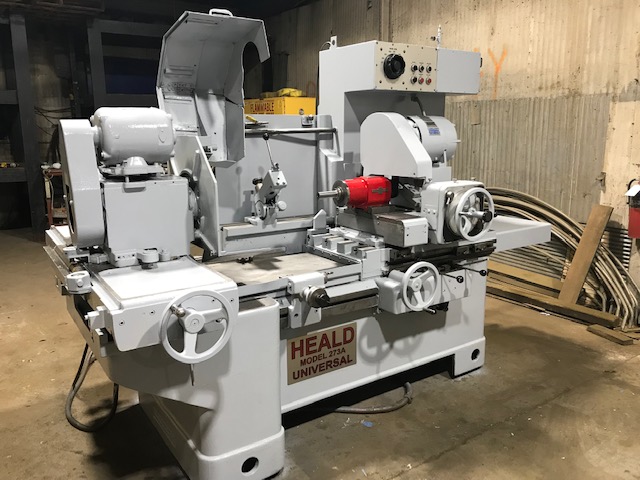

HEALD MODEL 273A UNIVERSAL INTERNAL GRINDER w/ 12″ Extended Base

Stock Number #S-2139

  • BrandHeald
  • ModelModel 273A
  • Equipment TypeUniversal Internal Grinder w/ 12" Extended Base

Overview


HEALD MODEL 273A UNIVERSAL INTERNAL GRINDER w/ 12″ Extended Base
Serial No. 44083

SPECIFICATIONS:
Swing over Table: 24.5”
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds from 0 to 500 RPM, Variable

EQUIPPED WITH:
Heald Red Head grinding spindle
Table mounted dresser
12″ Extended base
Workhead Sine bar
Hydrostatic Ways
Electrical Motors & Controls 440/3/60
Electrical Prints
Dimensions: FB X RL – 62″ X 92″
Height: 77″
Est. Weight: 7,000 lbs

Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
