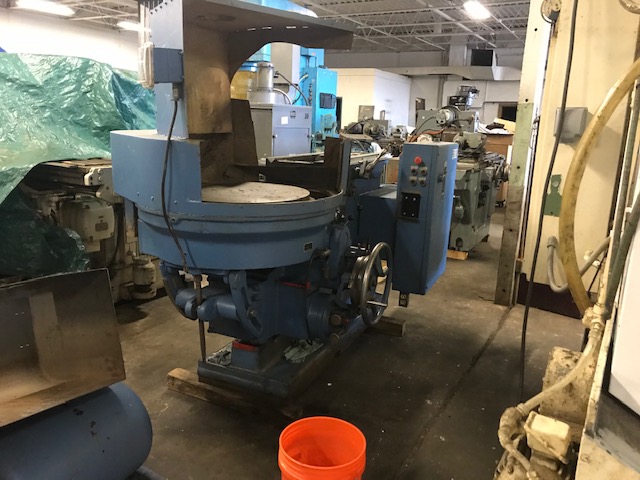

Arter B-24 Horizontal Spindle ( Ram Type ) Rotary Surface Grinder

Stock Number #S-2496

  • BrandArter
  • ModelB-24
  • Equipment TypeHorizontal Spindle Rotary Surface Grinder

Overview

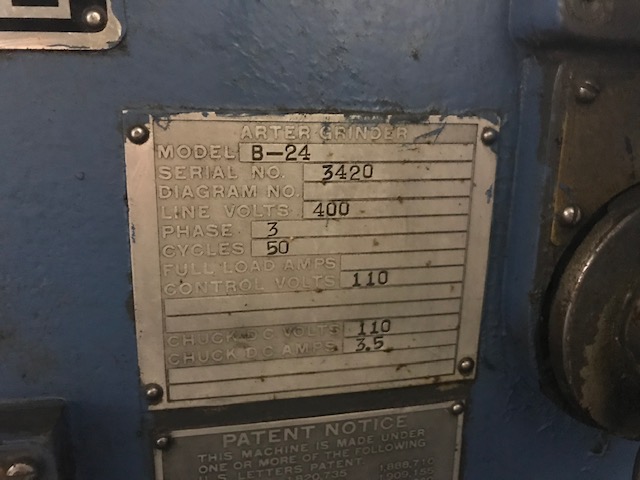

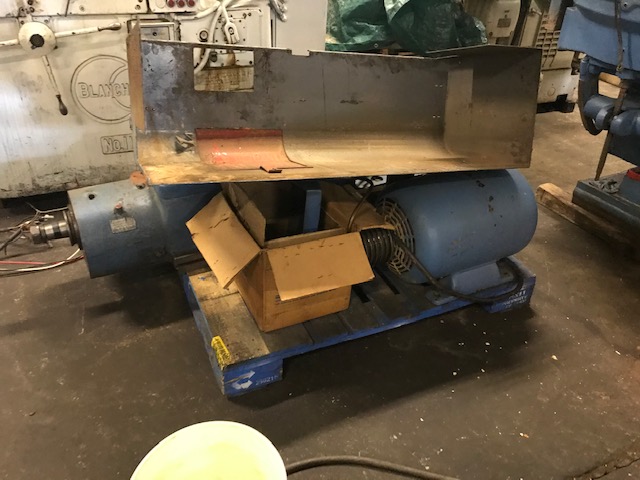

ARTER B-24 HORIZONTAL SPINDLE ROTARY SURFACE GRINDER Serial Number: 3420 Stock Number: 2116 SURFACE DIAMETER OF MAGNETIC CHUCK …………….. 25″ MAX. SWING INSIDE GUARDS ……………………… 36″ VERTICAL CAPACITY UNDER FULL 20″ WHEEL …………. 8″ TILT OF TABLE FOR CONVEX OR CONCAVE GRINDING ……. 10 DEG. GRINDING WHEEL SIZE ………………………….. 20″D X 12″BORE X 2″WIDTH CHUCK ROTATION SPEED …………………………. UP TO 75 RPM GRINDING WHEEL SPINDLE SPEED ………………….. 950 RPM HANDWHEEL FOR RAISING & LOWERING WORK TABLE IS CALIBRATED IN INCREMENTS OF ………………. 0.005″ FINE FEED KNOB FOR RAISING & LOWERING WORK TABLE IS CALIBRATED IN INCREMENTS OF ………………. 0.0001″ APPROXIMATE MACHINE WEIGHT ……………………. 10,700 LBS Machine Has been Dis-Assembled, New Rulon on the Table. ┬áSpindle Run Quiet * Issues with the Feed Mechanism and Some Play in the Ram

Looking for a similar machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
