Arter B30 Horizontal Spindle Rotary Surface Grinder

Stock Number #S-1760

  • BrandArter
  • ModelB30
  • Equipment TypeHorizontal Spindle Rotary Surface Grinder

Overview


ARTER HORIZONTAL SPINDLE ROTARY SURFACE GRINDER MACHINE
Model: B30

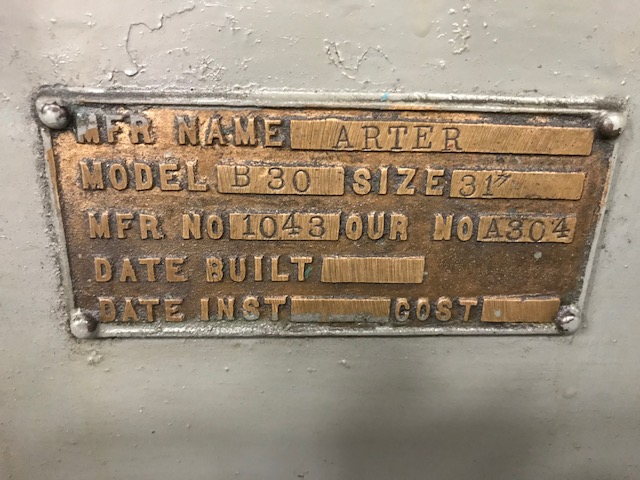

Serial Number: 1043

Specifications
Chuck Diameter 31 in
Max. Swing Inside Guards 38 in
Wheel Size 20″ x 3-1/2″ x 12″ Hole
Vertical Capacity Full Diameter
Tilt of Work Table for Convex Grinding 10 °
Tilt of Work Table for Concave Grinding 10 °
Wheel Spindle Speeds 950 rpm

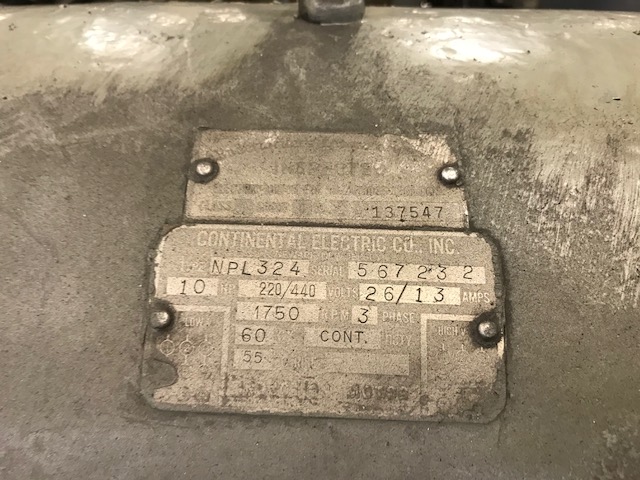

Wheel Motor 10 HP
Approx. Machine Weight 10,000 lb
Approx. Machine Dimensions 102 x 87 x 81 in

Machine Currently Wired 240 V / 3 Phase / 60 Cycle

Equipped With:
31″ Magnetic Chuck and Controls with Approx. 3/4″ Chuck Life
Coolant Pump and Tank
Automatic Lubrication

Slide & Bed Ways all Scraped & Flaked
