Boyar Schultz 8″ X 18″ Hydraulic Surface Grinder

Stock Number #2173

  • BrandBoyar Schultz
  • Model818-A3

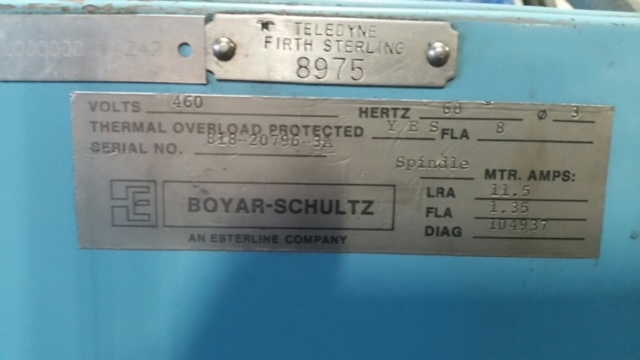

  • Serial Number818-20796-A3
  • Year1985
  • ConditionGood - Used
  • Equipment TypeHorizontal Surface Grinder

Overview


8″ X 18″ BOYAR SCHULTZ SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED

MODEL: 3A818
SERIAL NUMBER: 818-20796-3A

WIDTH& LENGTH GROUND …………………8″ X 18″
MAX. HEIGHT UNDER 7″ WHEEL TO TABLE ……….. 13″
LONGITUDINAL TABLE TRAVEL ………………… 21″
LONGITUDINAL TABLE SPEED ………….. 0 TO 70 FPM
CROSS FEED TRAVEL …………………….. 9-1/4″
AUTOMATIC CROSS FEED INCREMENT ………. 0 TO 3/8″
WHEEL DRESS ………………….. MANUAL OR 0-80″
CROSS FEED HANDWHEEL ………………….. 0.001″
AUTO INCREMENTAL DOWNFEED (5 STEPS) .. 0.0001″ – .002″
TOTAL AUTO DOWNFEED RANGE ……………… 0.001″
VERTICAL HANDWHEEL …………………… 0.0001″
GRINDING WHEEL DIAMETER ………………….. 8″
APPROX. MACHINE WEIGHT …………….. 2,450 Lbs.

EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE CYCLES)
NUMBER OF SPARKOUT PASSES IS PRE-SELECTABLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC LONGITUDINAL & CROSS FEEDS
1 H.P. BOYAR SCHULTZ SUPER-PRECISION DIRECT DRIVE
SPINDLE, 3450 RPM
HARD STEEL WAYS
CROSS FEED LOCK
AUTOMATIC LUBRICATOR TO ENSURE THAT WAYS, SCREWS,
AND ALL WEAR PARTS ARE PROPERLY OILED.
SELF-CONTAINED HYDRAULICS SYSTEM
8″ x 18″ CHUCK
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
