Bridgeport Series II Special Vertical Knee Mill

Stock Number #2190

  • BrandBridgeport
  • ModelSeries II Special
  • Serial Number4675S
  • ConditionExcellent
  • Equipment TypeVertical Knee Mill

Overview

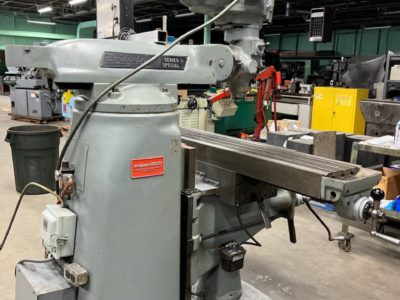

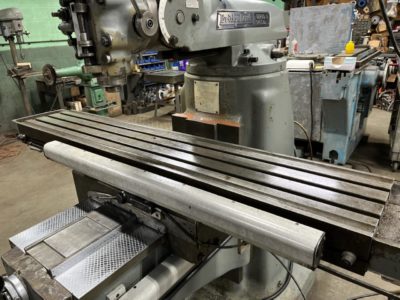

Bridgeport Series II ” Special ” Vertical Knee Mill

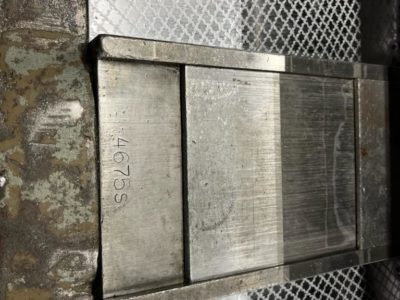

Serial Number: 4675S

SPECIFICATIONS:
Table working surface ……… 11″ x 58″
Table travel – longitudinal X ……… 33.5″
Saddle travel (Y) ……… 15″
Quill travel ……… 5″
Knee travel ……… 16″
Ram travel ……… 15 1/2″
Throat distance ……… 6″ – 21 1/2″
Spindle speeds ……… 60 – 4200 rpm
Spindle feeds ……… .0015 / .003 / .006 IPR
Spindle taper ……… R-8
Spindle motor ……… 2Hp 208-230/460 3ph
Max weight of workpiece ……… 1,500 lbs.
Approximate overall dimensions ……… 70″W x 68″D x 83″H
Approximate weight ……… 4,200 lbs

EQUIPPED WITH:
Rebuilt Head
New Mitutoyo KA-200 2 Axis DRO
New Servo Power Table Feed
Chrome Box Ways



Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
