Brown & Sharpe Universal OD Grinder 1024U

Out of Stock

Stock Number #S-1699

c e
  • BrandBrown & Sharpe
  • Model1024U
  • Equipment TypeUniversal OD Grinder

Overview

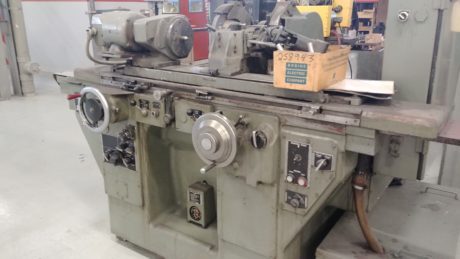

10″ X 24″ BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER

MODEL: 1024U

SWING OVER TABLE: 10″
DISTANCE BETWEEN CENTERS, NOMINAL: 24″
DISTANCE BETWEEN CENTERS, MAXIMUM: 26-3/4″

WHEELHEAD SPINDLE SPEEDS (3) …… 2100, 2400& 2800 RPM
GRINDING WHEEL SIZE …………………… 12″ X 1″ X 5″
MINIMUM GRINDING WHEEL WIDTH …………………… 3/8″
SWIVEL AT THE WHEELSLIDE ……….. 90 DEGREES EITHER WAY
WHEEL SPINDLE SWIVELS ………….. 90 DEGREES EITHER WAY

INFINITELY VARIABLE SPINDLE SPEEDS …….. 60 TO 600 RPM
HEADSTOCK SPINDLE NOSE TAPER ………………….. A2-5″
HEADSTOCK SWIVELS EITHER SIDE OF ZERO ……… 90 DEGREES

INFINITELY VARIABLE TABLE SPEED ………. 3″ TO 150″ IPM
TABLE PER REV. OF HANDWHEEL:
SLOW ………………………………………… 0.1″
FAST ………………………………………… 1.5″
DWELL AT EACH OR ALTERNATE TABLE REV. ….. 0 – 2-1/2 SEC.
TABLE SWIVEL, SCALES FOR ANGULAR SETTING …… 8-1/4 DEG.
SCALES-TAPER PER FT. ………………………… 3-1/2″

MAX. TRAVEL OF WHEELSLIDE ………………………. 5″
CROSSFEED HANDWHEEL GRAD. ………………….. 0.00002″
AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER
OR WORK AT EACH OR ALTERNATE REVERSALS .. 0.0001″ – .003″
HAND FEED PER REV. OF HANDWHEEL:
SLOW ………………………………………… 0.1″
FAST ………………………………………… 0.3″

TAILSTOCK SPINDLE TAPER …………………….#7 JARNO
TAILSTOCK SPINDLE TRAVEL ………………………. 5/8″

APPROXIMATE WEIGHT ………………………. 5,100 LBS

MACHINE FEATURES:
DUAL RIGHT OR LEFT END WHEEL MOUNTING
SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
COMBINATION STRAIGHT AND TAPER GRINDING,
EXTERNAL OR INTERNAL ( no Internal Assembly ).

INFEED HANDWHEEL GRADUATED TO READ TO 0.000020″
HYDRAULIC TABLE TRAVERSE
AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
ADJUSTABLE TABLE DWELL
SELF-CONTAINED HYDRAULIC SYSTEM
EQUIPPED WITH:

B & S “HYDROSTATIC” WORKHEAD w/DUAL DEAD/LIVE
HEADSTOCK SPINDLE
COOLANT SYSTEM
MOTORS ARE 3/60/230-460 VOLTS
