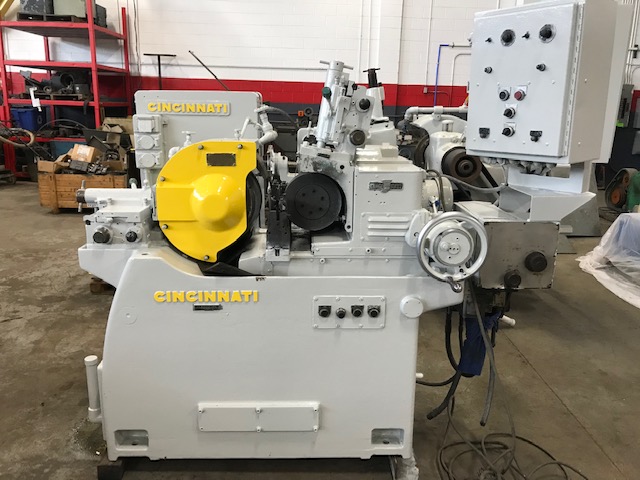

Cincinnati 107-4 Centerless Grinder

Overview

Cincinnati 107-4 Centerless Grinder

SPECIFICATIONS:
Maximum Grinding Diameter: 0 to 1-1/2″ diameter
Max./Min. Grinding Wheel Diameter x width x hole: 16″/12″ x 4″ x 10″
Max./Min. Regulating Wheel Diameter x width x hole: 9″/7″ x 4″ x 4″ dia
Regulating Wheel Speed – Infinitely Variable: 22 – 300 RPM
Motor: 7-1/2 HP
Electrics: 440V / 3Ph / 60Hz
Weight – Approximate: 4,560 lbs.
Dimensions – Approximate: 63″ x 61″

EQUIPPED WITH:
4″ Thru-Feed Workrest
