Freeport Double Column Horizontal Surface Grinder

Stock Number #2202

  • BrandFreeport
  • ModelSGS-2012AHD
  • Serial Number108183
  • Year2019
  • ConditionExcellent - Like New
  • Equipment TypeDouble Column Horizontal Surface Grinder

Overview


Freeport SGS-2012AHD Double Column Horizontal Surface Grinder

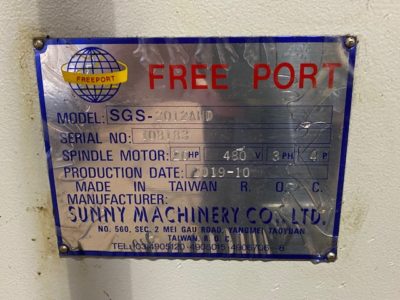

Model: SGS-2012AHD
Serial Number: 108183
New: 2019

SPECIFICATIONS:
Work Table: 1300mm Width x 2900mm Length
Current Chuck Size: 1300mm Width x 2000mm Length
Max Horz. Spindle Travel: 2200mm
Distance Between Columns: 1600mm
Table Speed: 5 – 25M/min
Max Table Load Capacity: 4000KG
Distance Between Table & Spindle Center: 950mm

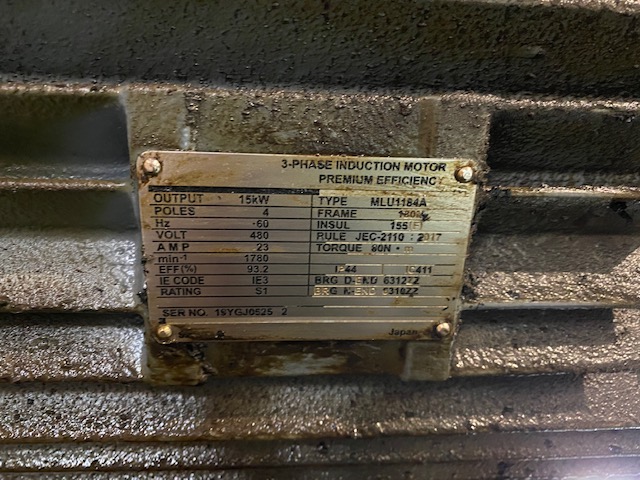

Spindle Motor: 20HP
Grinding Wheel Dimensions: 510mm X 50mm X 127mm
Spindle Speed: 1250RPM
Downfeed: 0.005 ( 5 Microns )
Rapid Downfeed Speed: 650mm/Min
Incremental Crossfeed

EQUIPPED WITH:
(2) Chucks – Electro-Magnetis

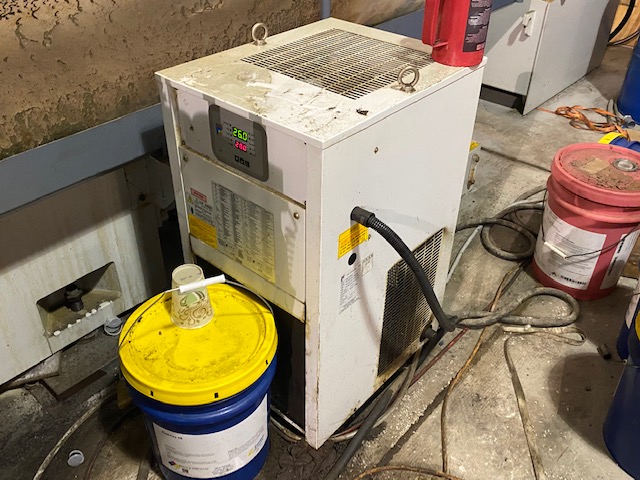

Oil Chiller
Free Standing Hydraulics w/ Chiller
Coolant System w/ Filtration
