Gardner SDG5-32 Horizontal Opposed Double Disc Grinder

Stock Number #2198

Industrial Machine
  • BrandGardner
  • ModelSDG5-32
  • Serial Number672-5
  • ConditionGood - Used
  • Equipment TypeHorizontal Opposed Double Disc Grinder

Overview

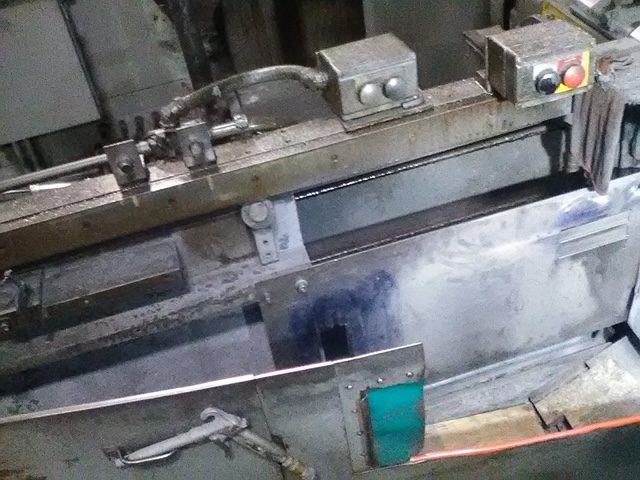

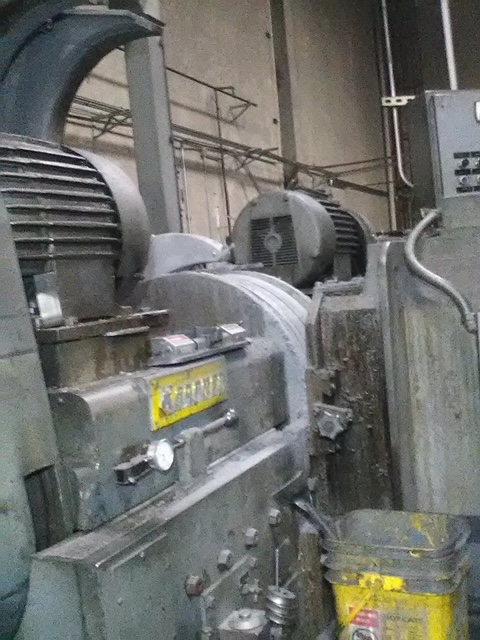

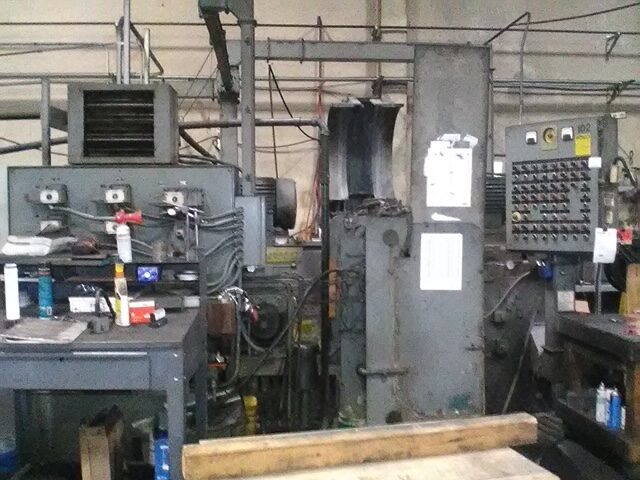

Gardner SDG5-32 Horizontal Opposed Double Disc Grinder

SPECIFICATIONS:
Wheel Dimensions: 32″ Diameter x 3″ Max Thickness
Max Opening Between Backing Plates: 15″
Work Capacity w/ 3″ Wheels: 12″ x 6″ Width
Feed Increments: 0.0001 or 0.000050″ or Multiples of Both
Grinding Wheel HP:

EQUIPPED WITH:
Reciprocating Feed System
Dresser
Coolant Filtraion System

Machine Dimensions:
126 3/4″ x 125 1/2″ x 102 Height ( With Hood Open )
23,500 lbs. Approx Weight

Videos


Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
