Gleason #19 Curvic Coupling Grinder

Out of Stock

Stock Number #S-1437

IMG  e
  • BrandGardner
  • Model#19
  • Equipment TypeCurvic Coupling Grinder

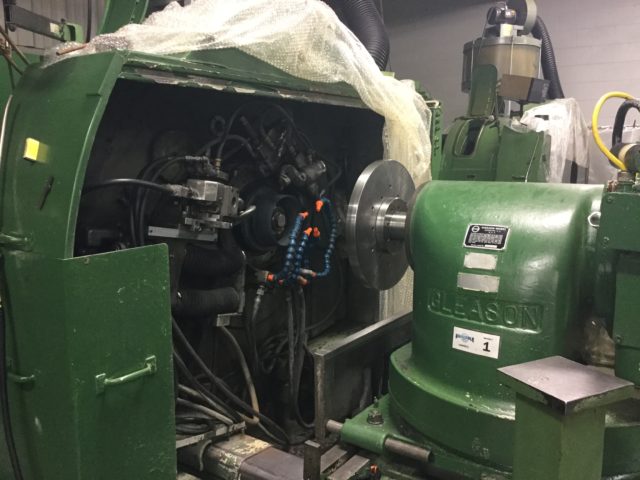

Gleason Curvic Coupling Grinder
Model: #19
Serial Number: 27-567

Index range: 32 to 150 teeth
Approx. weight: 21,500 lbs
Hydraulic motor: 2 HP
Max. full depth: .375″ (12mm)
Main drive motor: 1HP
Index drive motor: 1/3 HP
Wheel drive motor: 5 HP
Max. dia. coupling: 24″ (610mm)
Floor space requirement: 133″ x 80″
Max. clearance diameter: 40″ (1016mm)
Sliding base withdrawal: 8.5″ (216mm)
Depth of work spindle taper: 6″ (152.4″)
Work spindle thru-bore diameter: 3.07″ (78mm)
Work spindle bore taper per foot: .609″ (15.47mm)
Dia. of work spindle taper bore at latge end: 3.9″ (99.21mm)

(2) Axis DRO
Safety Index Limit Switch

This item was recently sold.
Looking for a similar machine?


Call for more information 586-465-9700

Financing is available upon request.
