Haas TL-2 CNC Lathe

Overview

HAAS TL-2 CNC Lathe
New: 2007

SPECIFICATIONS:

SWING 20″
MACHINING LENGTH 48″
# AXIS 2
CHUCK SIZE 8″
BAR CAPACITY 2.3″
POWER 10 hp
MAX RPM 1,800 RPM
TURNING DIA 16″
TAILSTOCK ‘Yes’
LIVE TOOLING ‘No’
SUB SPINDLE ‘No’

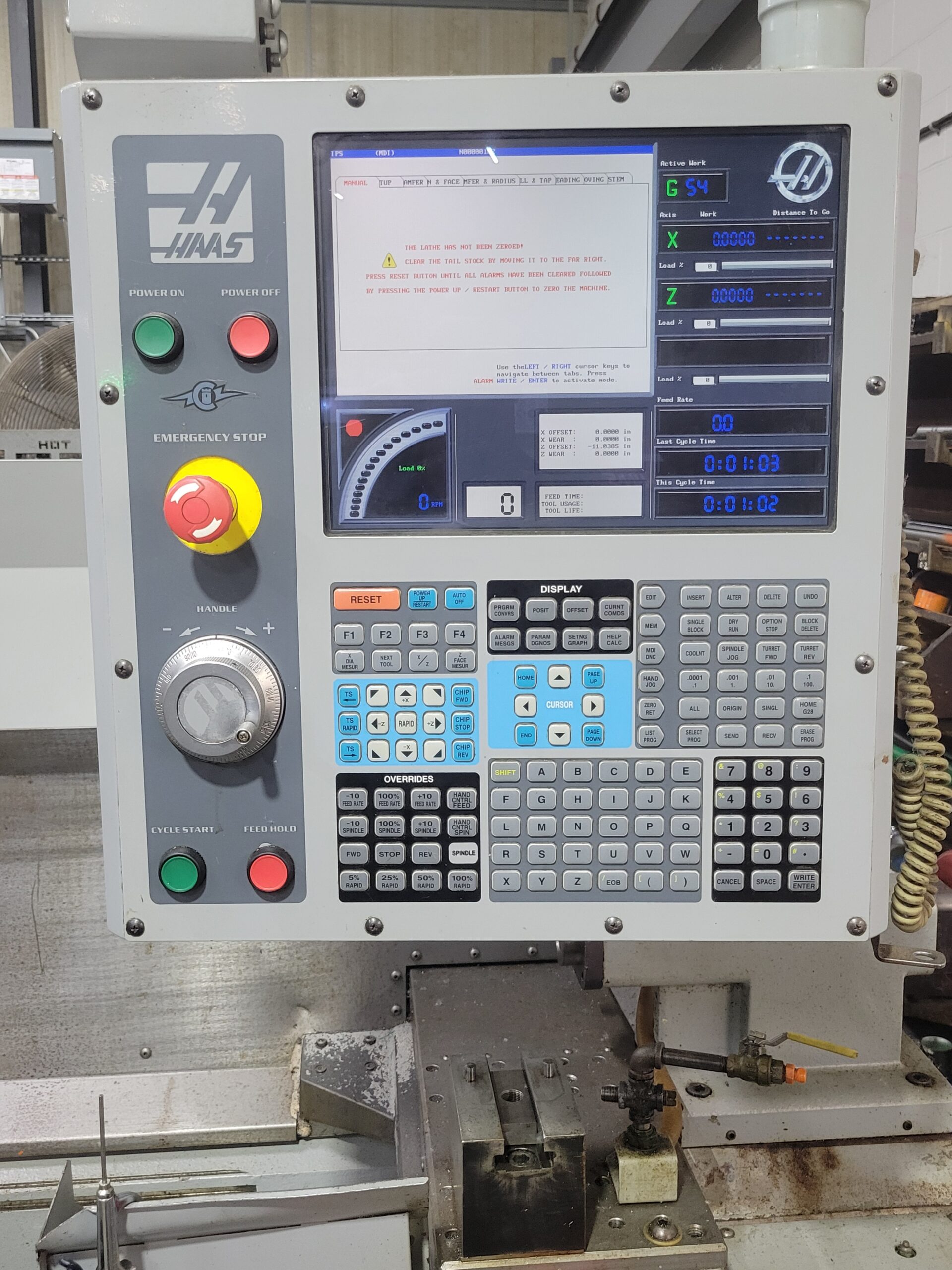

CONTROL CNC (Haas)
DIMENSIONS 110″ x 69″ x 83″
WEIGHT 4480#
Swing: (open front apron) 20″
Swing: (over cross slide) 11″
Chuck Size: 8″
Max Cutting Diameter: (w/tool post) 16″
Max Cutting Length: (w/tool post) 48″
Distance Between Centers: 48″
Travels:
X Axis: 8″
Z Axis: 48″
Feed Rates:
Rapid on X Axis: 450 IPM
Rapid on Z Axis: 450 IPM
Spindle Nose: A2-5
Bar Capacity: 2.3″
Spindle Speed: 1800 RPM Max
Motor: 10 HP / 1800 rpm / Direct Speed, Belt Drive
