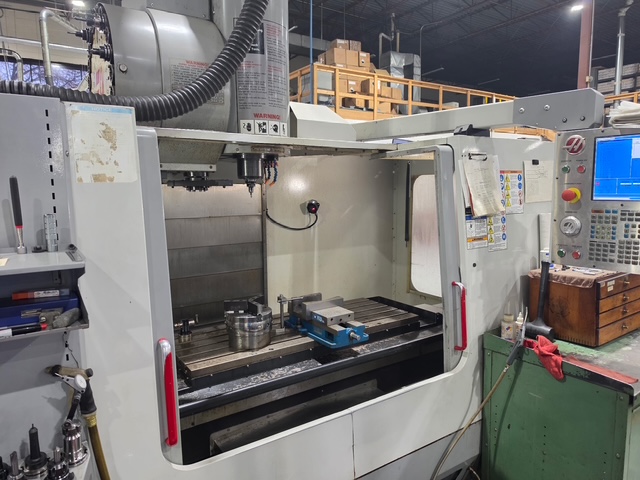

HAAS VF-3 SS CNC VERTICAL MACHINING CENTER

Overview

HAAS VF-3 SS CNC Vertical Machining Center
NEW: 2004

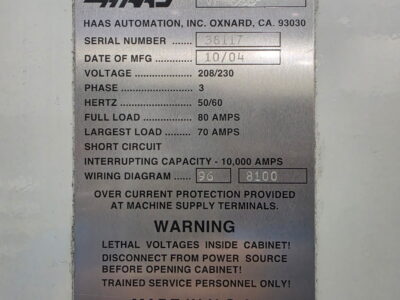

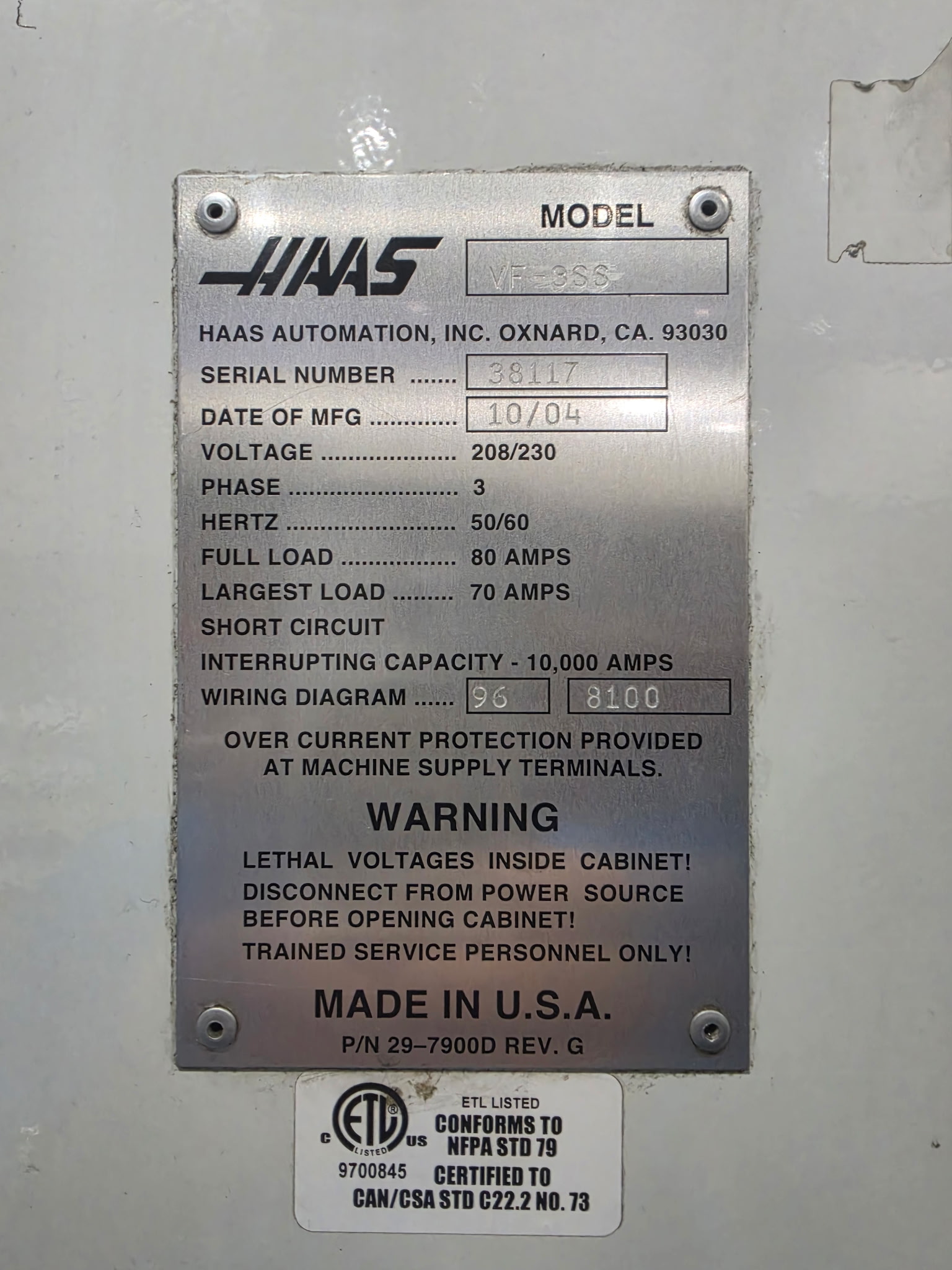

SERIAL NUMBER: 38117

SPECIFICATIONS:
X Axis Travel: 40″
Y Axis Travel: 20″
Z Axis Travel: 20″
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 48″ x 18″
Spindle Nose to Table: 4.2″-29.2″
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP

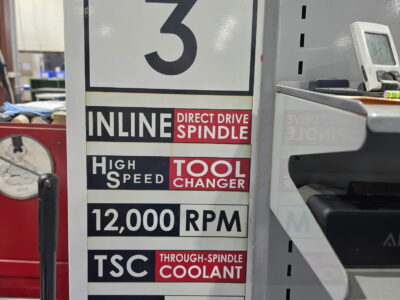

Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Torque: 90 Ftlbs
T Slot: 0.63″
Max Cutting 833 ipm
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3923 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Dimensions: 131″ x 92″ x 101″
Weight: 11,720 LBS
208/230 Voltage

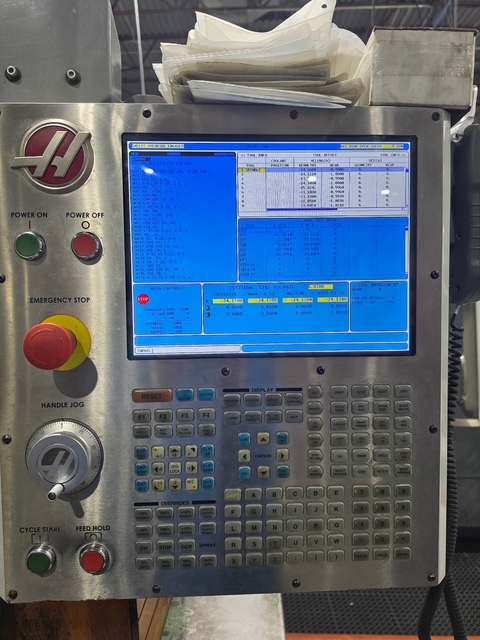

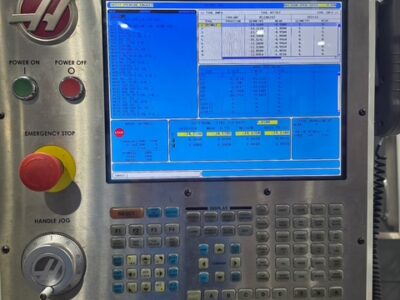

HAAS CNC Control
Programmable Coolant
Remote Jog
High Speed Machining

NEW BALL SCREWS X, Y & Z AXIS
NEW DRAW BAR

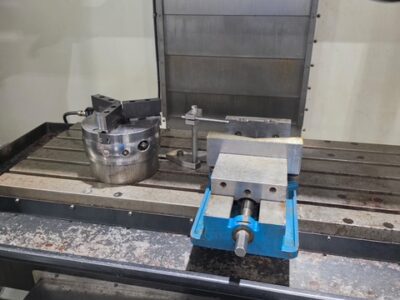

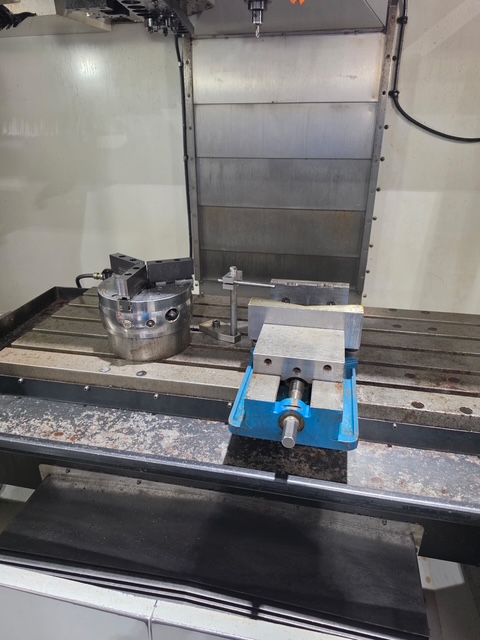

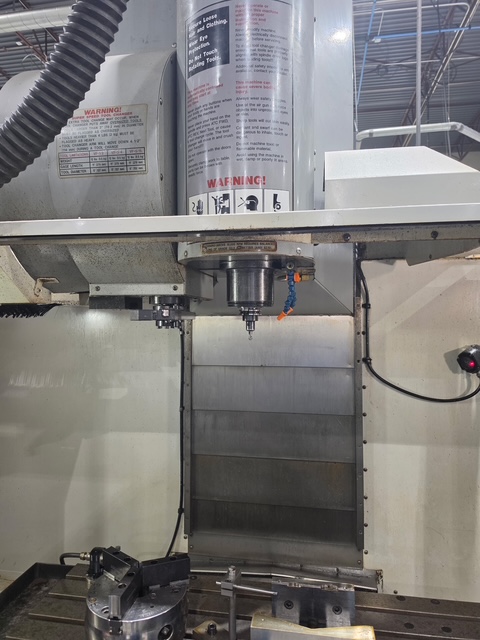

VISE & CHUCKS PICTURED NOT INCLUDED
