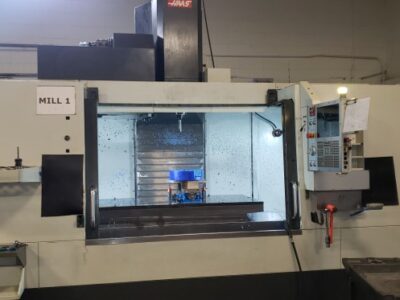

HAAS VF-6 CNC Vertical Machining Center

Out of Stock

Stock Number #2029

  • BrandHAAS
  • ModelVF-6/40
  • Serial Number1162284
  • Year2019
  • ConditionExcellent
  • Equipment TypeCNC Vertical Machining Center

Overview


HAAS VF-6 Vertical CNC Machining Center
Model: VF-6/40
Serial Number: 1162284
New: 04/2019

Table:
Table Size: 64″ x 28″
Maximum Table Load: 4,000 lbs.

Travels:
X-Axis Travel: 64″
Y-Axis Travel: 32″
Z-Axis Travel: 30″

Spindle:
Spindle Speeds Minimum – Maximum: 10,000 RPM
Spindle Taper: CT 40 Taper
Main Motor (30 min. / cont.): 30 / 20 HP

Tool Changer:
Tool Changer Positions: 24 ATC

Rapids:
Rapid Traverse (XY/ Z): 540 / 600 IPM
Feed Rate: 0.1 – 300 IPM

General:
Floor Space (D x W x H): 159″ x 156″ x 129″
Weight: 22,000 lbs
220 V / 3 / 60

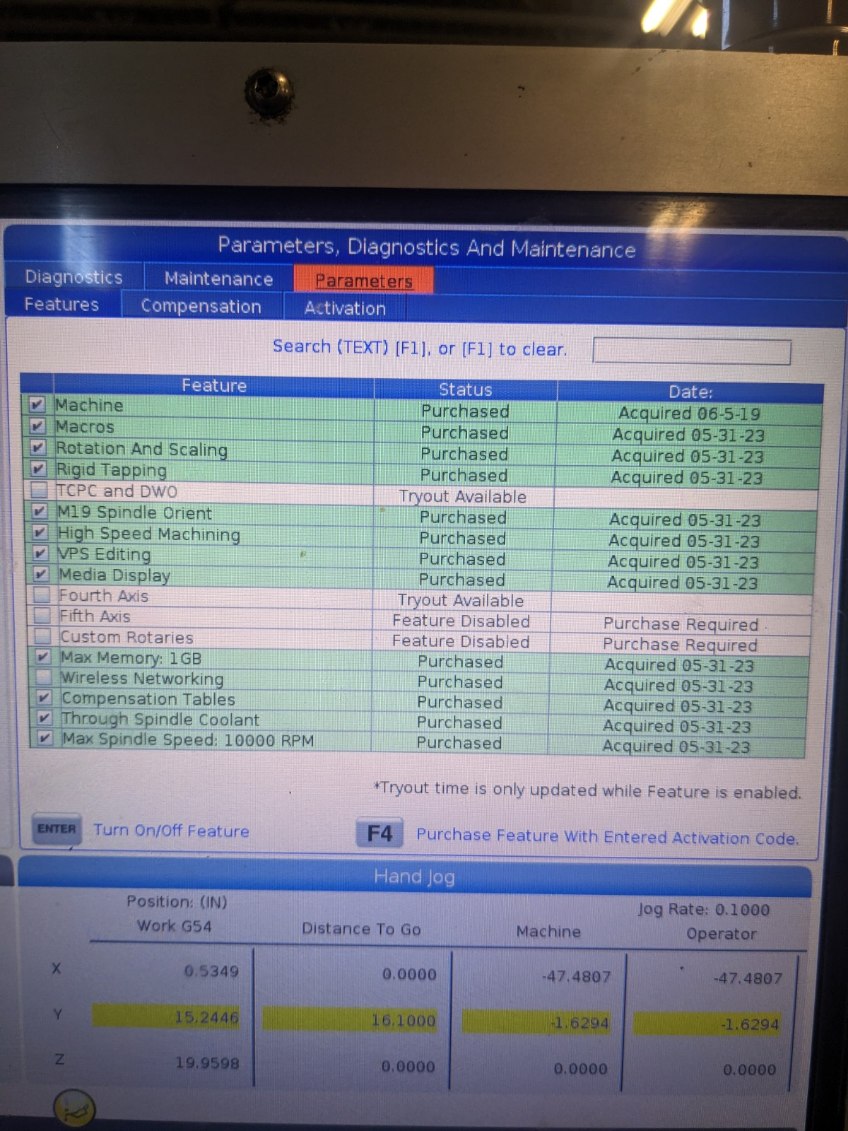

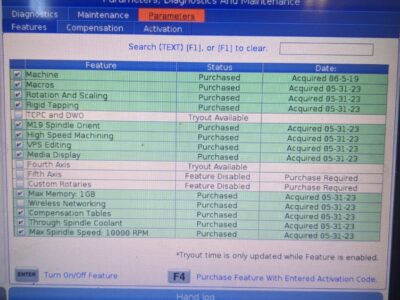

Equipped With:
Coolant Through Spindle (300 psi)
Macros
Rotation and Scaling
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
1 GB Memory
Wireless Networking
Compensation Tables
Max Spindle Speed: 10,000 RPM
30 HP Vector Drive, Inline Spindle
Linear Scales
Through Tool Air Blast
Auxiliary Coolant Filter
24+1 Side-Mount Tool Changer
Chip Auger
Programmable Coolant Nozzles
Color Remote Job Handle
Power-Failure Detection Module
15″ Color LCD Monistor
USB Port
Memory Lock Keyswitch
Rigid Tapping
95 Gallon Floor Coolant System

This item was recently sold.
Looking for a similar machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
