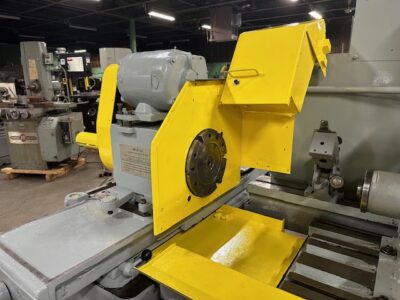

Heald 273A Universal Internal Grinder

Overview

Heald 273A Universal Internal Grinder
Serial Number: 45586
12″ Extended Base

SPECIFICATIONS:
Swing over Table: 24.5″ *
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds from 0 to 500 RPM, Variable

EQUIPPED WITH:
Red Head Spindle – 11,000 RPM
Telemencanique Variable Speed Drive for Spindle
Table mounted dresser
12″ Extended base
Workhead Sine bar
4 Barrel Stop / Facing Attachment
Hydrostatic Ways
Forward & Reversing Switch for Workhead
Electrical Motors & Controls 440/3/60
Dimensions: FB X RL – 62″ X 92″
Height: 77″
Est. Weight: 7,000 lbs

Coolant Tank & Pump
