Heald 273A Universal Internal w/ Extended Bridge Reconditioned 2021

Out of Stock

Stock Number #2156

  • BrandHeald
  • Model273A Universal with Extended Base & 4" Risers
  • Serial Number42880
  • ConditionCleaned Painted & Cycled
  • Equipment TypeInternal Grinder

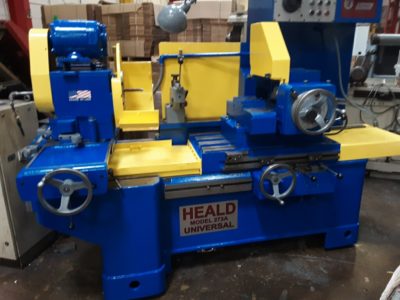

Heald 273A Universal Internal Grinder Reconditioned 2021
12″ Extended Base
4″ Factory Riser

Swing over Table: 32.5″ *
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Workhead Speeds from 0 to 500 RPM, Variable

(* 32.5″ Swing w/ Riser Blocks )

20” Diameter faceplate
Table mounted dresser
4” Factory Risers
12″ Extended base
Workhead Sine bar
4 Barrel Stop / Facing Attachment
Hydrostatic Ways
Forward & Reversing Switch for Workhead
Electrical Motors & Controls 440/3/60
Dimensions: FB X RL – 62″ X 92″
Height: 77″
Est. Weight: 7,000 lbs

Rebuilt Hydraulic Unit
Rebuilt Dresser
Feedbox Cleaned and Adjusted
Leadscrew Reconditione
Rebuilt Spindle Drive Motor
Headstock Tested & Good Running Condition


This item was recently sold.
Looking for a similar machine?


Call for more information 586-465-9700

Financing is available upon request.
