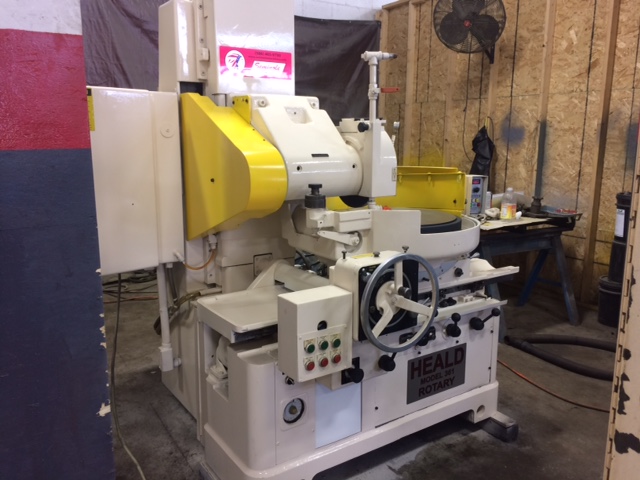

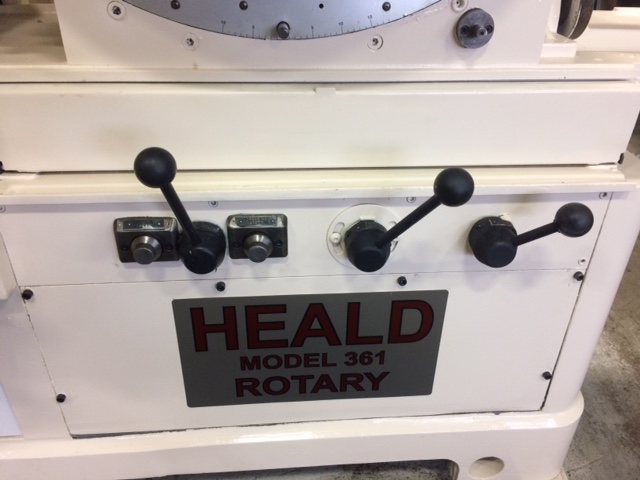

Heald 361 Horizontal Spindle Rotary Surface Grinder

Out of Stock

Stock Number #S-1520

  • BrandHeald
  • Model361
  • Equipment TypeHorizontal Spindle Rotary Surface Grinder


Heald 361 Horizontal Spindle Rotary Surface Grinder
Serial Number:

Magnetic Chuck Diameter: 24 7/8″
Chuck Life: .285″
Maximum Swing: 28″
Std Wheel Size: 14″ x 1.5″ x 5″
Minimum Wheel Diameter: 9″
Distance Between Chuck & Wheel: 14″”
Max Angle Convex/Concave: 17 DEG / 10 DEG
Table Travel: 16″
Grinding Stroke: 12″
Chuck Speeds: 38-100 RPM
Wheel Speed: 1,750 RPM
Wheel Motor: 15 HP
Machine Dimensions: 115″L x 79″W
Machine Weight: 12,000 LBS
220 V / 3 Phase / 60 Cycle

Standard Base Dresser & Wheel Guard Dresser

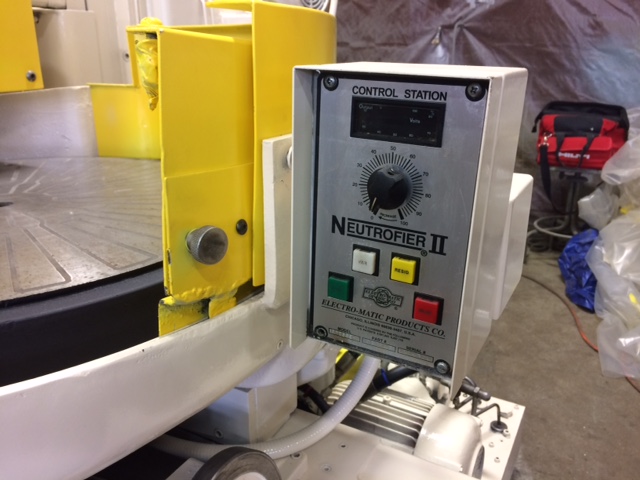

Neutrofier II Chuck Control
Coolant Pump & Tank

This item was recently sold.
Looking for a similar machine?


Call for more information 586-465-9700

Financing is available upon request.
