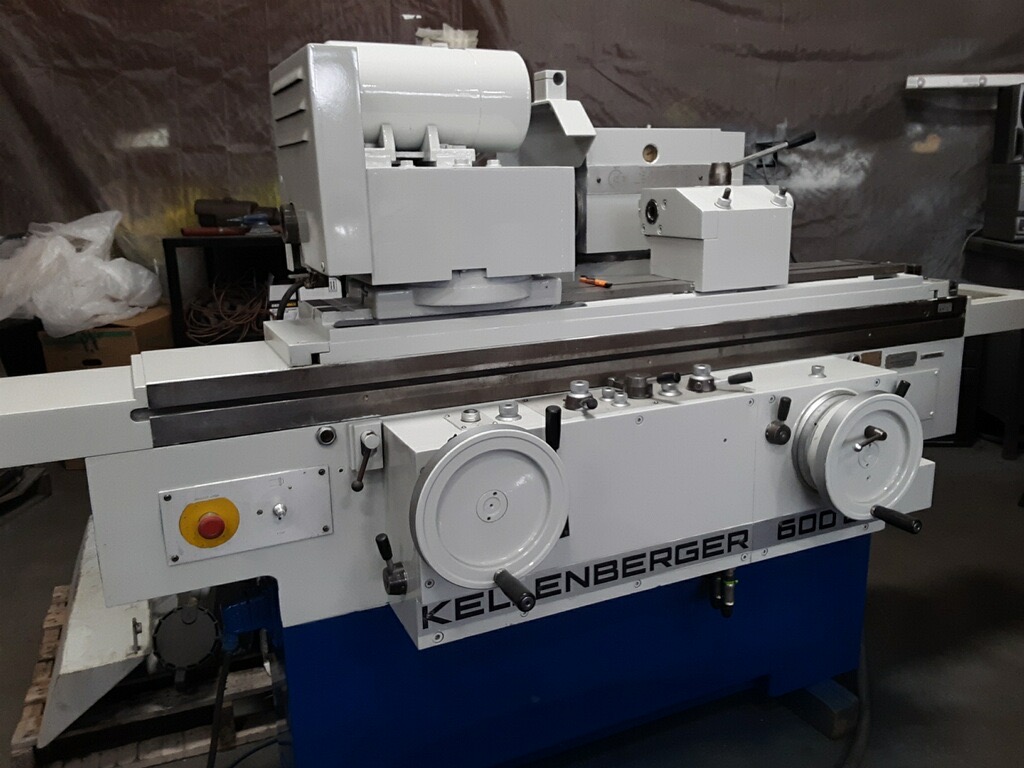

Kellenberger 600U Universal OD Grinder

Out of Stock

Stock Number #S-2465

  • BrandKellenberger
  • Model600U
  • Equipment TypeUniversal OD Grinder

Overview


Kellenberger 600U Universal OD Grinder
Model: 600U
Serial Number: 32459-2127

SPECIFICATIONS:

Height of Centers, as Presently Configured …………………………6.75″
Nominal Swing …………………………………………………….13″
Distance between Centers (Nominal)……………………………….23-5/8″
Distance between Centers w/Tailstock Overhanging ………………….29-1/2″

Table:
Longitudinal Table Travel…………………………………………..27″
Longitudinal Table Travel per Handwheel Turn – Coarse……………….25/32″
Longitudinal Table Travel per Handwheel Turn – Fine………………….3/32″
Longitudinal Table Speed – Hydraulic………………………0.06 to 18′ FPM
Table Swivels……………………………………………….11 Degrees
Reversing Dwell…………………………………………..0 – 5 Seconds

Grinding Wheel Infeed:
1 Graduation of Feed Scale………………………………………0.0002″
Automatic Feed – Maximum…………………………………………0.035″
Automatic Infeed Per Table Reversal………………………0.00005″ – 0012″
Infeed for Plunge Grinding………………………………0.00004″ – .002″
Plunge Grinding – Infeed Speed……………………….10 – 1000 uIN/Second
Micrometer Stop, 1 Graduation…………………………………..0.00005″

Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide……………………………….11-1/4″
Hydraulic Rapid Wheel Slide Advance/Retraction Stroke………………1-9/16″
Grinding Wheel Speeds – RPM (4)……………………1500, 1700, 2220 & 3600
Grinding Wheel for Cylindrical Grinding……………………..16″ X 2″ X 5″
Grinding Wheel – Surface Grinding…………………………10″ X 3/4″ X 3″
Swivel of Grinding Head w/Locking Every 90 Degrees……………..270 Degrees
Vert. Motion of Grinding Spdl Head, Height of Centers…..4-59/64″ – 13-25/32″

Workhead:
Spindle Speeds – Infinitely Variable ………………………..10 – 400 RPM
Workhead Swivels……………………………………………360 Degrees
Inside Taper of Work Spindle………………………………………#5 MT

Approximate Floor Space Required…………………………102″ X 64″ X 66″
Approximate Weight…………………………………………..6,000 Lbs.

EQUIPPED WITH:
Hydraulic Operation Featuring: Single Lever Control, Infinitely Variable Table
Traverse, Automatic Feed, Plunge Feed, Rapid Wheel Advance & Retraction
Sparkout Timer
