Kingston LD 45-120 Flatbed CNC Lathe

Stock Number #S-3055

  • BrandKingston
  • ModelLD-45-120
  • Year2006
  • Equipment TypeFlat Bed CNC Lathe

Overview


2006 Kingston Model LD-45-120 Flat Bed CNC Lathe

Fanuc 0i-TC Control

Specifications:
Swing Over Bed 45″|
Maximum Cutting Diameter 27.5″
Distance Between Centers 120″
Width of Bed 28.5″
Spindle Bore 6″
Spindle Motor 50 hp. / 60 hp. (30 min)
Type of Spindle Nose A2-15
Speed Ranges   (2-Speed) 4 – 1,000 rpm
Turret (V8 Hydraulic) 8 Stations
Maximum Stroke (X-Axis) 22.0″
Maximum Stroke (Z-Axis) 120.0”
Rapid Traverse (X&Z Axis) 236 in/min
Servo Motors  (X-Axis) 5.3 hp.
(Z-Axis) 8.0 hp.
Ball Screw Size  (X-Axis) 1.41”, P6
(Z-Axis) 2.48”, P12

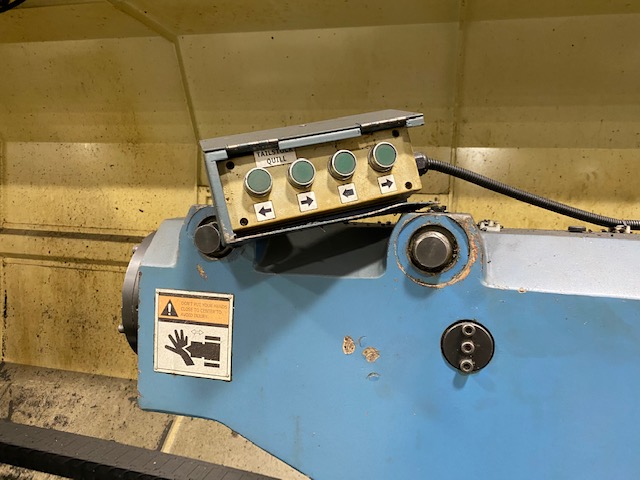

Tailstock Quill / Dia./ Travel   M.T. # 6, / 9.4”/ 7.1”

Shipping Dimensions 119″W x 269″L x 88.7″H
Machine Weight 33,242 lbs.
Electrical Requirements0 220V/3Ph/60Hz (100 kva)

Equipped With:

Hydraulic Unit
Box Way Cross Slide & Carriage
Front Chuck 30″ $ Jaw / Rear Chuck 20″ 3 Jaw
Additional 26″ Chuck Available
Center Rest 12″ Diameter
Manuals



Videos


Interested in this machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
