LeBlond Regal 15″ x 54″ Servo Shift Lathe

Out of Stock

Stock Number #S-569

  • BrandLeBlond Regal
  • Model15" x 54"
  • Equipment TypeServo Shift Lathe

Overview

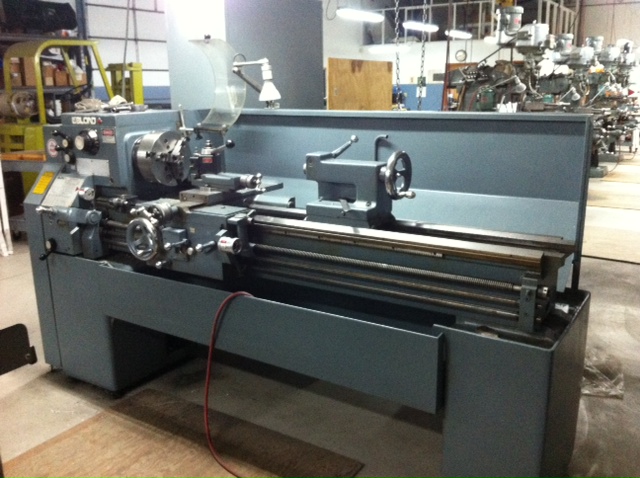

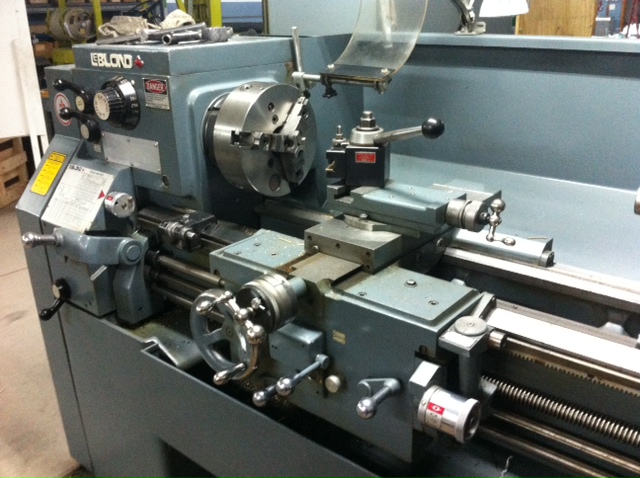

15″ x 54″ LEBLOND SERVO SHIFT ENGINE LATHE
MODEL: 15″ REGAL, S/N: 11C-1459 X-2867
NEW: 1979

SPECIFICATIONS:
SWING OVER BED ……………….. 15-1/2″
SWING OVER CROSS SLIDE ………… 9-1/2″
DISTANCE BETWEEN CENTERS ………. 54″
SPINDLE NOSE …………………. L1
HOLE THRU SPINDLE …………….. 2-17/64″
SPINDLE SPEED RANGE (12) ………. 45 – 1800 RPM
LONGITUDINAL FEED RANGE (48) …… .0018″ – .104″ IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) …… 2 – 112 TPI
THREADING RANGE METRIC (40) ……. 0.25 – 14 mm
TAILSTOCK SPINDLE TRAVEL ………. 5″
TAILSTOCK SPINDLE TAPER ……….. #4 MT
APPROX WEIGHT ………………… 3,000 LBS
APPROX DIMENSIONS …………….. 98″L x 40″W x 51″H
TAILSTOCK
10″ 3 Jaw Chuck
HARD & GROUND REPLACEABLE BEDWAYS
