Makino EDNC6 CNC EDM Machine – Sinker

Overview

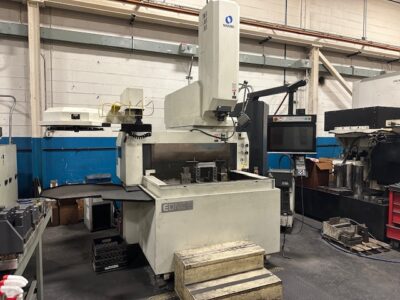

MAKINO EDNC6 CNC SINKER EDM

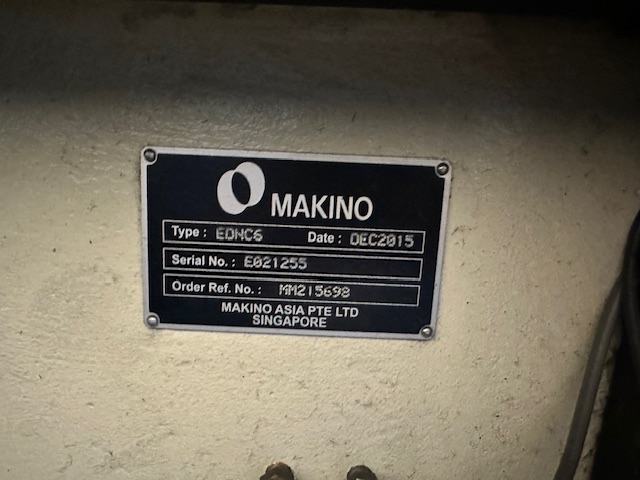

Model: EDNC6
Serial Number: E021255
New: 2015

SPECIFICATIONS:
Dielectric Capacity 211 Gallons
Machine Dimensions (L x W x H) 103″ x 92″ x 107″
Max Electrode Diameter 3.15″ / 7″
Max Electrode Length 10.2″
Max Electrode Weight 220 lbs.
Max Fluid Level 15.7″
Max Workpiece Weight 3300 lbs.
Platen to Table 27.5″
Power Supply 100 AMPS
Rapid Traverse Rates 78 IPM
Table Size 31.5″ x 21.7″
Table Surface Height 35″
Tools 16
Work Tank Size 43.3″ x 29.5″ x 17.7″
X-Axis 25.6″
Y-Axis 17.7″
Z-Axis 13.8″

EQUIPPED WITH:

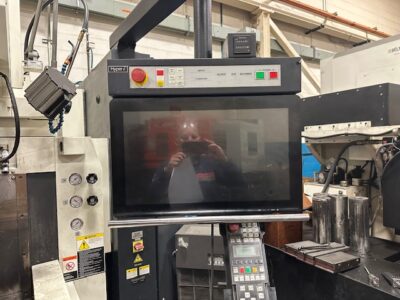

• Hyper i CNC Control
• 15″ Color TFT
• USB Port

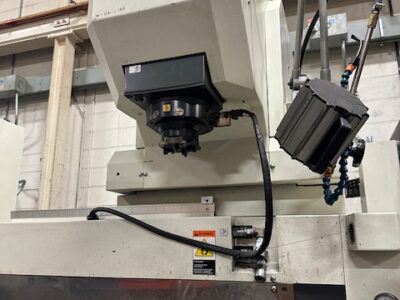

• MR Head (Built-In C-Axis)
• Three-Sided Programmable Rise and Fall Work Tank
• Dielectric Reservoir Inside Base Casting for Improved Thermal Stability and Reduced Floor Space

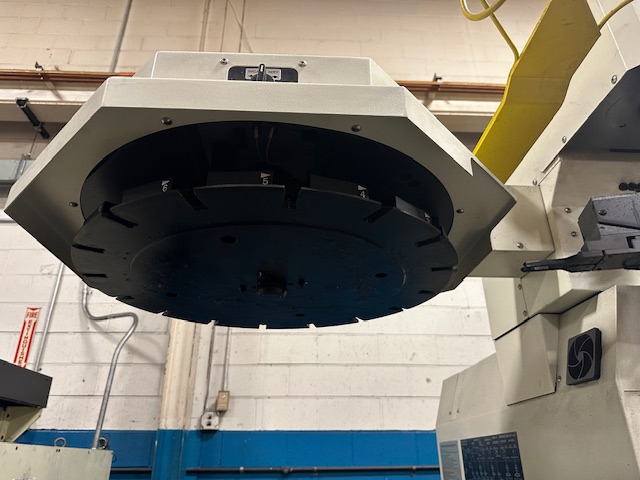

• 16 Position Electrode Changer (Erowa)
• HS-Rib Z-Axis Reduces Rough Machining Speeds of Small Size Electrode Details
• 1.5G Acceleration with Integrated Core-Cooled Ball Screw

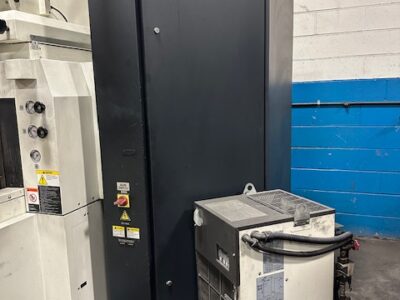

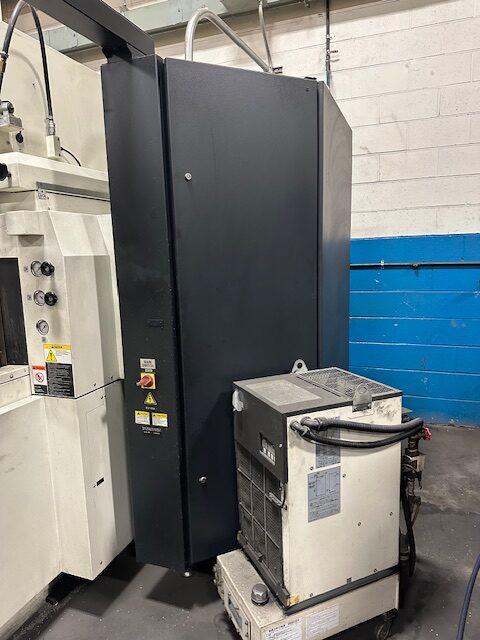

• Oilmatic Chiller Unit
• Dielectric Reservoir
• Remote Jog Handle

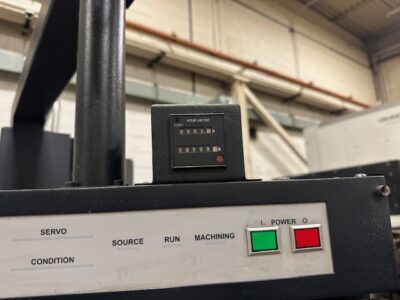

• Power On Hours
• Burning Hours
