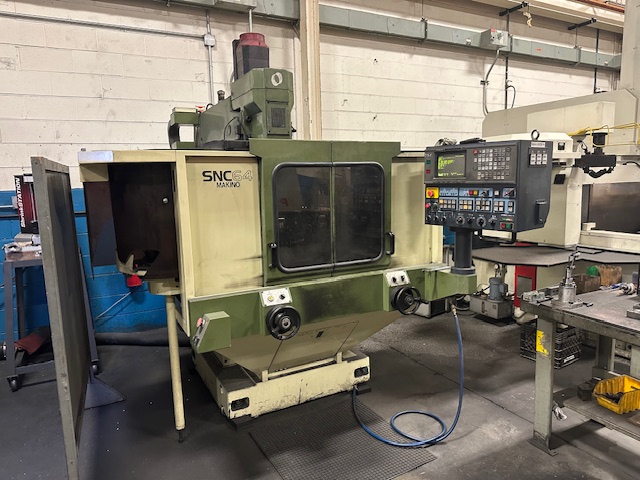

Makino SNC 64-A15 CNC Vertical Machining Center

Overview

Makino SNC 64 CNC Vertical Machining Center
20,000 RPM Spindle
Manufacturer: Makino
Model: SNC64

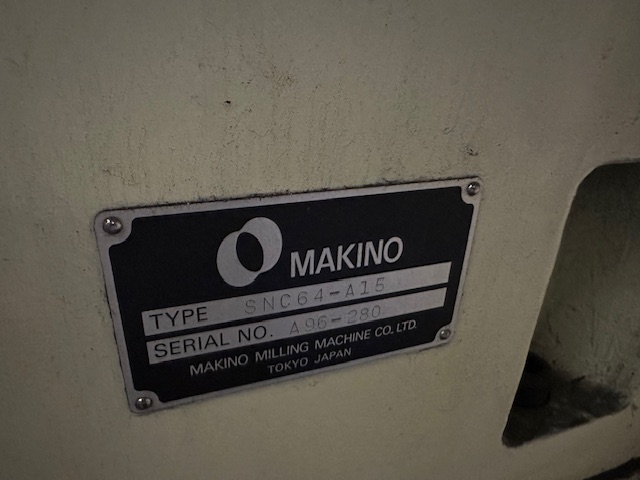

SERIAL NUMBER: A96-280

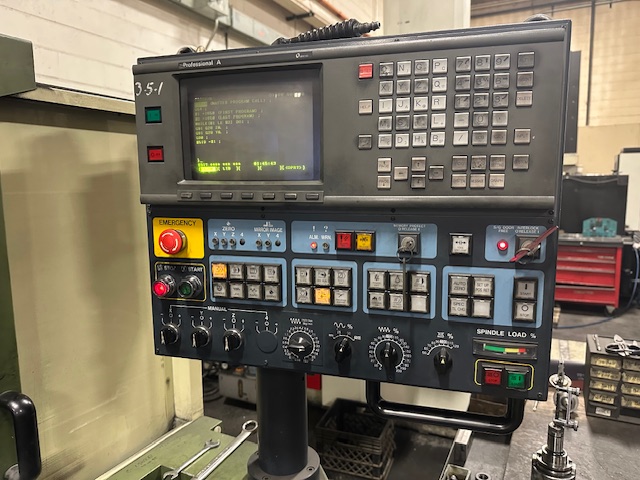

CONTROL: PROFESSIONAL A (FANUC)

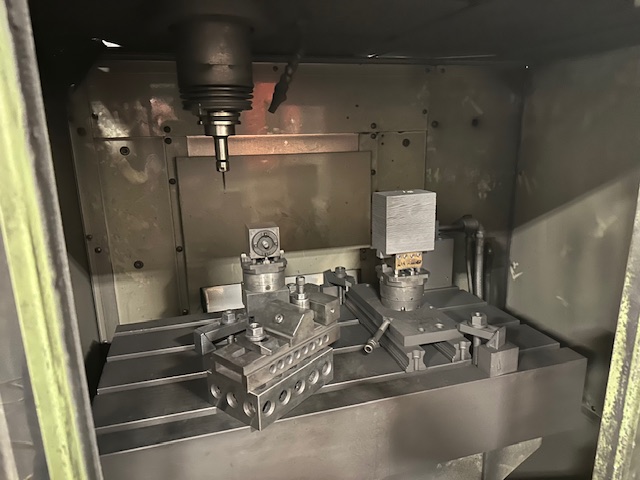

TABLE SIZE: 29.53″ X 15.75″
MACHINE TRAVELS (X / Y / Z): 23.62″ X 15.75″ X 15.75″
DISTANCE TABLE SURFACE TO SPINDLE NOSE: 9.84″ – 25.59″
DISTANCE SPINDLE CENTER TO COLUMN: 7.09″ – 22.83″
MAX TABLE LOAD: 550 LBS.
SPINDLE TAPER: CAT 40
SPINDLE SPEEDS: 300 – 20,000 RPM
SPINDLE DRIVE: 20 / 15 HP
RAPID TRAVERSE RATES (X / Y / Z): 629.92 IPM
MAX CUTING FEED RATE: 629.92 IPM
TOOL CHANGER CAPACITY: 15 STATION AUTOMATIC TOOL CHANGER
