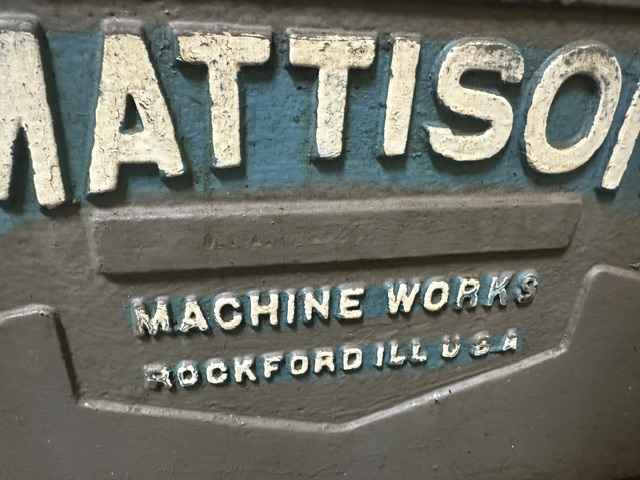

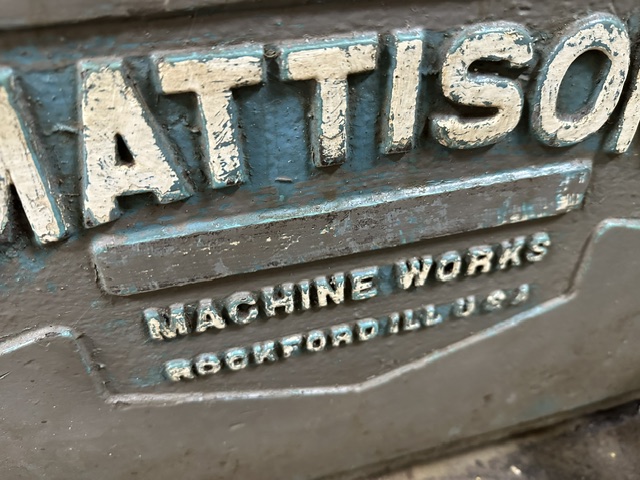

Mattison 24″ x 96″ Horizontal Spindle Reciprocating Surface Grinder

Overview

Mattison 24″ x 96″ Horizontal Spindle Reciprocating Surface Grinder
Serial Number: 22335
New: Rebuilt 2018

SPECIFICATIONS:
TABLE SIZE: 24″ X 96″

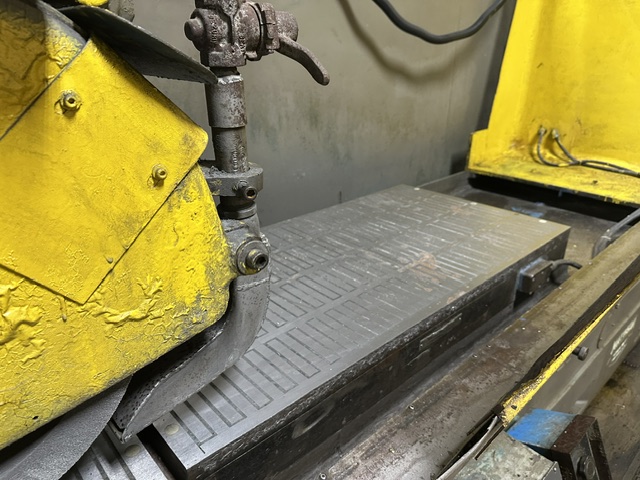

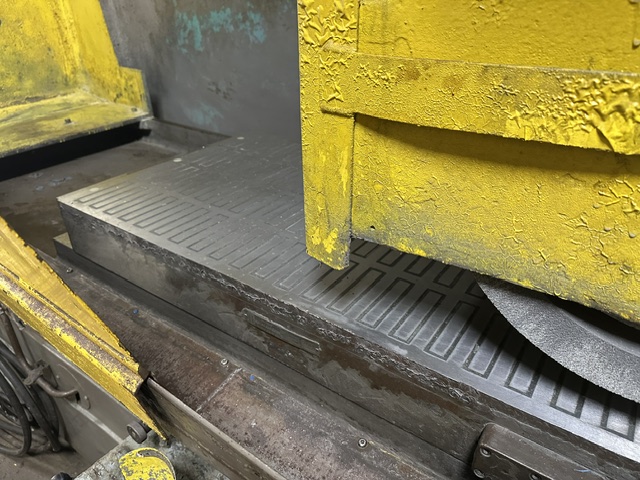

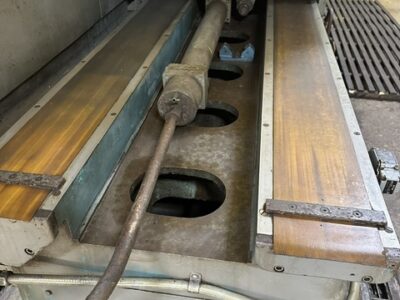

MAGNETIC CHUCKS: 2
LONGITUDINAL TRAVEL:108″
TABLE SPEED: VARIABLE UP TO 125 FPM
CROSS TRAVEL: 24″
AUTO CROSS FEED INCREMENT: 1 / 32 TO 3 IPM
AUTO DOWN FEED INCREMENT: 004 TO .0002 IPM
WORKING HEIGHT UNDER WHEEL: 32″
STANDARD SIZE WHEEL: 20″ X 10″ X 6″ FACE
WHEEL SPEED: 880 RPM
MAIN MOTOR: 30 HP 230/460

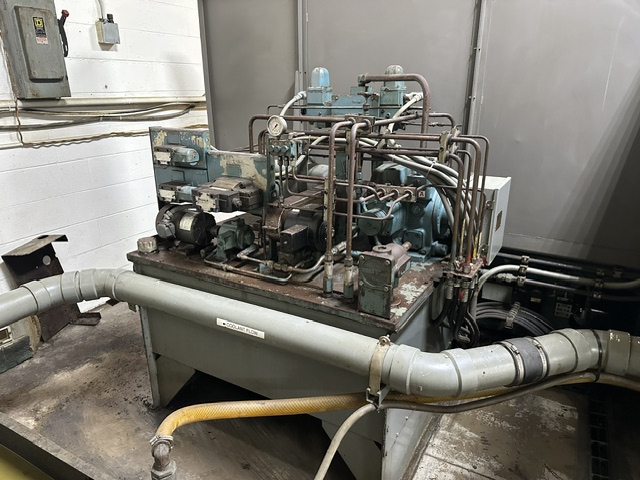

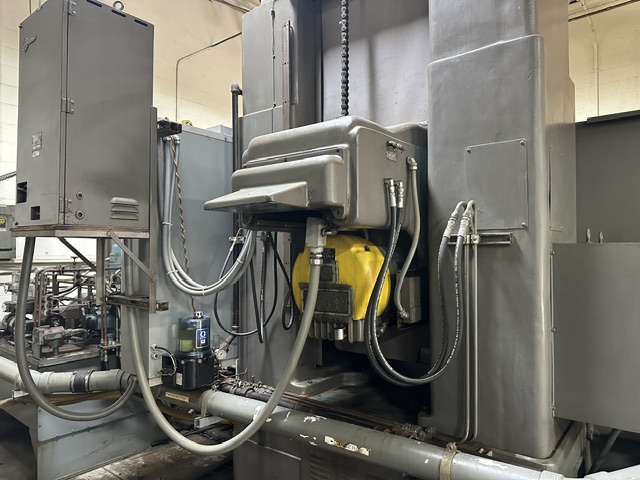

FREE STANDING HYDRAULIC SYSTEM
APPROXIMATE DIMENSIONS: 28′ L TO R X 9’6″ F TO B X 11’3″ HEIGHT
MACHINE WEIGHT: 50,000

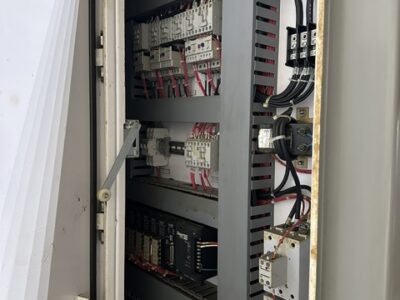

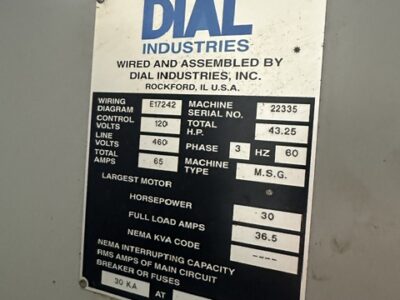

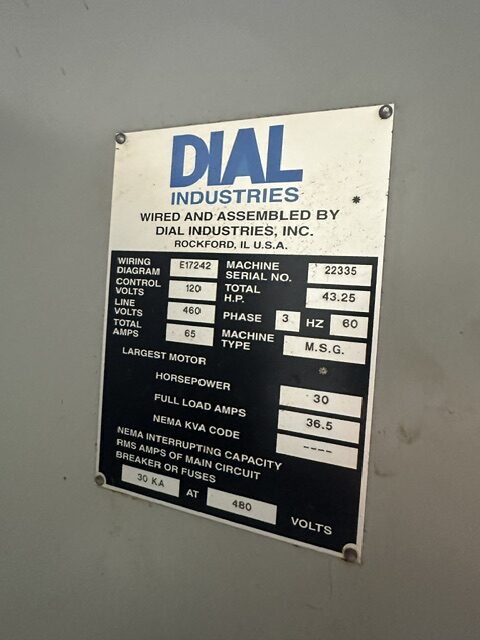

460/3/60 ELECTRICS

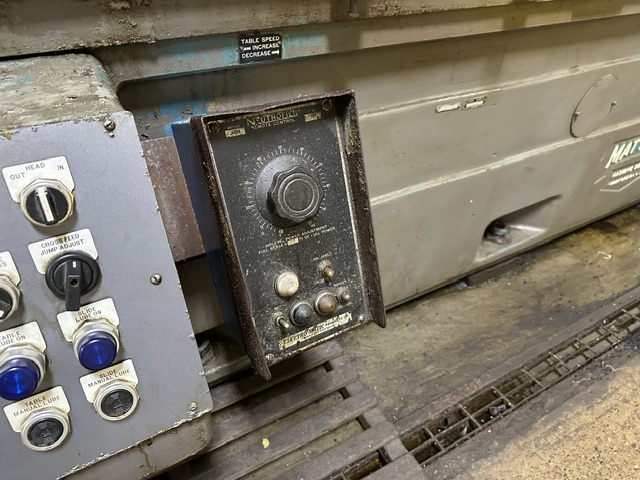

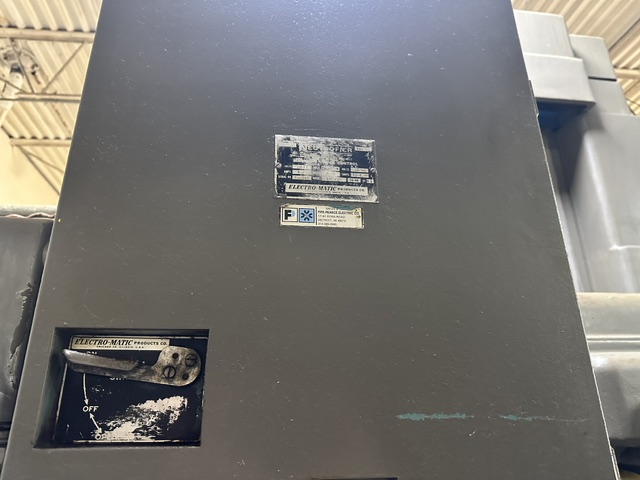

EQUIPPED WITH: DRESSER, WHEEL RAPID TRAVERSE, ELECTROMATIC NEUTROFIER

MACHINE REBUILD By DIAL MACHINE:
02/26/2015 – Wheelhub refurbished and Spindle rebuilt
04/20/2018 – Complete rebuild at Dial Industries
New pressure compensated flow control valve
New coil cord for magnetic chuck

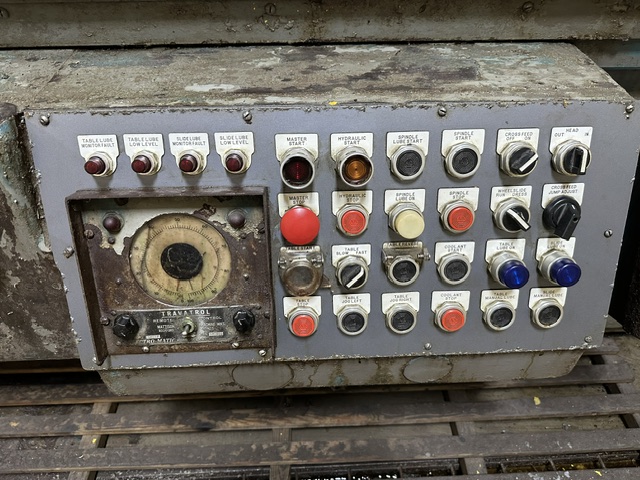

Retrofit amplifier for the wheelside travatol unit

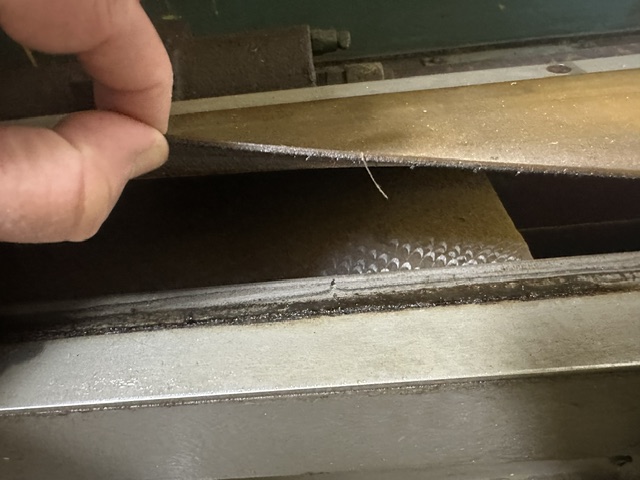

New telescoping guard
