Stock Number #S-1731
Moore 450-CP CNC Jig Grinder
Serial Number: G-4397
New: 1997

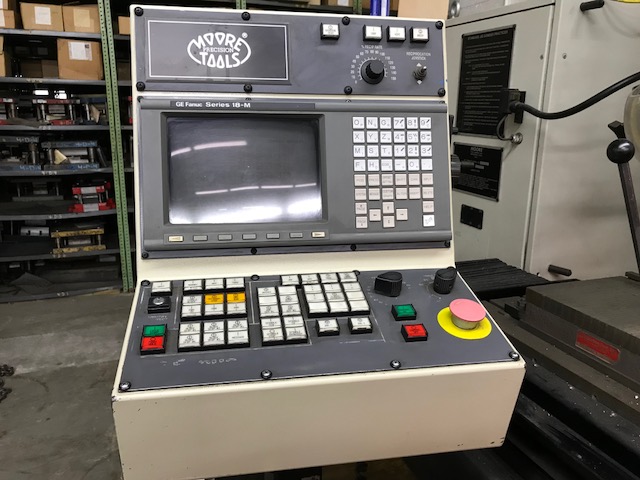

Fanuc 18-M Control
SPECIFICATIONS:
Capacity
Table Working Surface: 11″ x 24″
Table Travel: (X Axis) 18″
Table Carriage Travel: (Y Axis) 11″
Spindle Housing Vertical Travel: (W Axis) 12-5/8″
Spindle Quill Vertical Travel: (Z Axis) 3-1/2″
( Z-axis is not a servo axis. You can program a capture range that it will reciprocate between)
Table Top to Wheel Collet: 2 to 18″
Angular Adjustment of Spindle: +/- 1-1/2 Degrees
Speeds & Feeds
Traverse Speed: ( X,Y,W & Z) 60 IMP
Main Spindle Speed: 2 – 300 RPM
Reciprocation: (@25mm stroke) 2-190 cycle/min
Grinding Wheel Speeds:
Grinding Hole Diameter Capacity: 1/64 – 5″
Magnetic Chuck & Rotary Magnetic Chuck
