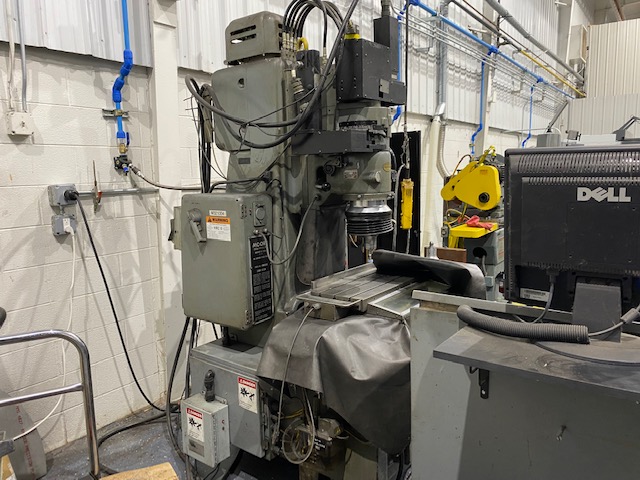

Moore / NASA #3 4 Axis CNC Jig Grinder

Stock Number #2189

  • BrandMoore / NASA
  • Model#3 4 Axis CNC Jig Grinder
  • Serial NumberG 924 / NASA 0200
  • ConditionExcellent
  • Equipment TypeCNC Jig Grinder

Overview


Moore / NASA #3 4 Axis CNC Jig Grinder

SPECIFICATIONS:
Table size:  11″ X 24″
Table travels:
Longitudinal – 17.5″
Cross – 10.5″
Table to wheel collet:  18″ max.,  2″ min.
Spindle to column ways:  10″
Spindle travel (U Axis):  3 5/8″

MACHINE EQUIPPED WITH:
Fagor 8030 4 Axis (X,Y,C and U) CNC controls, Nasa Model AGS-3
Roller bearing ways on X and Y Axes
Moore 40,000  RPM spindle
Electric motors and control

Dimensions:  FB X RL – 90″ X 85″
Height:  102″
Est. weight:  4900#
