Okamoto 12″ x 24″ Automatic Horizontal Surface Grinder

Overview

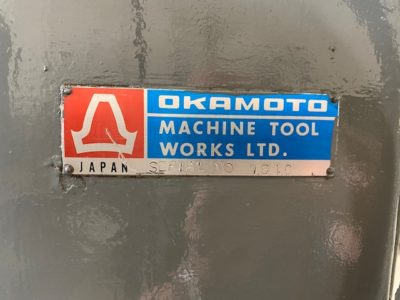

Okamoto Accugar 124N Accugar Surface Grinder

SPECIFICATIONS:
Maximum Grinding Length and Width: 24″ x 12″
Maximum Vertical Clearance Under 12″ Wheel: 13.7″
Maximum Weight of Workpiece: 930 Lbs.
Table Size: 23.7″ x 11.8″
Maximum Longitudinal Travel: 29.5″
Maximum Cross Travel: 13.6″
Hydraulic Feed of Table – Longitudinal: 1.0 to 100 RPM
Hand Feed Per Revolution of Handwheel: 1.85″

Cross Movement of Table
Hydraulic Intermittent Feed: 0.02″ to 0.8″
Hydraulic Continuous Feed: 4 to 40″/Min.

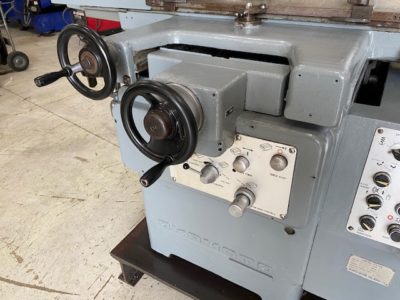

Hand Feed Per Revolution Handwheel: .25″
Graduations of Handwheel: .001″

Vertical Movement of Wheelhead
Automatic Feed Per Table Stroke: .0001″ to .0015″
Hand Feed Per Revolution of Handwheel: .05″
Power Elevation On Grinding Wheel
Grinding Wheel: 12″ x 1.5″ x 5″
Grinding Wheel Speed: 1,800 RPM

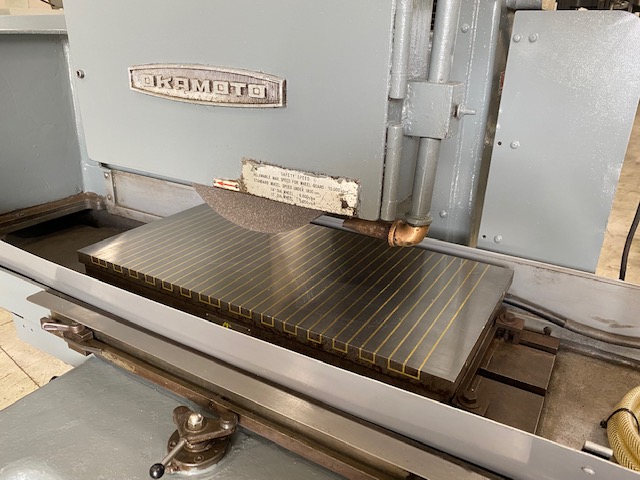

12″ x 24″ Electro-Magnetic Chuck

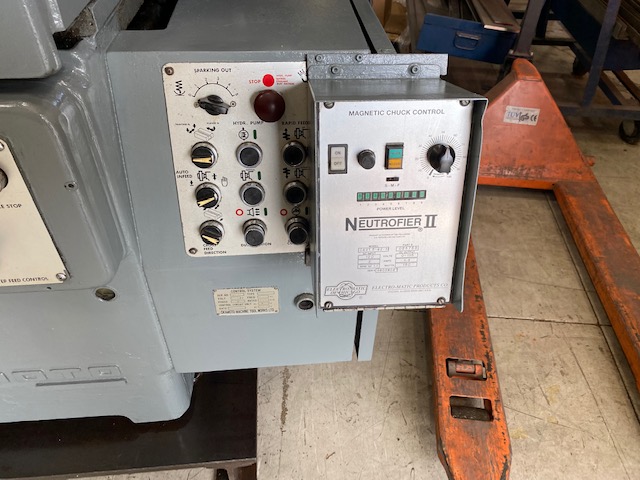

Neutrofier II Chuck Control

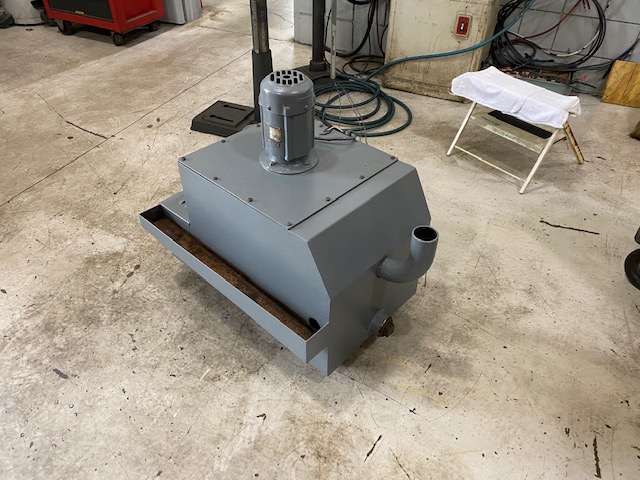

Coolant Pump & Tank

Weight: Approx. 5,000lbs
Dimensions: 88″ x 66″ x 77″ Height
