Okamoto PSG-6 Horizontal Spindle Rotary Surface Grinder

Overview

Okamoto Horizontal Spindle Rotary Surface Grinder
Model: PSG-6
Serial Number: 1098
New: 1984

CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK: 24″
MAXIMUM SWING INSIDE COOLANT GUARD: 28″
STANDARD WHEEL SIZE: 14″ X 1-1/2″ X 5″ HOLE
MAXIMUM HEIGHT TO CENTER OF WHEEL: 15″

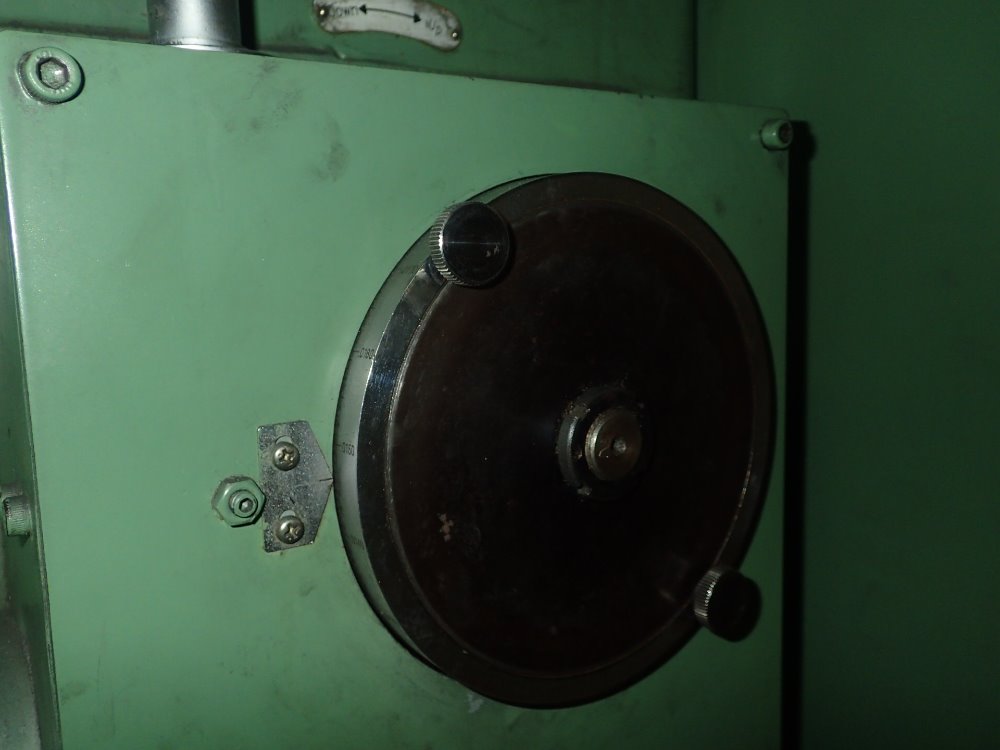

WHEEL ELEVATION BY HAND OR POWER
MAXIMUM ANGLE-CONVEX OR CONVEX: 3 DEGREES
TABLE SPEEDS: 30 – 100 RPM
TABLE TRAVEL, MAXIMUM: 16″
TABLE TRAVEL RATE: 0 – 15 FPM

EQUIPPED WITH:
24″ DIAMETER MAGNETIC CHUCK
VARIABLE MAGNETIC CHUCK CONTROL
10 HP SPINDLE DRIVE MOTOR
3 HP HYDRAULIC SYSTEM MOTOR
SPARKOUT TIMER
TABLE TRIP DOGS
SPLASH GUARDING
ELECTRICAL PRINTS
MACHINE WEIGHT APPROX 7,800LBS
