Parker Majestic 16C Universal OD / ID Grinder

Out of Stock

Stock Number #2104

  • BrandParker Majestic
  • Model16C
  • Serial Number2208-16C-75
  • ConditionReconditioned 2020
  • Equipment TypeUniversal OD / ID Grinder Reconditioned

Overview

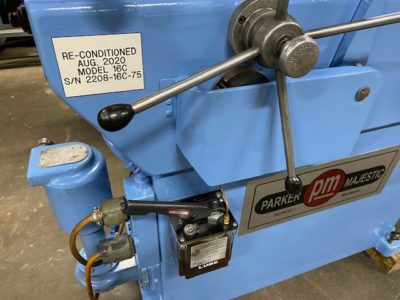

Parker Majestic 16C Universal OD / ID Grinder – Reconditioned
Serial No. 2208-16C-75
Reconditioned – 2020

SPECIFICATIONS:

Swing Over Table………………………………………………….12″
Distance Between Centers…………………………………………..16″
Table Working Surface…………………………………………5″ x 38″
Power Table with Reciprocator………………………………………Yes
Tabel Swivel………………………………………………..7 Degrees
Table Travel……………………………………………………..24″
Cross Feed Travel………………………………………………3-1/2″
Cross Feed Adjustment………………………………………………4″
Cross Feed Handwheel Graduations………………………………..0.0005″
Cross Feed Precision Dial Graduations………………………….0.000050″
Grinding Wheel Size……………………………………….10″ Diameter
Grinding Wheel Bore Size………………………………………..3″
Wheelhead Motor…………………………………………….1-1/2 H.P.
Headstock Swivel……………………………………….0 to 90 Degrees
Infinite Variable Headstock Spindle Speeds………………….20 to 225 RPM
Hole Thru Spindle………………………………………………1-1/4″
Headstock Center Taper………………………………………..#6 Jarno
Tailstock Center Taper………………………………………..#6 Jarno
Spindle Motor………………………………………………1-1/5 H.P.
Electrics………………………………………………..220/3/60

Approximate Dimensions……………………………….69″L x 37″L x 57″H
Approximate Weight………………………………………….3,750 Lbs.

EQUIPPED WITH:
Swing-Around Internal Grinding Attachment with I.D. Spindle ( 15,000 Max RPM )
Power Table Option with Reciprocator Feature
Tailstock Center and Workhead Center
Parker-Majestic Super-Precision Spindle for Wheelhead
Parker-Majestic Live/Dead Workhead, Spindle Model No. 2300-3
Workhead Accepts 5C Collets
Coolant System, Self-Contained, in the Base of the Machine
One-Shot Lubricator

Reconditioned 2020
Table, Bed & Infeed Slides Ways – Ground, Scraped & Flaked
New Leadscrew & Nut for the Infeed Slide
New Lubrication Pump, Lines & Meters
Cleaned, Painted & Cycled
