Parker Majestic No. 1 OD Universal OD Cylindrical Grinder

Overview

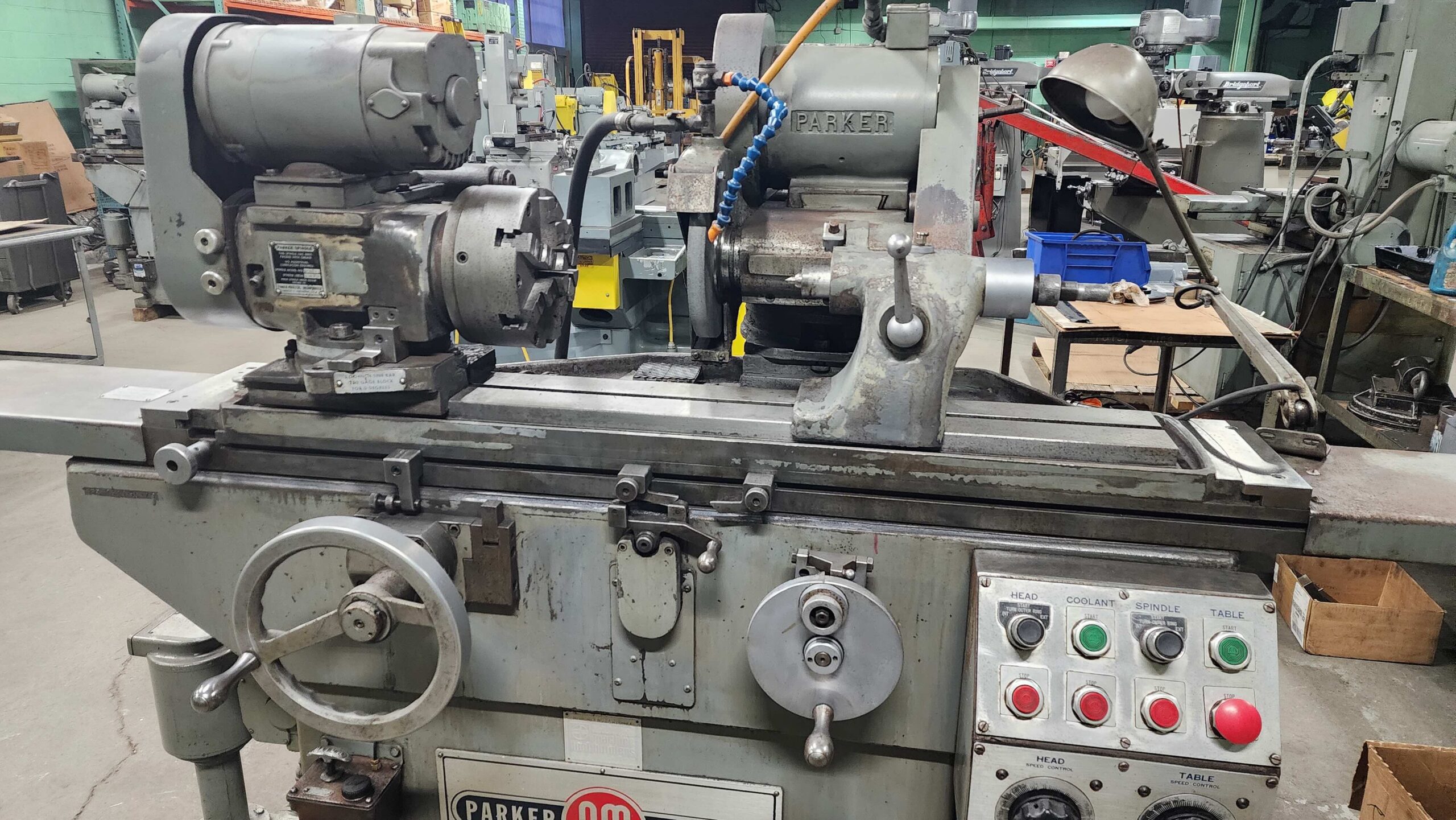

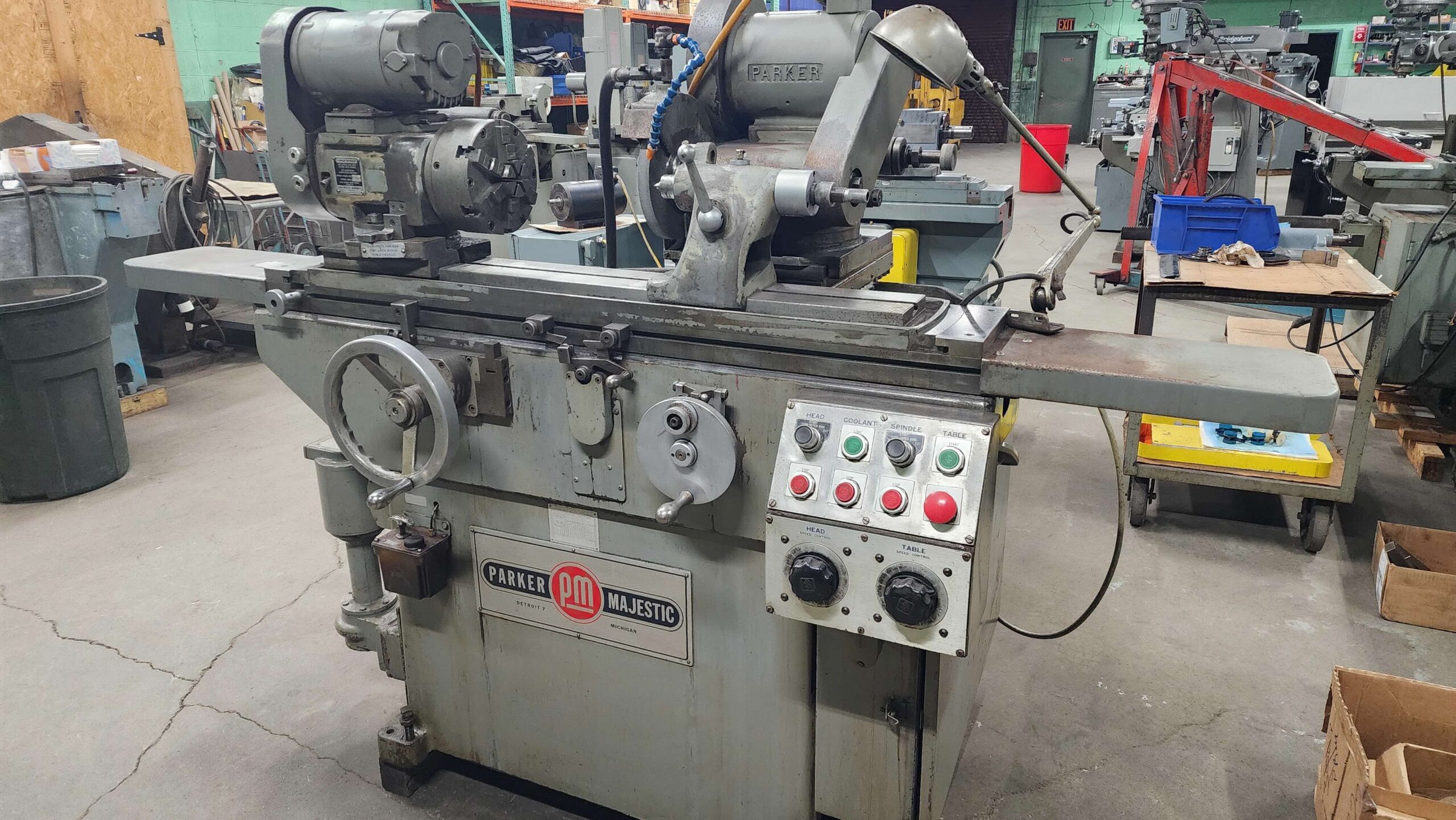

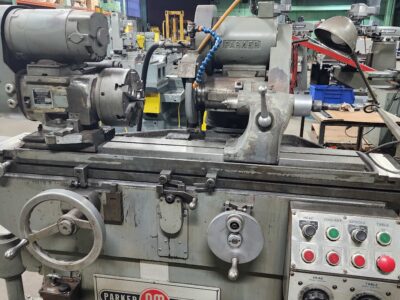

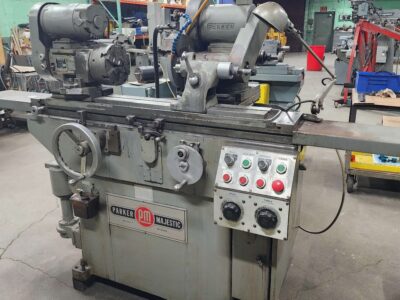

12″ X 20″ PARKER-MAJESTIC NO. 1 UNIVERSAL CYLINDRICAL GRINDER

” MADE IN USA “

SPECIFICATIONS:
SWING OVER TABLE ……………………… 12″
DISTANCE BETWEEN CENTERS ………………. 20″
VARIABLE SPEED POWER TABLE FEED
TABLE SWIVEL …………………………. 7 DEGREES
CROSS FEED TRAVEL …………………….. 3- 1/2″
CROSS FEED ADJUSTMENT …………………. 4″
CROSS FEED HANDWHEEL GRAD. …………….. 0.0005″
CROSS FEED PRECISION DIAL GRAD …………. 0.000050″
GRINDING WHEEL SIZE …………………… 10″ DIAMETER
GRINDING WHEEL BORE SIZE ………………. 1- 1/4″
WHEELHEAD MOTOR ………………………. 1- 1/2 H.P.
HEADSTOCK SWIVEL ……………………… 0 TO 90 DEG.
INF. VARIABLE HEADSTOCK SPINDLE SPEEDS ….. 0 TO 240 RPM
HOLE THRU SPINDLE …………………….. 1- 1/4″
HEADSTOCK CENTER TAPER ………………… #6 JARNO
TAILSTOCK CENTER TAPER ………………… #6 JARNO
SPINDLE MOTOR ………………………… 2 H.P.

APPROX. MACHINE WEIGHT ………………… 2,400 LBS.

EQUIPPED WITH:
8″ (6) JAW CHUCK
VARIABLE SPEED POWER TABLE FEED
TAILSTOCK CENTER & WORKHEAD CENTER
PARKER-MAJESTIC LIVE/DEAD WORKHEAD
5″ “SINE BAR” OPTION FOR THE WORKHEAD
WORKHEAD ACCEPTS 5C COLLETS
WORKHEAD SPINDLE SPEEDS ARE INFINITELY VARIABLE
.00005″ CROSS FEED DIAL GRADUATIONS
DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
COOLANT SYSTEM IN BASE
ONE-SHOT LUBRICATOR
PARKER-MAJESTIC SUPER-PRECISION SPINDLE FOR WHEELHEAD
1.5 H.P. WHEELHEAD MOTOR, MADE BY PARKER-MAJESTIC
