SIP MP-3K JIG BORER MACHINE

Overview

SIP BRIDGE TYPE ULTRA-HIGH PRECISION JIG BORER
MADE IN SWITZERLAND

MODEL: MP-3K
S/N: 7111

WORKING RANGE:
Table Working Surface: 20-1/2Inch x 15Inch
Longitudinal Travel of Work Table: 18Inch
Transverse Travel of Spindle Saddle: 14Inch
Maximum Distance from Table Top to Spindle End: 24-1/2Inch
Free Space Between Uprights: 23-1/2Inch
SPINDLE:
Internal Taper: Morse 2
External Taper: Special Taper SIP 2E

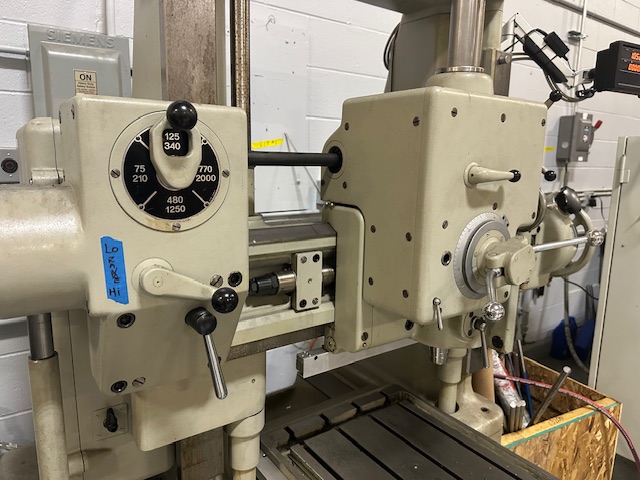

(8) Spindle Speeds: 75, 125, 210, 340, 480, 770, 1250 & 2000 RPM
(6) Power Feeds: 0.0008Inch, 0.0016Inch, 0.0025Inch, 0.0035Inch, 0.005Inch & 0.007Inch
Drilling Capacity (In Cast Iron): 1Inch
Boring Capacity: 4Inch
Spindle Quill Travel: 6Inch
Travel of Vertical Slide: 15-3/8Inch
Overall Size: 60Inch L-R x 69Inch F-B x 82Inch H on 3Inch Blocks
Weight: Approx. 4,000 Lbs.

EQUIPPED WITH:
Magnescale 2-Axis Digital Readout
Glass Scales
Presently Wired for 3 Phase, 60 Cycle, 220 Volts
