14″ x 30″ Parker Majestic 1C OD / ID Combination Grinder

Stock Number #2170

  • BrandParker Majestic
  • Model14" x 30" 1C OD / ID Combination
  • Serial Number6314 - 1C - 99
  • Year1999
  • ConditionExcellent
  • Equipment TypeOD / ID Gronder

Overview


Parker Majestic 14″ x 30″ 1C OD / ID Combination Cylindrical Grinder
Model: 1C
Serial Number: 6314-1C-99
New: 1999

GENERAL CATALOG SPECIFICATIONS
OVERALL DIMENSIONS (WXDXH) 104 IN X 41 IN X 46 IN
MACHINE WEIGHT (NET) 5200 LBS (2358 KG)
MAX PART DIAMETER 14 IN (355.6 MM)
DISTANCE BETWEEN CENTERS 30 IN (762 MM )
WORKTABLE SIZE 5 IN X 50 IN (127 MM X 1270 MM)
TABLE SWIVEL 7 DEGREES
WORKHEAD SPINDLE
SPEED 0-1000 RPM
SPINDLE NOSE PARKER TAPER – ACCEPTS 5C COLLETS
DRIVE MOTOR 1 HP@1,750/200 RPM
MANUALLY PIVOTING WORKHEAD (B-AXIS) – ACCURACY 0.0005 DEGREES
POWER
POWER REQUIREMENT 230, OR 480 VAC – 50/60 HZ
POWER CONSUMPTION 6 KVA
MAX. CURRENT 30 A
TOTAL POWER RATING 10 HP (7.5 KW)
TABLE AXIS
MANUAL AND VARIABLE SPEED ELECTRIC TABLE DRIVE

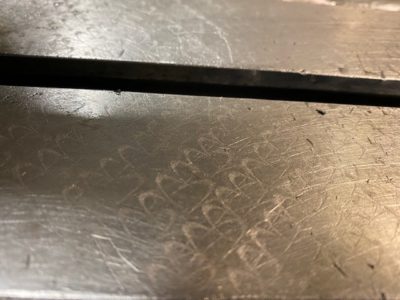

HAND SCRAPED TURCITE COATED VEE & FLAT WAY SYSTEM
TOTAL TRAVEL 30 IN (762 MM)
TABLE FEED MOTOR 3/4 HP @ 1,750/400 RPM
TABLE SWIVEL 7 DEGREES
CROSSFEED AXIS
MANUAL DRIVEN BALLSCREW
PRECISION ROLLING ELEMENT LINEAR MOTION BEARING
CLOSED LOOP POSITIONING WITH HEIDENHAIN GLASS SCALE FEEDBACK
TOTAL TRAVEL 7 IN (177.8 MM)

EQUIPPED WITH
SWING AROUND OD / ID UNIVERSAL GRINDING HEAD
14″ DIAMETER GRINDING WHEEL CAPACITY

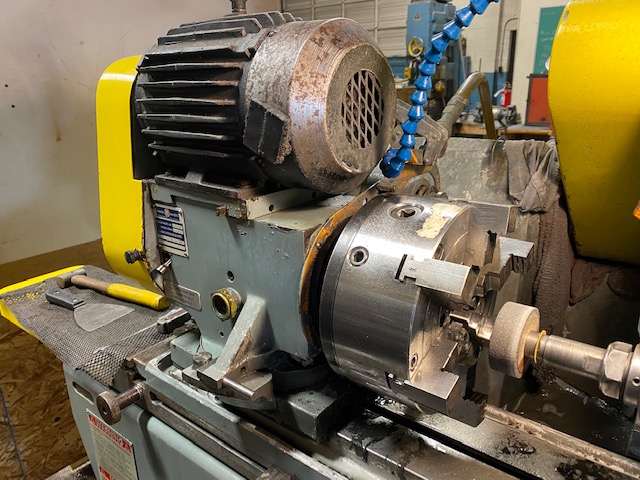

8″ (6) JAW CHUCK
5″ SINE BAR HEADSTOCK

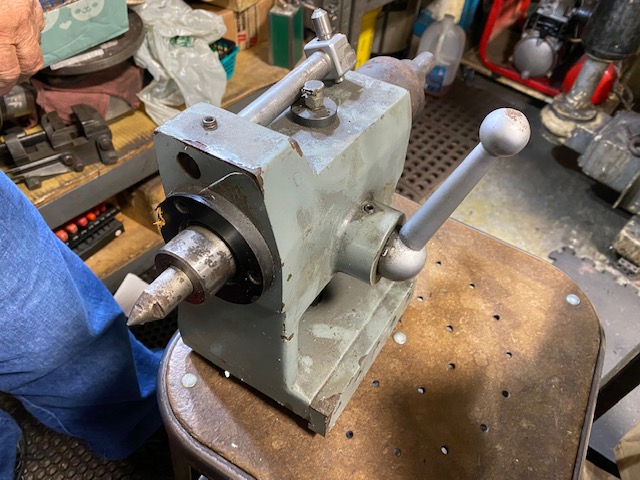

MANUAL TAILSTOCK
TABLE MOUNTED DRESSER
DANFOSS VTL 2000 VARIABLE SPEED DRIVES
COOLANT PUMP & TANK

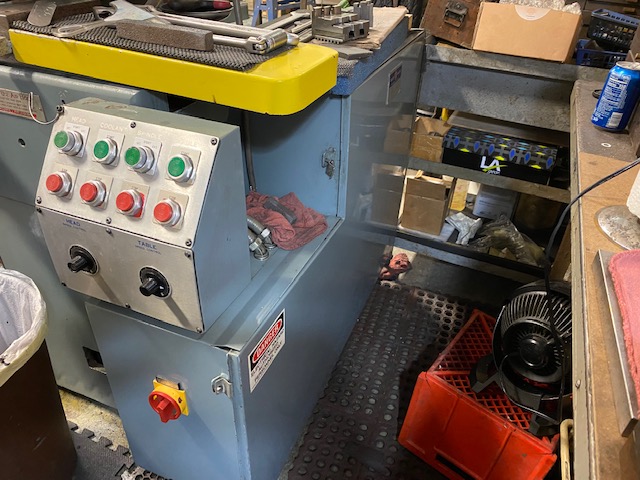

ATTACHED ELECTRICAL PANEL 22/3/60
ELECTRICAL DRAWINGS & MANUALS

MACHINE IS IN EXCELLENT CONDITION – (1) ONE OWNER – ORIGINAL SCRAPING & PAINT
SMALL ONE MAN JOB SHOP
