8″ x 16″ Chevalier Universal Cylindrical Grinder

Out of Stock

Stock Number #2175

  • BrandChevalier
  • ModelCGP-618
  • Serial Number2040317
  • Year2010
  • ConditionExcellent
  • Equipment TypeCylindrical Grinder

Overview

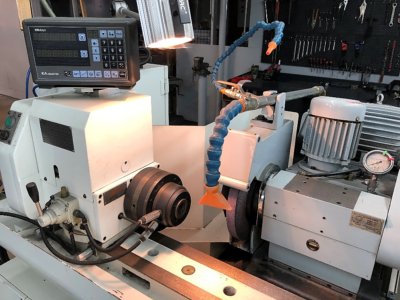

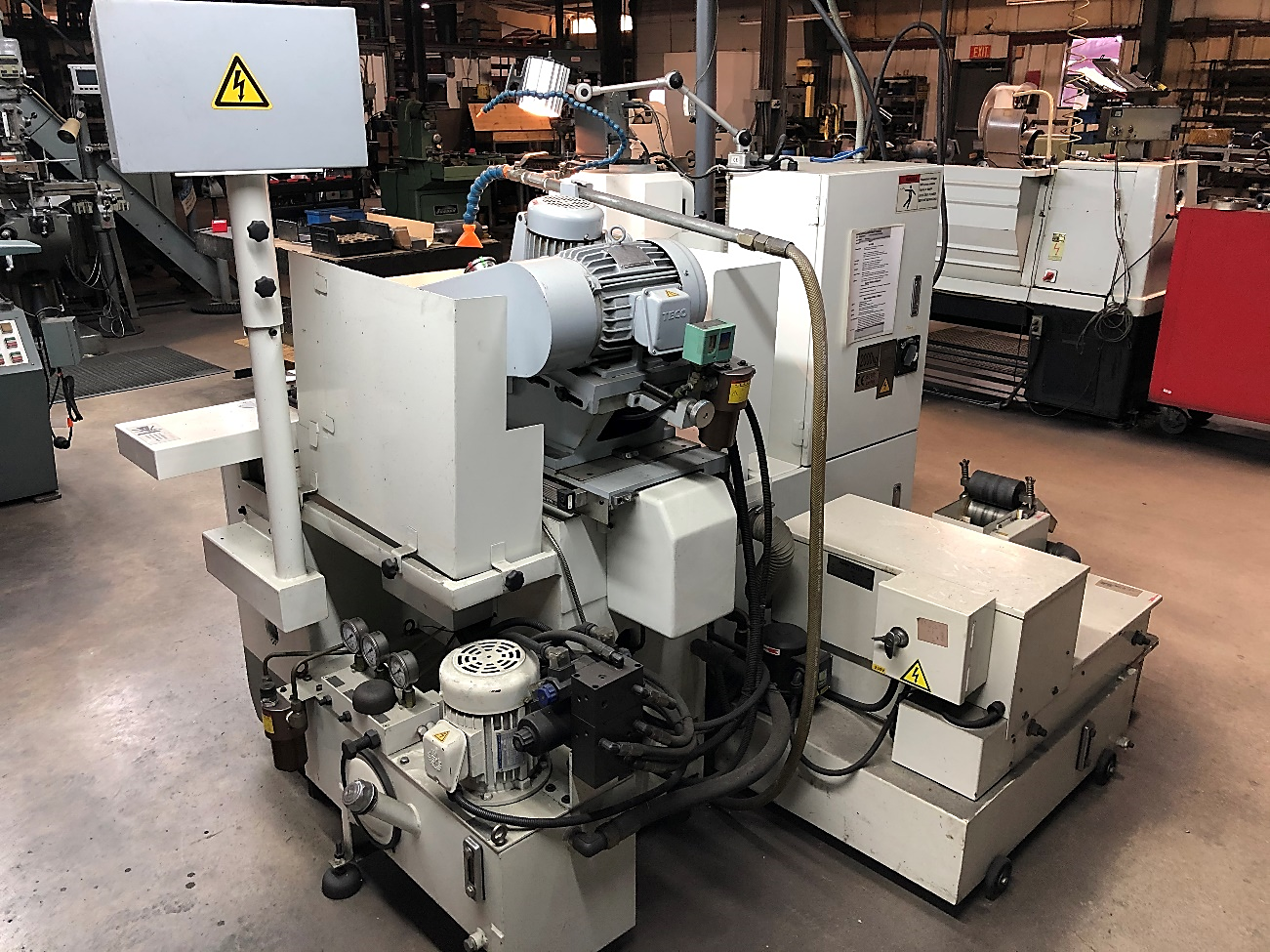

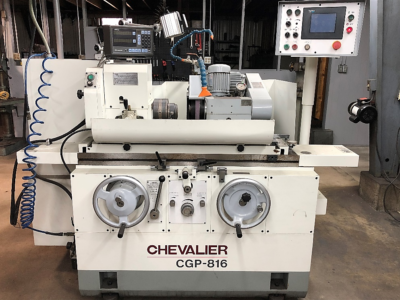

Chevalier Universal Cylindrical OD Grinder

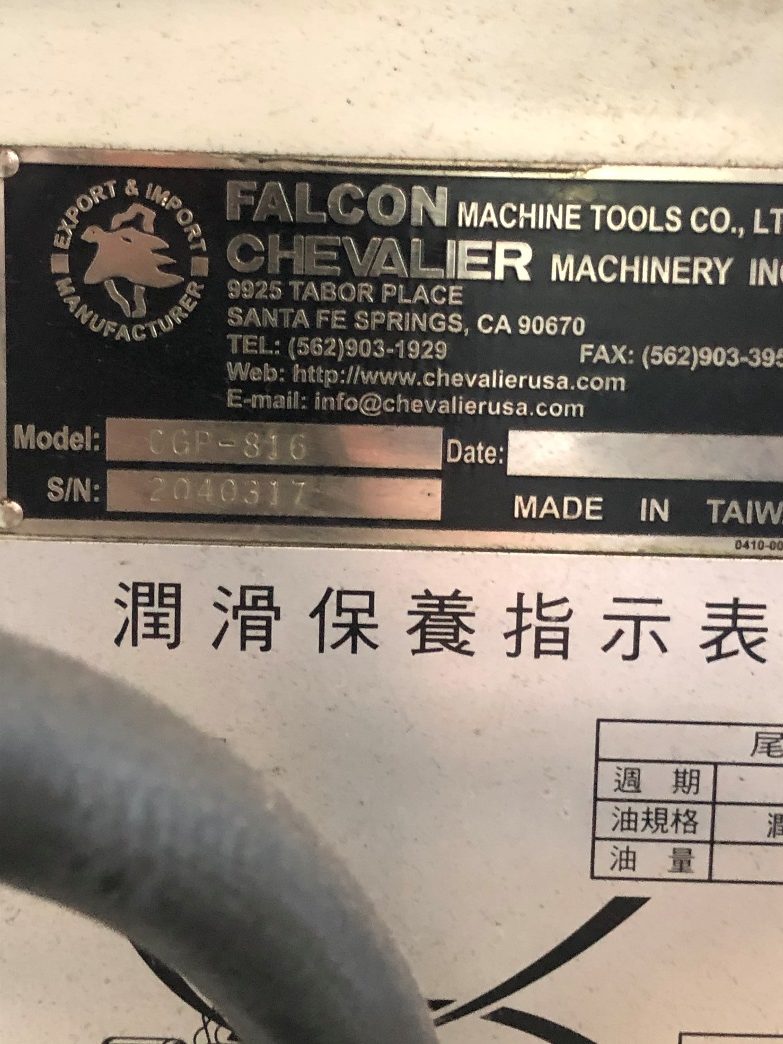

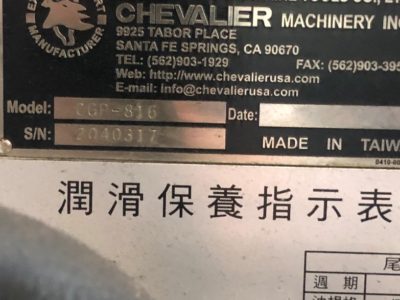

Model: CGP-816
Serial Number: 2040317
Condition: Like New
Operating Hours: 142
Purchased New in 2010

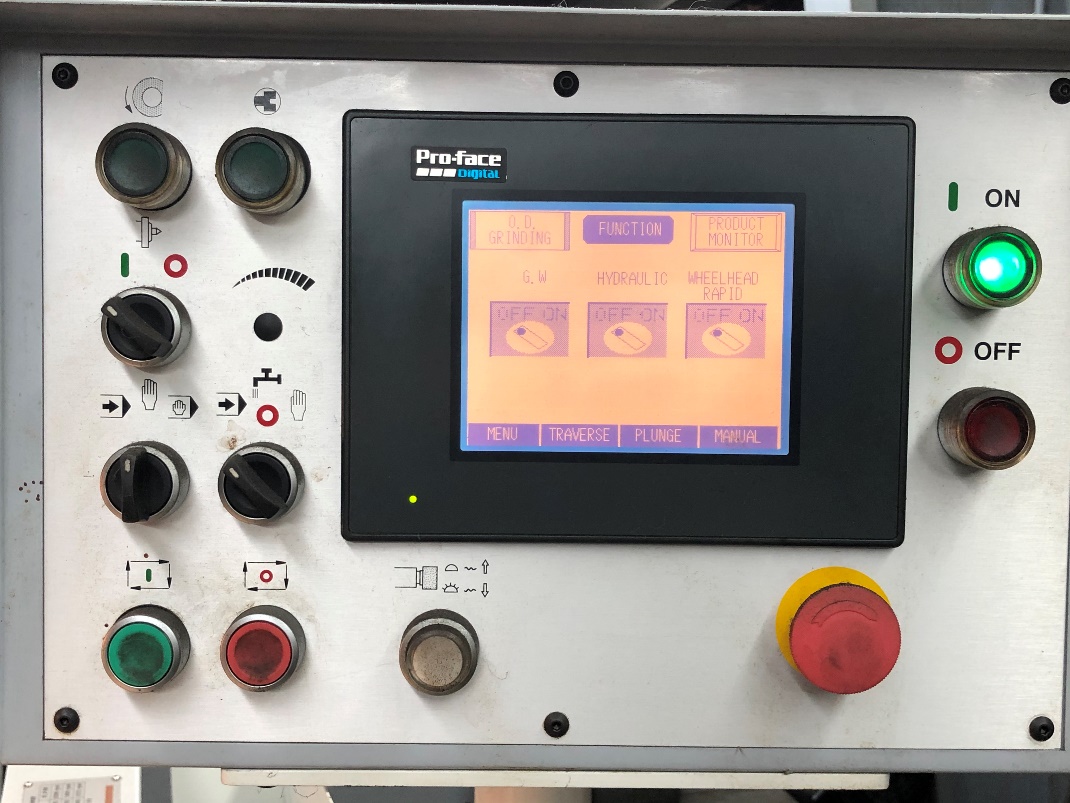

Control Type: Mitsubishi Pro-Face Digital w/ DRO
PLC controls the In-Feed Functions, Rapid, Rough & Fine Feeds & Retraction at end of Cycle
Spindle Head: MT:3 / +
Attachment for Chuck
1/4 HP Coolant Pump System
Magnetic Coolant Separator 20L
Paper Band Filter 20L

Table Swivel Angle: -3º, +12º
Distance between Centers: 15.7º
Swivel over Table: 7.9”
Max. load between centers: 132lbs
Max. External Grinding: 7.09”
Wheel Head Swivel Angle: ±30º
Wheel Head Manual Distance: 5.2”

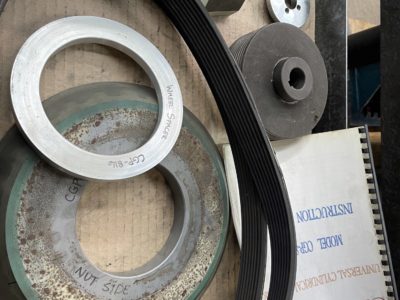

Wheel Size: Ø12” OD x 1.5” W x Ø5” ID
Wheel Speed: 60Hz: 2,495 RPM
Wheel Spindle Motor: 3 HP
Spindle Speed: 10 – 300 RPM
Workhead Spindle Motor: 1HP
Manual Tailstock

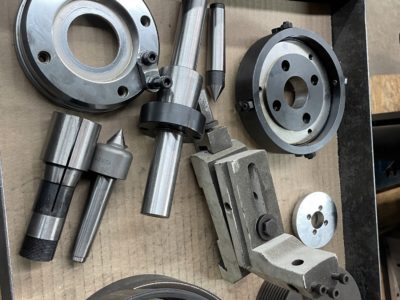

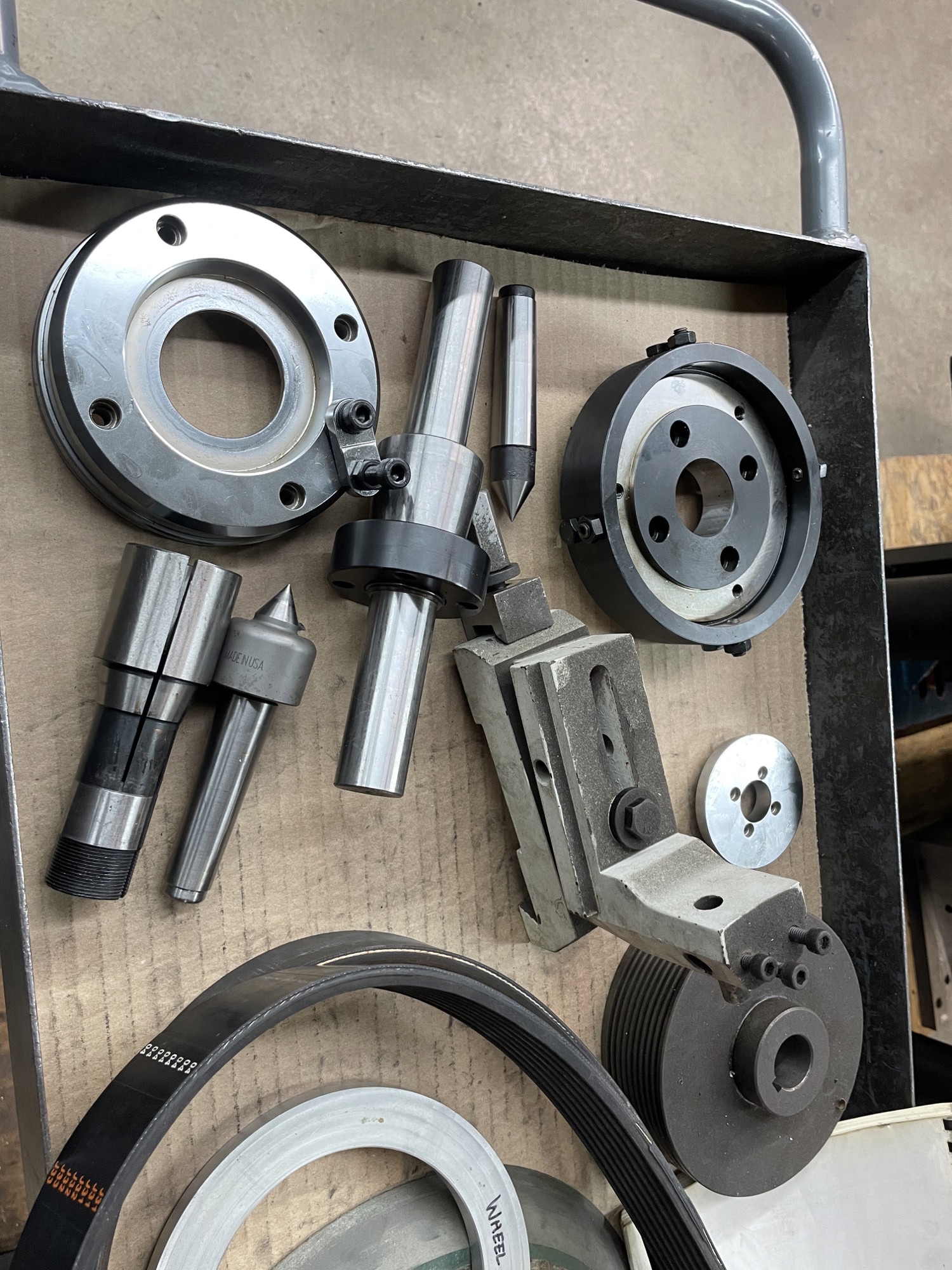

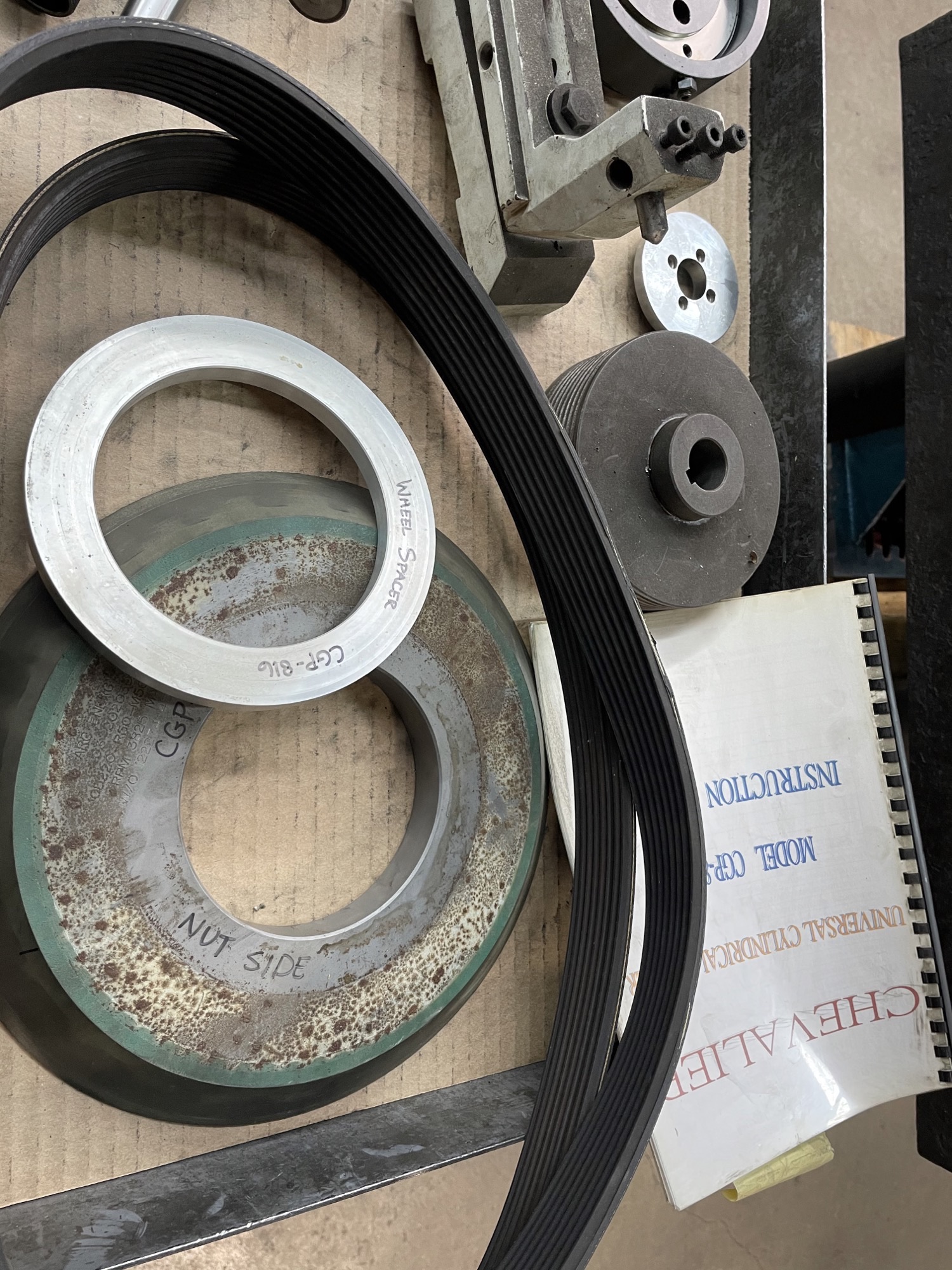

Currently Set Up with a Collet Fixture on Headstock, Centers available with Machine

Power: 23A/230V, 3-Phase
Overall Dimensions: 86.6”L x 70”W x 60.7”H
Weight: 4,400lbs
