Belmont MX-166W CNC Sinker EDM Machine

Overview

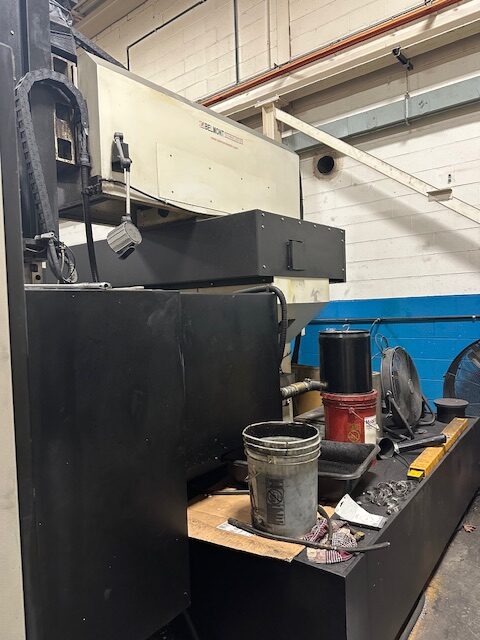

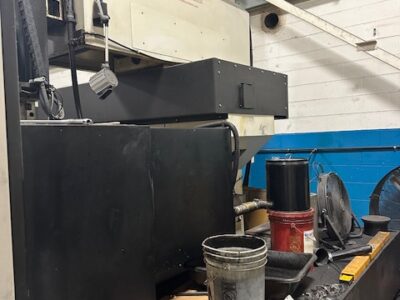

Belmont CNC Sinker EDM Machine
Model: MX-166W

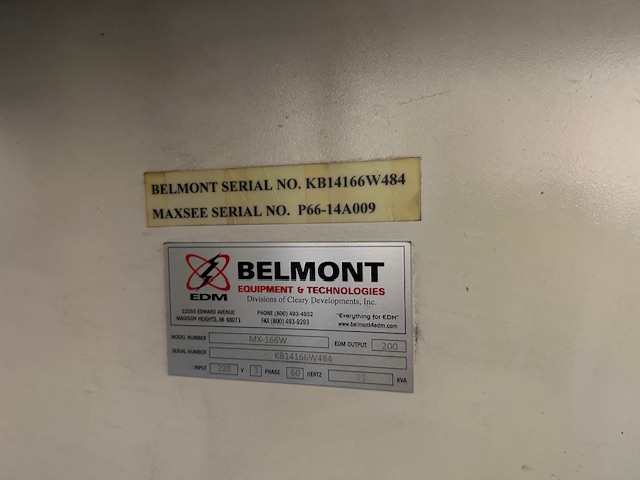

Serial Number: KB14166W484

SPECIFICATIONS:
X-Axis Travel: 51.1″
Y-Axis Travel: 27.5″
Z-Axis Travel: 23.2″
C-Axis: Rotational
Table Size: 62.9″ x 37.4″
Open Height: 26.7″ – 50″
Max Table Weight: 11,000 lbs.
Auto Tool Changer Positions: 8
Work Tank Capacity (l x w x h): 82.6″ x 45.2″ x 24.8″ (19″ Oil Level)
Dielectric Tank Capacity: 605 Gal
Peak Power Output: 200 Amp
Electrical Requirements: 220 V; 3 Ph; 60 Hz (11 KVA)
Approx Dimensions (l x w x h): 180″ x 165″ x 134″
Approx Machine Weight: 18,000 lbs
Equipped With:
8 Position Automatic Tool Changer
C-Axis Rotational Head
Glass Linear Scales
10 Orbit Patterns

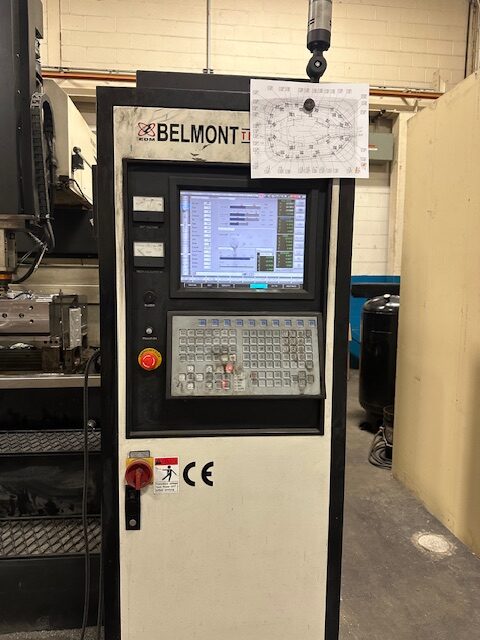

CNC Control Panel
Remote Pendant Control
Dual Dielectric Tanks
