Chevalier 8″ x 18″ FSG-3A8181 Hydraulic Horz. Surface Grinder

Out of Stock

Stock Number #S-2550

  • BrandChevalier
  • Model8" x 18" FSG-3A8181
  • Equipment TypeHydraulic Horz. Surface Grinder

Overview


Chevalier FSG-3A818 Hydraulic Surface Grinder
Model: FSG-3A818

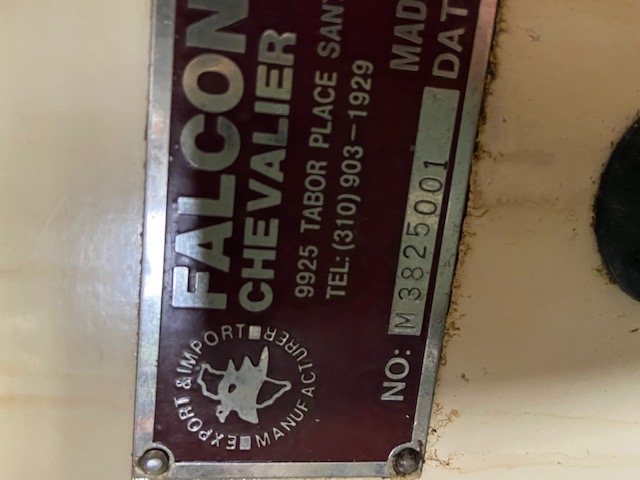

Serial Number: M3825001

Specifications
Table Size: 8″ x 18″
Longitudinal Table Travel: 19.75″
Cross Saddle Travel: 9″
Max. Work Height Spindle Center To Table: 17″
Table Speed (Variable): 16 – 82 FPM
Cross Feed (Intermittent): 0.02 – 0.24 IPM
Automatic Downfeed Rate: 0.0001 – 0.0002 IPM
Rapid Traverse:- IPM
Grinding Wheel Size: 8″ x 1/2″ x 1 1/4″
Spark Out: 0- 5
Dimensions (L x W x H): 86″ x 62″ x 76″
Weight: 3,000 Lbs.

Equipped with
– 3 Axis Power With Incremental Down Feed
– Electro Magnetic Chuck
– Variable Chuck Control
– Auto Lube System
– Coolant System
– Splash Guard
– Horsepower:

This item was recently sold.
Looking for a similar machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
