Cincinnati Milacron R-77 Cylindrical OD Cylindrical Grinder

Stock Number #2157

  • BrandCincinnati Milacron
  • ModelR-77

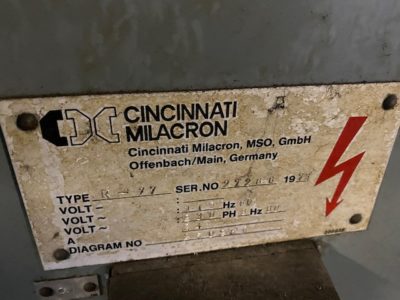

  • Serial Number27266
  • Year1973
  • ConditionGood Used
  • Equipment TypeOD Grinder

Overview


Cincinnati Milacron R-77 Hydraulic OD Grinder

10″ x 31″ CINCINNATI MILACRON
CYLINDRICAL GRINDER
Model R-77

STANDARD SPECIFICATIONS
Maximum distance between centers: 31″
Maximum swing over table: 10″
Maximum weight of work piece between centers: 165 lbs.
Maximum weight of chuck held work: 44 lbs.
TABLE
Table traverse speeds, infinitely variable: 2-240 IPM
Table traverse per revolution of hand wheel: 0.1″ – .5″
Minimum movement necessary to reverse table: 5/32″
Maximum swivel of table: +/-14 degree
HEAD STOCK
Number of speeds: Infinite
Speed range: 60-500 RPM
Diameter of bore in spindle: 1 1/2″
Head stock spindle nose-American Lathe Standard: 5″
Center taper: #6 Jarno
Swivel: 0-90 Degree
FOOT STOCK
Center taper: #6 Jarno
Quill retraction: 8′
WHEEL HEAD
Swivel: +/-45 Degrees
Rapid advance stroke: 2″
Manual infeed per hand wheel revolution (dia.): 0.050″
Auto pick feed on diameter: 0.0002″ – .0016″
Hand lever compensation on diameter: 0.0001″
Grinding wheel:
Standard wheel size: 16″ O.D. x 2″ wide x 5″ hole
Wired 230/3/60
Approx 5,100lbs.
