Kellenberger Kel-Viva Ur 175-1000 CNC OD/ID Grinder
Stock Number #2059
- BrandKellenberger
- ModelKel - Viva UR 175-1000
- Serial Number686049
- Year2009
- ConditionExcellent
- Equipment TypeCNC OD / ID Grinder
Overview

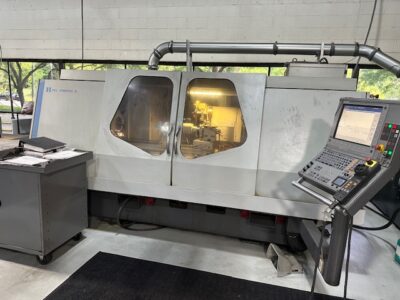

Kellenberger Kel-Viva UR 175-1000 CNC OD / ID Grinder

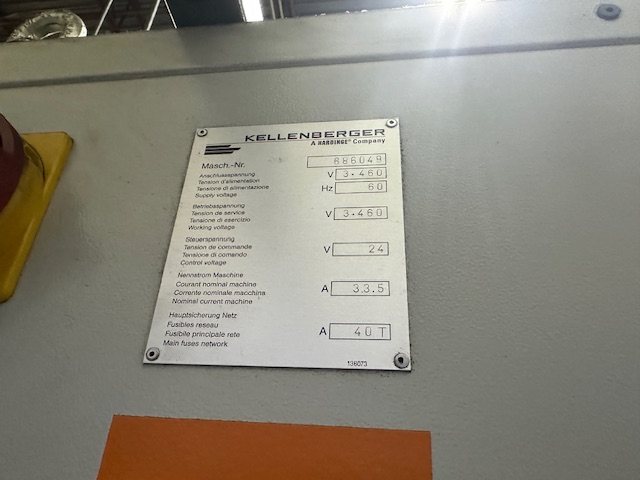

Serial Number: 686049
New: 2009
Model: UR 175-1000

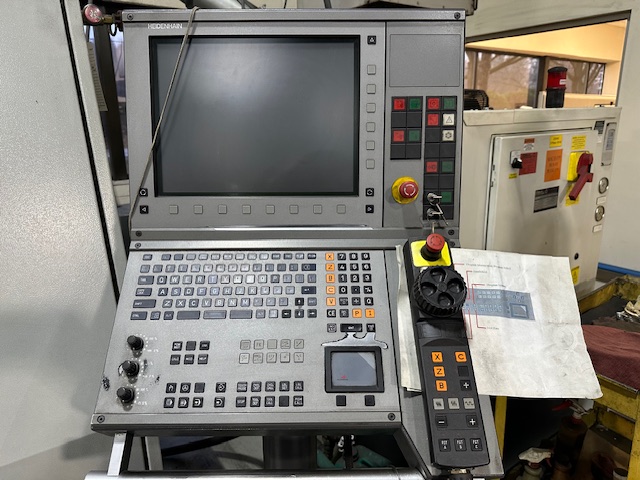

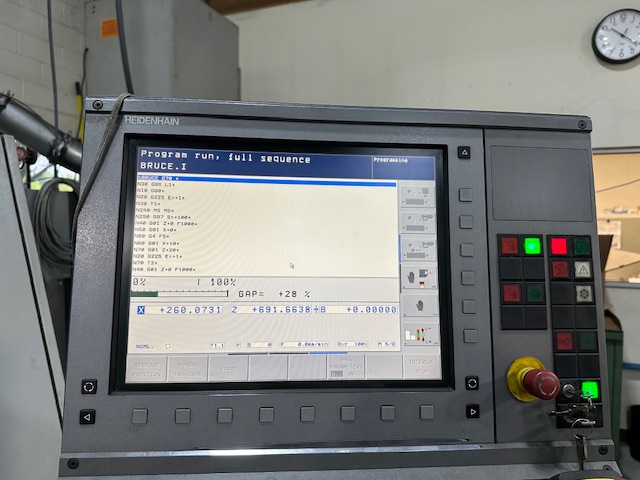

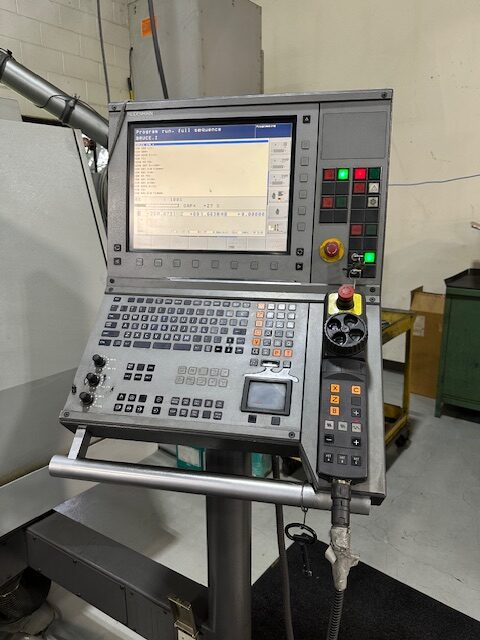

Heidenhain GrindplusIT CNC Control
SPECIFICATIONS:

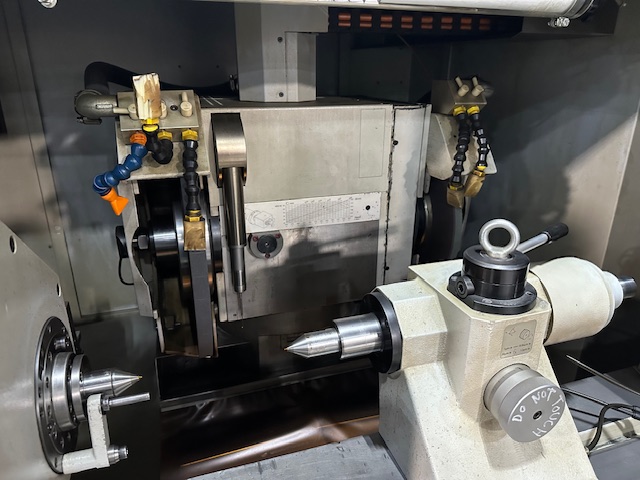

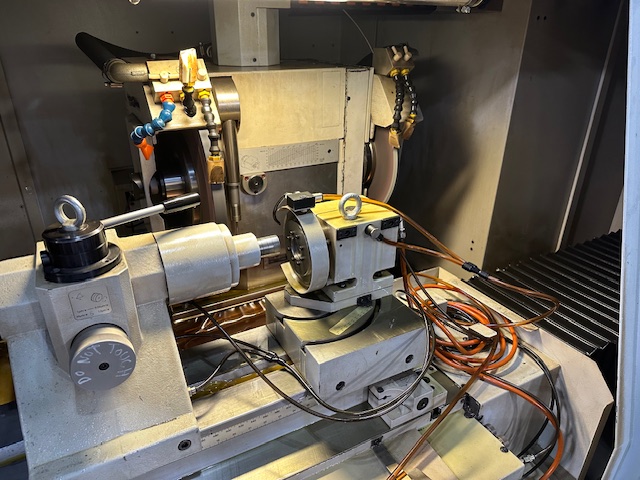

Wheelhead
Left-Side Grinding Wheel Dia x Width – 20″ x 4″
Right-Side Grinding Wheel Dia x Width – 20″ x 4″

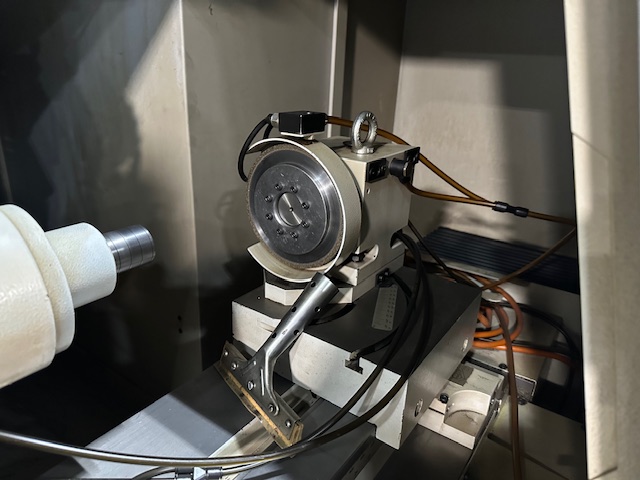

Internal Grinding Spindle Bore/Dia – 5″
OD Motor Output – 12.3 HP
Distance Between Centers – 40″
Z Axis Traverse Rate – 590 IMP
X Axis Max Travel – 12.6″
X Axis Rapid Traverse Rate – 300 IMP

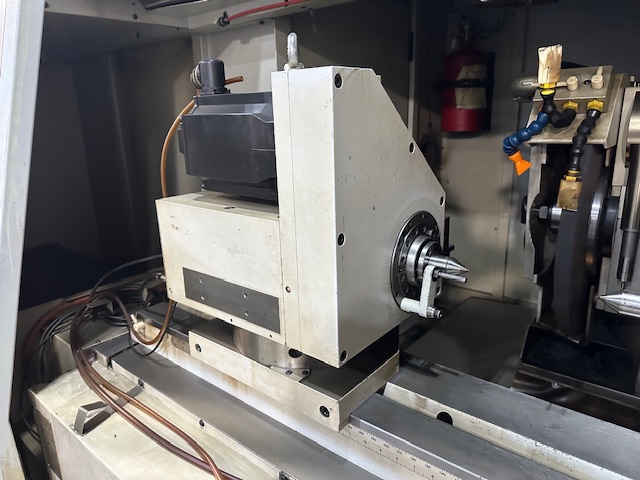

Workhead Spindle Speed – 8 – 800 RPM
Workhead Internal Taper – Morse No. 5
Workhead Motor Output – 5.4 HP

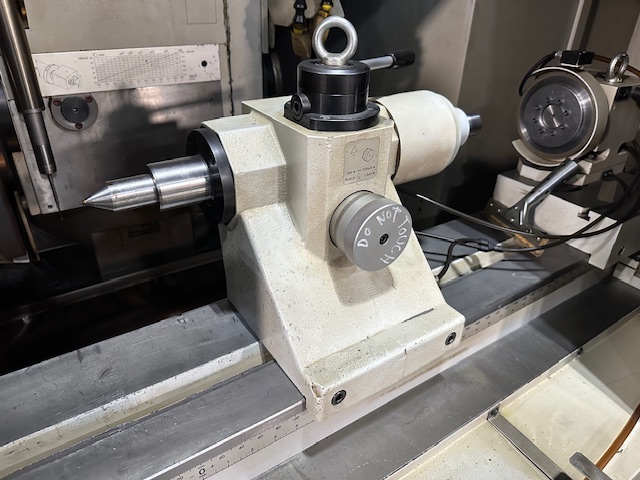

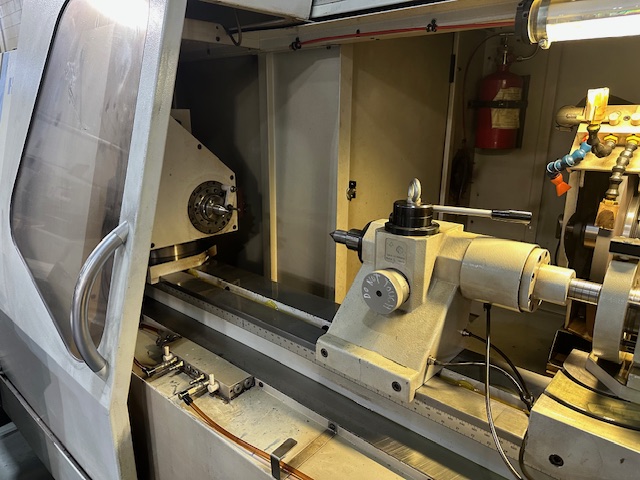

Tailstock Sleeve Retraction – 2″
Hydrostatic Ways
Resolution Z & X ( Glass Linear Encoders ) – 0.1 micron
EQUIPPED WITH:
Diamond Dresser
Probing System

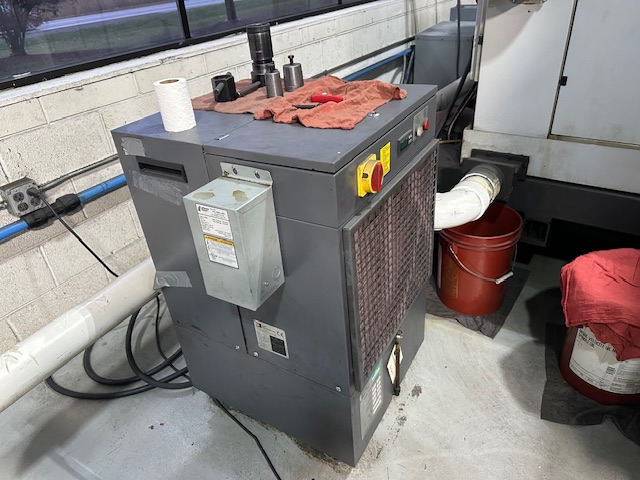

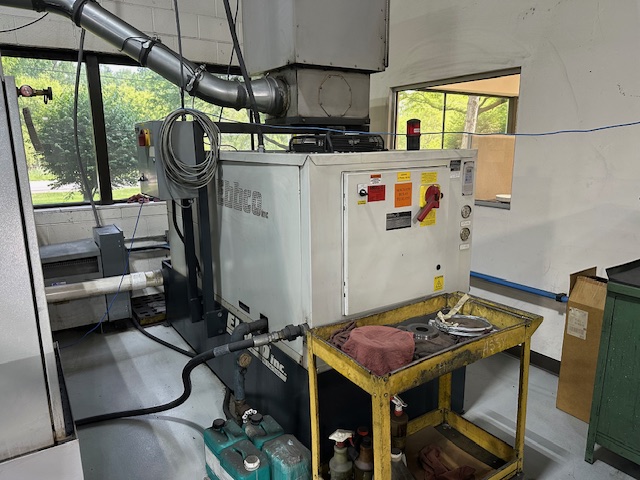

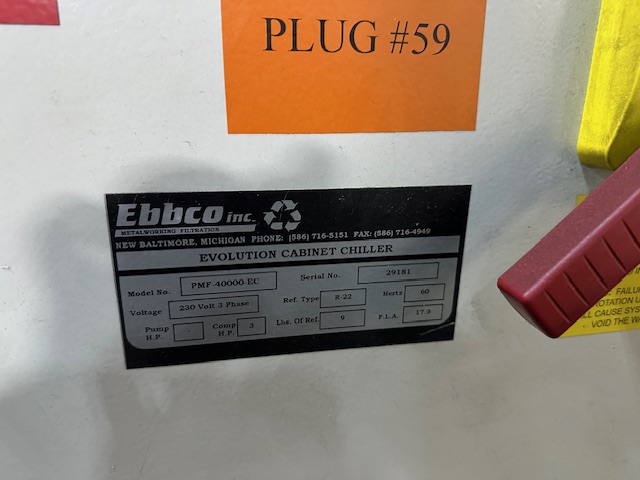

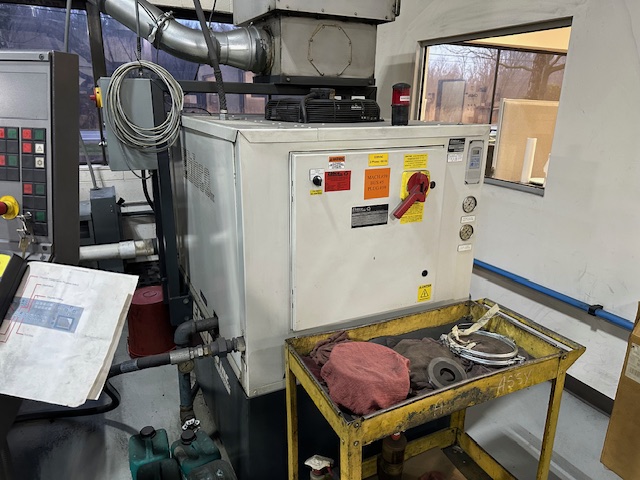

Ebbco PMF – 40000 – EC Chiller
Coolant

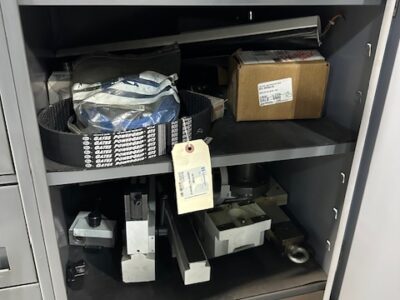

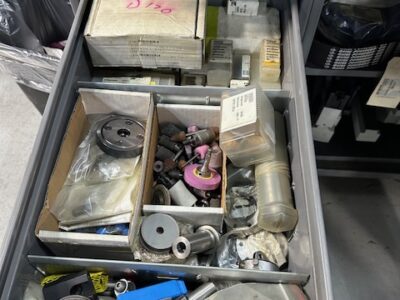

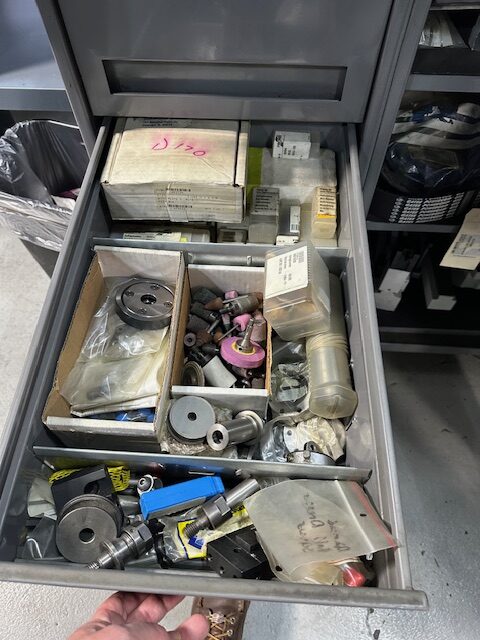

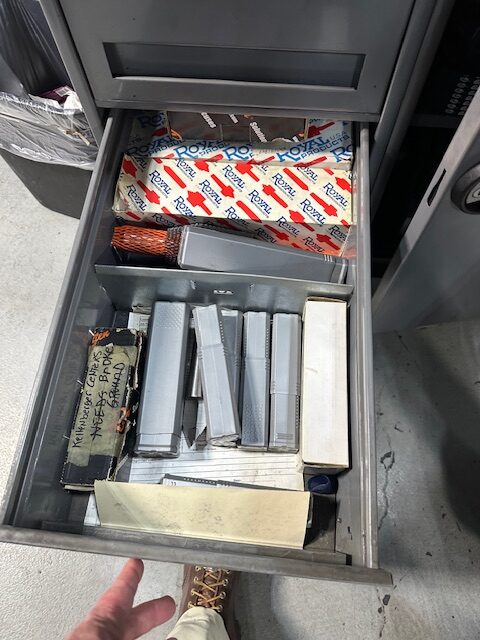

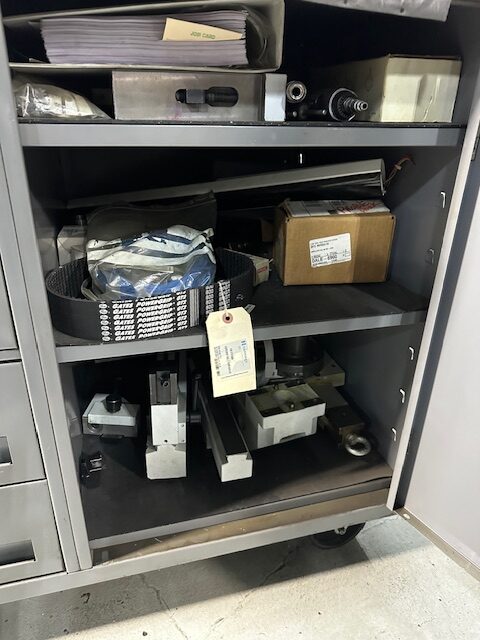

Misc New Parts / Tooling
NEW Software Package – KB0162518 UEModule Heidenhain UE212D
NEW KB 0162519 HEIDENHAIN PC UNIT
NEW KB 0154695 HARDDISK
