Kellenberger R125-600 Cylindrical OD Grinder

Overview

Kellenberger R125-600 Cylindrical OD Grinder

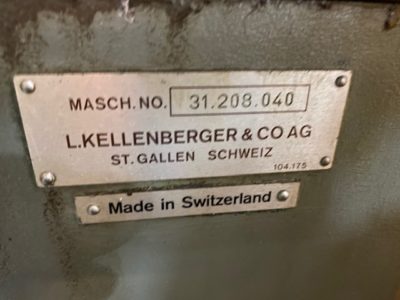

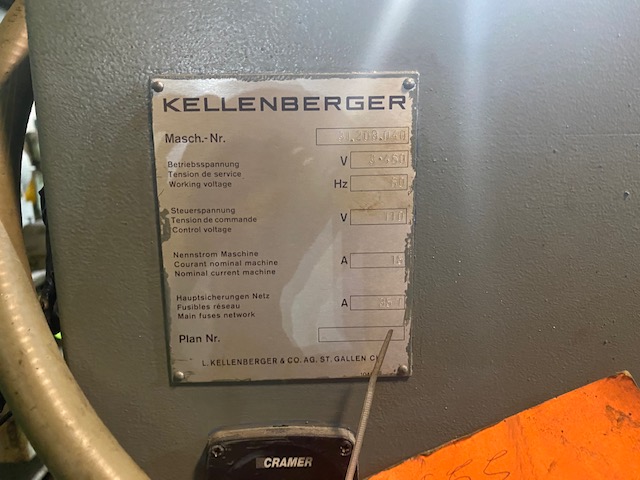

Serial Number: 31.208.040

SPECIFICATIONS:

grinding diameter: 250 mm / 9.8″
grinding length: 600 mm / 23.6″
centre height: 125 mm
grinding wheel diameter: 500 mm
grinding wheel width: 80 (100) mm
bore: 203,2 mm
: MK5
work piece spindle speed: 20-400 U/min
workpiece spindle – bore: mm
workpiece spindle swivable +/-: 360 °
grinding head swivellable +/-: 0 °
grinding spindle speed: U/min
: 0-9,99 mm/Ø
: 0-9,99 mm/Ø
table swivelabel +/-: 10 °
longitudinal feed of the table: 700 mm
table speeds: 0,02-6 m/min
: 130 kg
max. workpiece weight -without tailstock: 130 inkl. Spannung kg
cross travel: 270 mm
tailstock quill taper MT: 3
quill travel: 30 mm
total power requirement: 5,5-7,5 kW
weight of the machine ca.: 2,7 t
