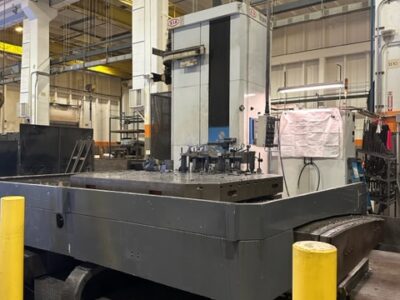

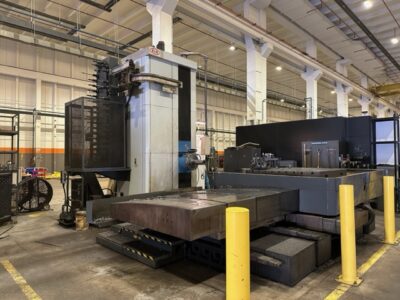

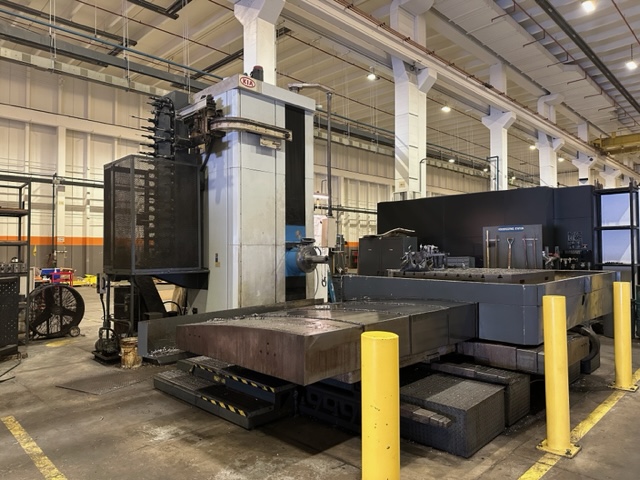

KIA KBN 135 CNC Horizontal Boring Mill

Overview

KIA KBN 135 CNC Horizontal Boring Mill

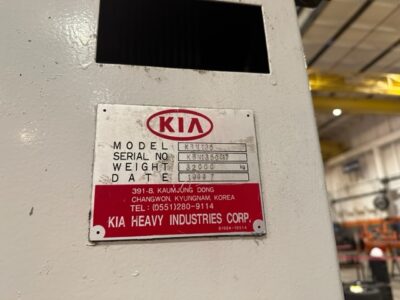

Serial Number: KBN1350017
New: 1999

SPECIFICATIONS:
X-Axis Travel: 118.1″
Y-Axis Travel: 78.7″
Z-Axis Travel: 63″
Spindle Speed: 2,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Tool Magazine Capacity: 40 ATC

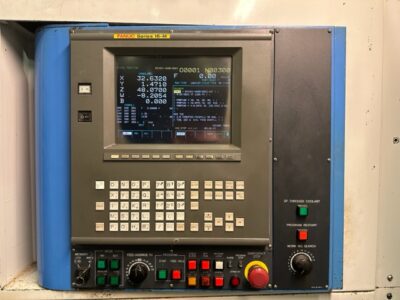

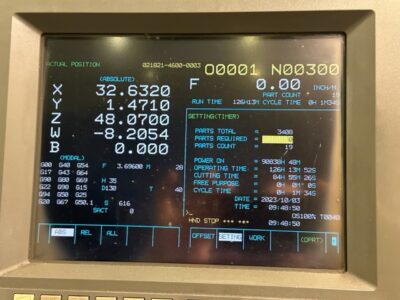

Control: Fanuc 16i

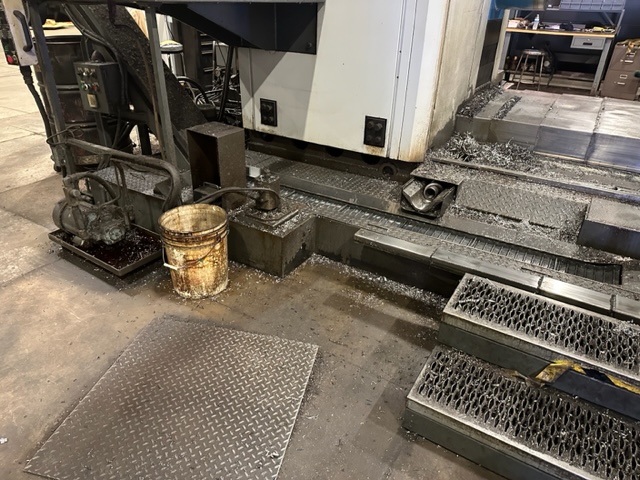

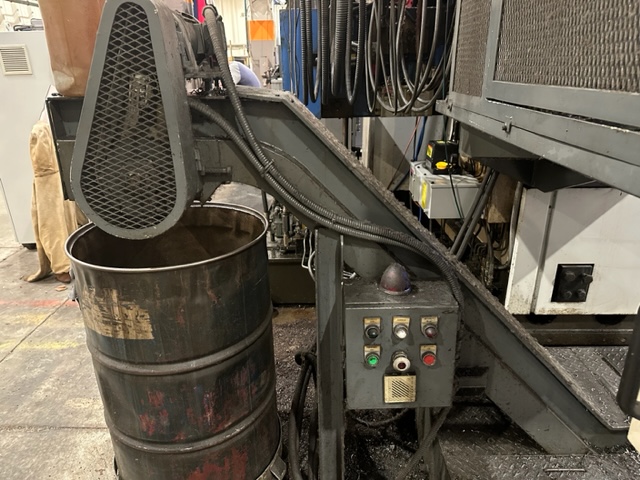

Chip Removal: Chip Conveyor
Coolant: 1,000 PSI CoolJet Through Spindle Coolant

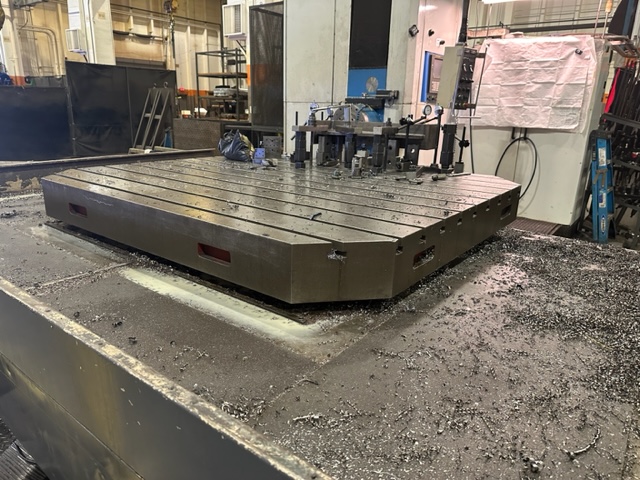

Table Size: 78.74” X 70.87”
Table Load Capacity: 22,046 LBS.

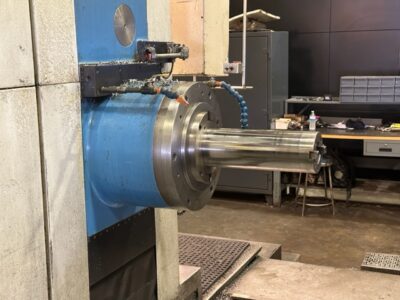

Spindle Diameter: 5.3″
W – Axis Travel: 27.6″
B – Axis Indexing: .001
Tool Diameter: 5.1″, 9.8″
Tool Length: 23.6″
Tool Weight: 66 LBS.
Rapid Traverse X, Y, Z, W: 315, 315, 315 IPM
Cutting Feed Rate: .04 ~ 197 IPM
Machine Weight: 82,012 LBS

4th Axis Rotary Table
60 + Tool Holders
Misc. Table Fixtures

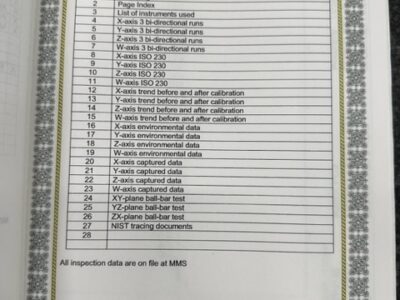

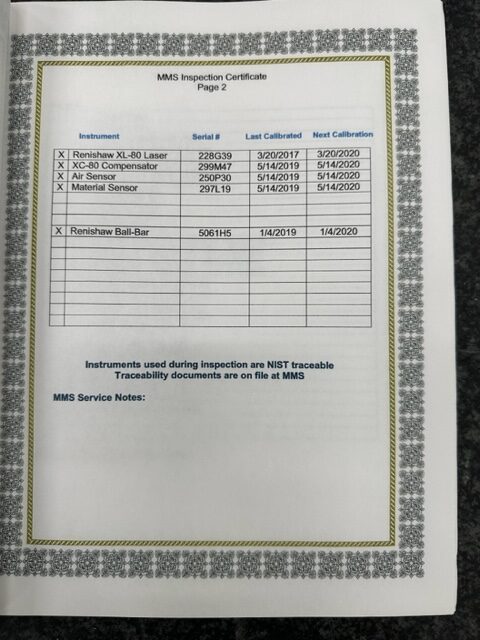

Misc Inspected & Calibrated Every Year w/ Reports Available

Machine Installed into current location 2015.  New Drives and Fully Maintenance
