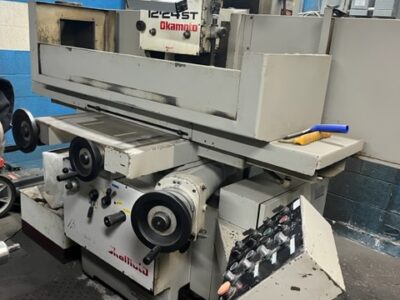

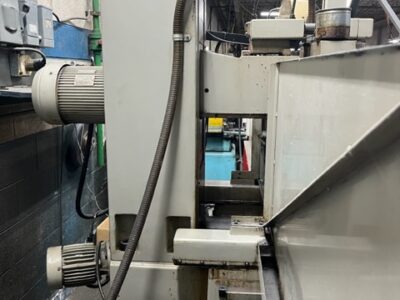

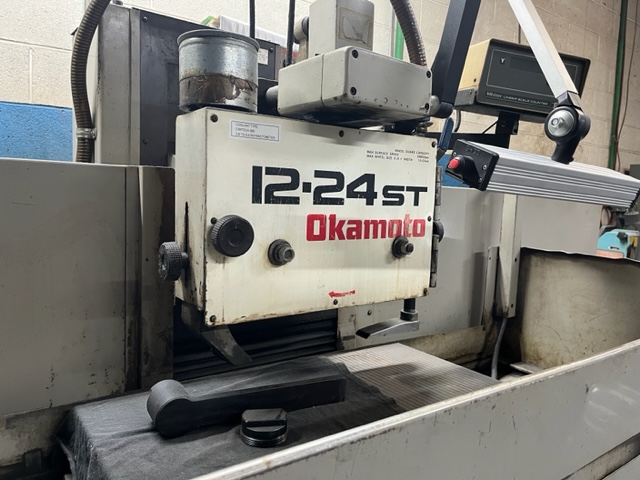

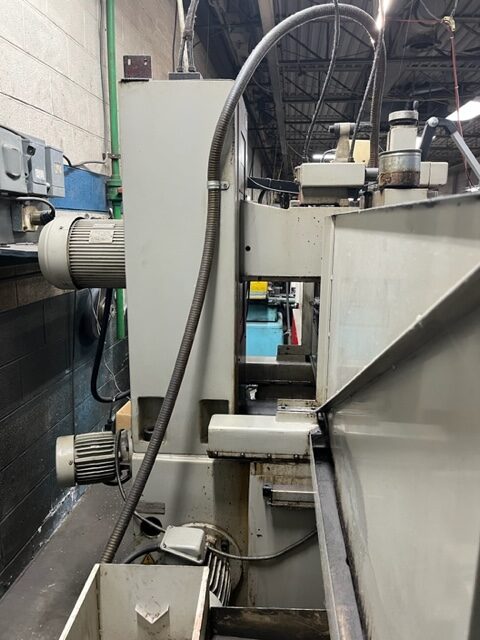

Okamoto ACC 12″ x 24″ ST 3 Axis Hydraulic Surface Grinder

Stock Number #2018

  • BrandOkamoto
  • ModelACC 1224 ST
  • Serial Number83232
  • Year1998
  • ConditionExcellent
  • Equipment TypeHydraulic Surface Grinder

Overview


Okamoto ACC – 1224 ST
Serial No.83232
New: 1998

SPECIFICATIONS:
Grinding – Maximum……………………………………..24″(L) x 12″(W)
Distance Under Wheel to Table Surface – Maximum………….13.7″ (12″ Wheel)
Table Load Capacity…………………………………………..925 Lbs.
Surface Length……………………………………………………24″
Surface Width…………………………………………………….12″
Longitudinal Travel – Maximum…………………………………….29.5″
Cross Travel – Maximum…………………………………………..13.6″
T-Slots (No. x Width)…………………………………………1 x 0.7″
Hydraulic Feed…………………………………………..1 ~ 82 ft/min
Hand Feed (Per Revolution)……………………………………….1.85″
Hydraulic Intermittent Feed………………………………..0.02″ – 0.8″
Hydraulic Continuous Feed…………………………………4 ~ 40 in/min
Hand Feed Per Revolution………………………………………..0.250″
Handwheel Graduation……………………………………………0.001″
Automatic Feed Per Table Stroke………………………..0.0001″ – 0.0015″
Automatic Feed Per Saddle Reversal …………………….0.0001″ – 0.0015″
Hand Feed (Per Revolution)………………………………………0.025″
Manual Micro Feed (Push Button)………………………..0.0001″ – 0.0015″
Handwheel Graduation…………………………………………..0.0001″
Rapid Feed (60 Hz)…………………………………………..16 in/min
Size………………………………………………….12″ x 1.5″ x 5″
Spindle Speed (60 HZ)………………………………………..1,800 RPM
Grinding Wheel Size………………………………………………5 HP
Hydraulic Pump…………………………………………………..2 HP
Vertical Rapid Feed & Downfeed…………………………………..0.5 HP
Hydraulic Tank……………………………………………..26 Gallons
Catalog Dimensions…………………………….103″(L) x 74″(W) x 70″(H)
Catalog Weight……………………………………………..3,900 Lbs.

EQUIPPED WITH:
Over the Wheel Dresser
Electro-Mag Chuck
Coolant Tank

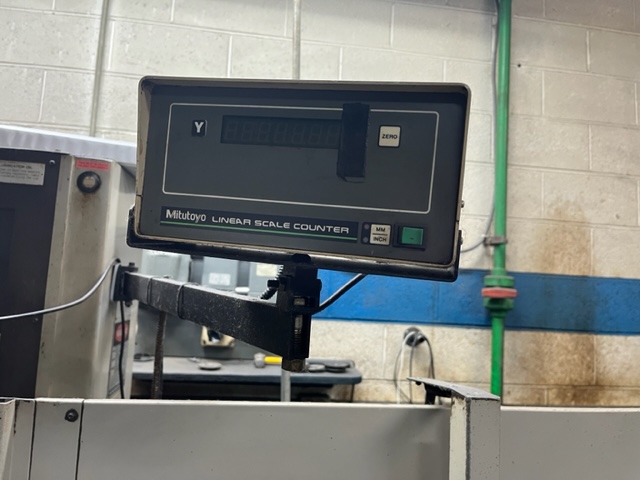

Digital Readouts
