Parker Majestic 1C Combination Universal OD / ID Grinder Rebuilt 2024

Overview

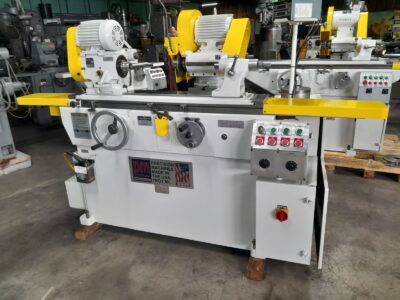

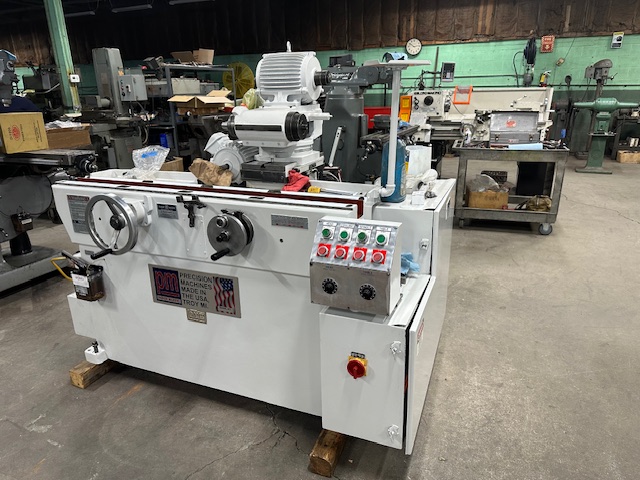

12″ X 24″ PARKER-MAJESTIC “SUPER-PRECISION” (MADE IN USA) I.D./O.D. CYLINDRICAL GRINDER REBUILT 2024

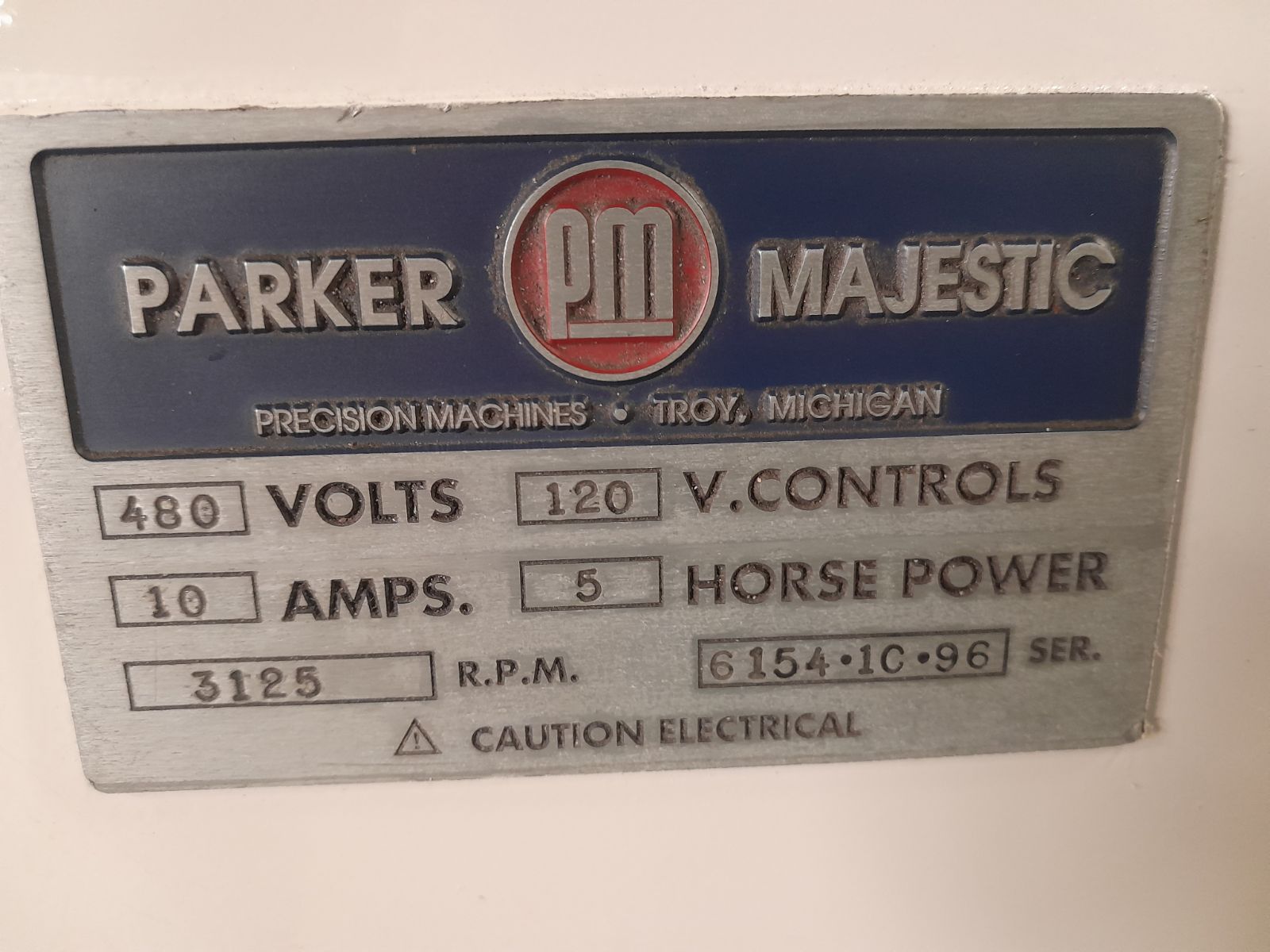

MODEL: 1C S/N: 6154-1C-96
NEW: 1996

SWING OVER TABLE …………………… 12″
DISTANCE BETWEEN CENTERS ……………. 24″
TABLE WORKING SURFACE ………………. 5″ X 41″
POWER TABLE SPEEDS …………………. 3″ TO 30″ IPM
TABLE SWIVEL ………………………. 7 DEGREES
TABLE TRAVEL ………………………. 24″

CROSS FEED TRAVEL ………………….. 3- 1/2″
CROSS FEED ADJUSTMENT ………………. 4″
CROSS FEED HANDWHEEL GRAD. ………….. 0.0005″
CROSS FEED PRECISION DIAL GRAD ………. 0.000050″

GRINDING WHEEL SIZE ………………… 12″ DIAMETER

HEADSTOCK SWIVEL …………………… 0 TO 90 DEG.
INFINETLY VARIABLE HEADSTOCK SPINDLE
SPEEDS ………………………….. 50 TO 450 RPM
DEAD CENTER SPEEDS …………………. 20 TO 225 RPM
HOLE THRU SPINDLE ………………….. 1- 1/4″
HEADSTOCK CENTER TAPER ……………… #6 JARNO
TAILSTOCK CENTER TAPER ……………… #6 JARNO

APPROX. DIMENSIONS …………………. 91″L X 48″D X 65″H
APPROX. MACHINE WEIGHT ……………… 3,000 LBS.

EQUIPPED WITH:
SWING-AROUND INTERNAL GRINDING ATTACHMENT SPINDLE
PARKER-MAJESTIC SUPER-PRECISION SPINDLE FOR WHEELHEAD
MACHINE PRESENTLY HAS A 12″ DIAMETER x 1″ WIDE WHEEL
ELECTRONIC INFINITLEY VARIABLE SPEED CONTROL FOR WORKHEAD
SPINDLE SPEEDS
VARIABLE SPEED ELECTRIC TABLE DRIVE FOR QUIET & SMOTH OPERATION
TABLE SINE OPTION FOR ACCURATE TAPER GRINDING
WORKHEAD ACCEPTS 5C COLLETS
.00005″ CROSS FEED DIAL GRADUATIONS
5″ BUILT-IN WORKHEAD SINE BAR
COOLANT SYSTEM, SELF-CONTAINED, IN THE BASE OF THE MACHINE
“BIJUR” ONE-SHOT LUBRICATOR
1 H.P./3/60/230-460 VOLT MOTOR FOR THE WORKHEAD
3 H.P./3/60/230-460 VOLTS MOTOR FOR THE GRINDING WHEELHEADS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

MAGNETIC CHUCK

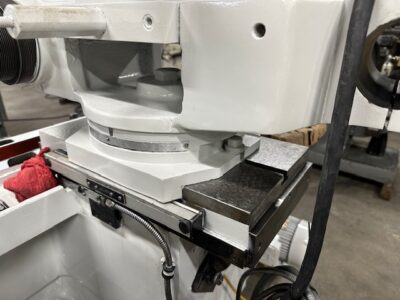

Accurate 2 Axis DRO

INSPECT UNDER POWER

Scope of Remanufacturing – 2024
Rebuilt motor drive VARI-Speed on headstock
Rebuilt motor drive VARI-Speed on table drive
New lead screw in cross slide

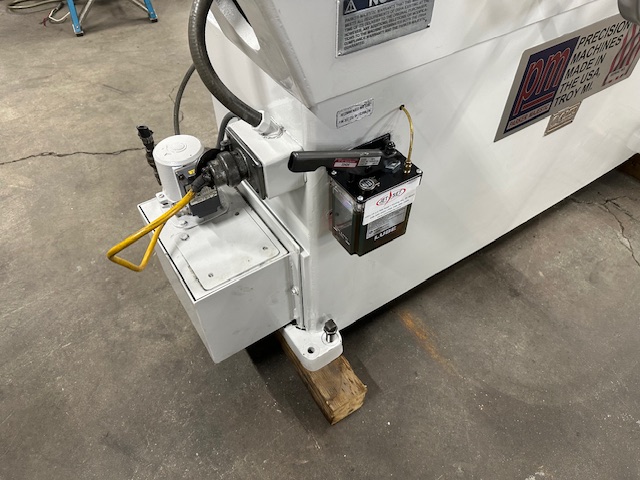

New One Shot Lube System

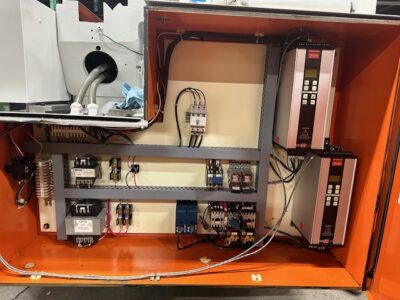

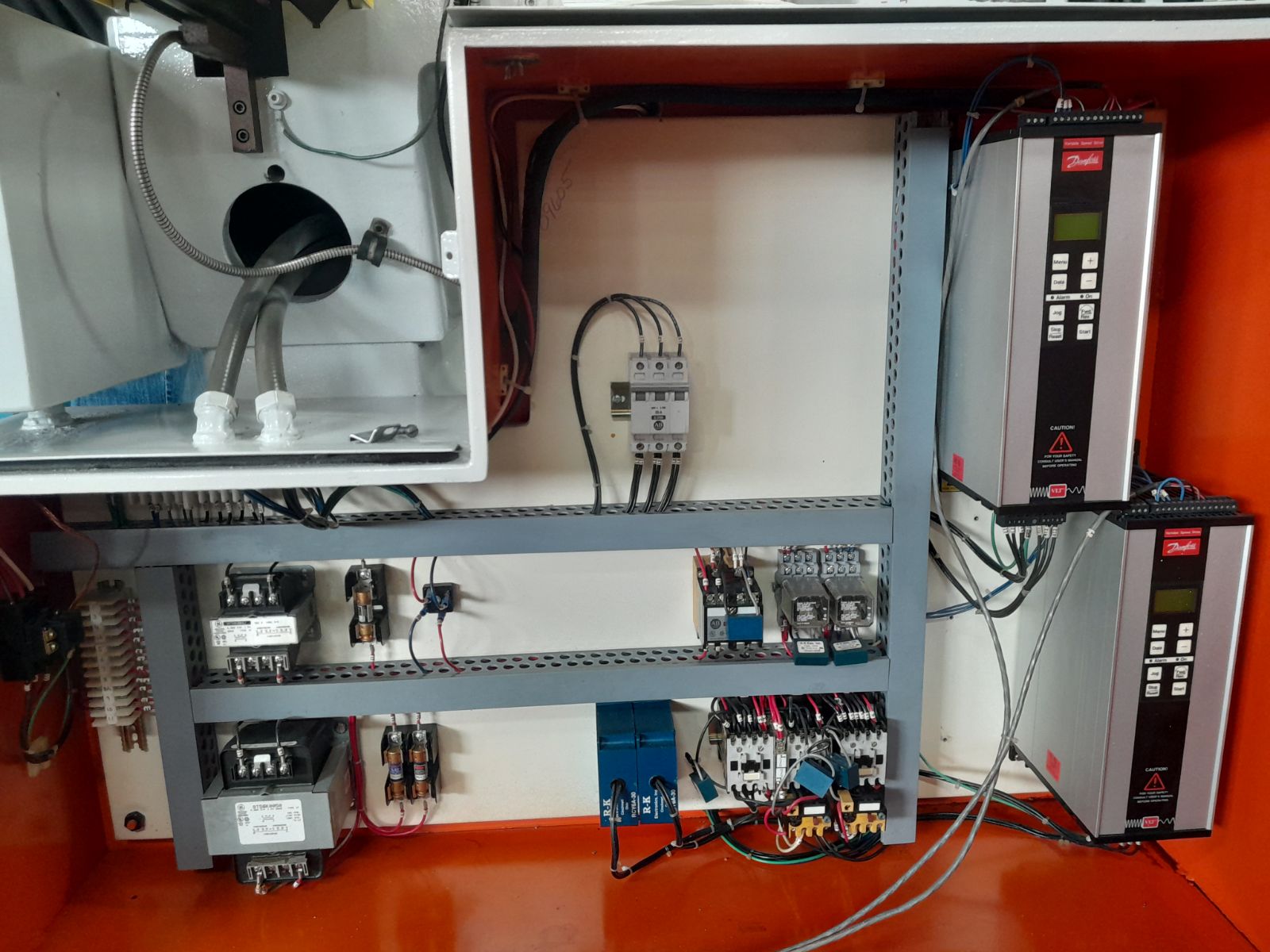

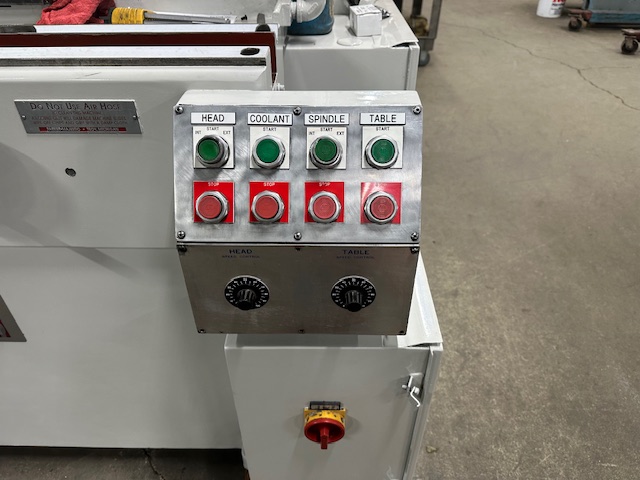

ALL NEW ELECTRICS IN PANEL, PUSH BUTTONS, AND MOTORS

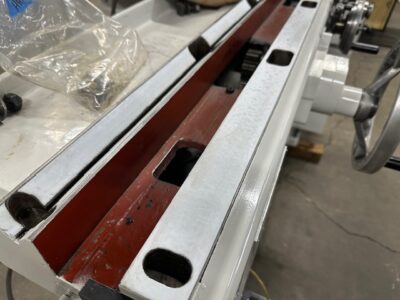

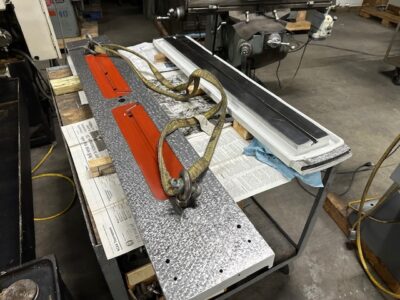

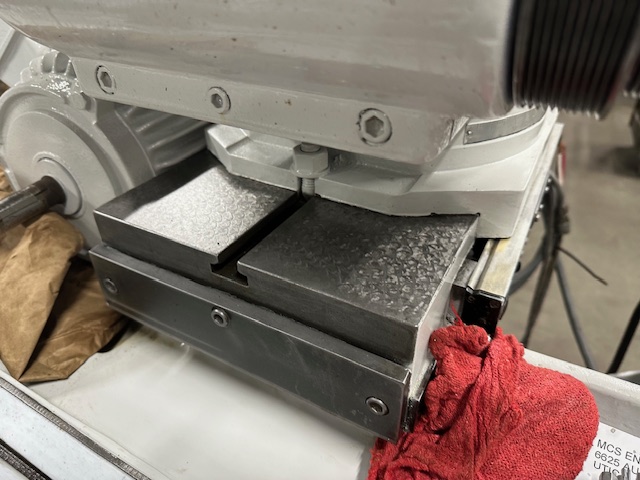

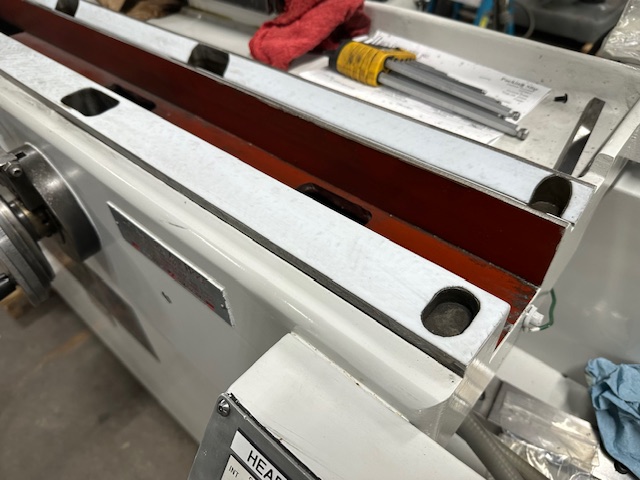

COMPLETELY FLAKED & SCRAPPED TO NEW TOLERANCE
SPINDLES REBUILT
