| By admin | 0 Comments
Parker Majestic 6″ x 18″ 2Z Surface Grinder
SPECIFICATIONS:
6″ x 18″ Capacity
Permanet Magnetic Chuck
20″ Vertical Height From Centerline to Top of Table
7″ x 5/8″ x 1 1/4″ Wheel Size
1.5 HP Parker Spindle
Power Elevation
One Shot Lubrication
220 Volt
| By admin | 0 Comments
Parker Majestic 6″ x 18″ 2Z Surface Grinder
SPECIFICATIONS:
6″ x 18″ Capacity
Permanet Magnetic Chuck
20″ Vertical Height From Centerline to Top of Table
7″ x 5/8″ x 1 1/4″ Wheel Size
1.5 HP Parker Spindle
Power Elevation
Oil Cup Lubrication
220 Volt
| By admin | 0 Comments
Okamoto ACC – 1224 ST
Serial No.83232
New: 1998
SPECIFICATIONS:
Grinding – Maximum……………………………………..24″(L) x 12″(W)
Distance Under Wheel to Table Surface – Maximum………….13.7″ (12″ Wheel)
Table Load Capacity…………………………………………..925 Lbs.
Surface Length……………………………………………………24″
Surface Width…………………………………………………….12″
Longitudinal Travel – Maximum…………………………………….29.5″
Cross Travel – Maximum…………………………………………..13.6″
T-Slots (No. x Width)…………………………………………1 x 0.7″
Hydraulic Feed…………………………………………..1 ~ 82 ft/min
Hand Feed (Per Revolution)……………………………………….1.85″
Hydraulic Intermittent Feed………………………………..0.02″ – 0.8″
Hydraulic Continuous Feed…………………………………4 ~ 40 in/min
Hand Feed Per Revolution………………………………………..0.250″
Handwheel Graduation……………………………………………0.001″
Automatic Feed Per Table Stroke………………………..0.0001″ – 0.0015″
Automatic Feed Per Saddle Reversal …………………….0.0001″ – 0.0015″
Hand Feed (Per Revolution)………………………………………0.025″
Manual Micro Feed (Push Button)………………………..0.0001″ – 0.0015″
Handwheel Graduation…………………………………………..0.0001″
Rapid Feed (60 Hz)…………………………………………..16 in/min
Size………………………………………………….12″ x 1.5″ x 5″
Spindle Speed (60 HZ)………………………………………..1,800 RPM
Grinding Wheel Size………………………………………………5 HP
Hydraulic Pump…………………………………………………..2 HP
Vertical Rapid Feed & Downfeed…………………………………..0.5 HP
Hydraulic Tank……………………………………………..26 Gallons
Catalog Dimensions…………………………….103″(L) x 74″(W) x 70″(H)
Catalog Weight……………………………………………..3,900 Lbs.
EQUIPPED WITH:
Over the Wheel Dresser
Electro-Mag Chuck
Coolant Tank
Digital Readouts
| By admin | 0 Comments
Parker Majestic 2Z Surface Grinder – Reconditioned
Serial Number: 3364-ZB-77
SPECIFICATIONS:
6″ x 18″ Perm Magnetic Chuck
20″ Vertical Height Tavel ( Table to Spindle Center )
1 HP Spindle
Power Elevation
One Shot Lube System
208V 3 Phase 60 Cycle
Reconditioned 2022
Cleaned, Stripped & Repainted
New Lead Screw & Nut ( Cross Feed )
Table & Bedways Ground & Scraped
New One Shot Lube System, Lines & Meters
All Electrical Cleaned & Tested
| By admin | 0 Comments
Freeport SGS-2012AHD Double Column Horizontal Surface Grinder
Model: SGS-2012AHD
Serial Number: 108183
New: 2019
SPECIFICATIONS:
Work Table: 1300mm Width x 2900mm Length
Current Chuck Size: 1300mm Width x 2000mm Length
Max Horz. Spindle Travel: 2200mm
Distance Between Columns: 1600mm
Table Speed: 5 – 25M/min
Max Table Load Capacity: 4000KG
Distance Between Table & Spindle Center: 950mm
Spindle Motor: 20HP
Grinding Wheel Dimensions: 510mm X 50mm X 127mm
Spindle Speed: 1250RPM
Downfeed: 0.005 ( 5 Microns )
Rapid Downfeed Speed: 650mm/Min
Incremental Crossfeed
EQUIPPED WITH:
(2) Chucks – Electro-Magnetis
Oil Chiller
Free Standing Hydraulics w/ Chiller
Coolant System w/ Filtration
| By admin | 0 Comments
Parker Majestic 8″ x 18″ 2Z Surface Grinder
SPECIFICATIONS:
8″ x 18″ Magnetic Chuck
Variable Pull Chuck Control
Power Elevation
1 Axis DRO
One Shot Lubrication System
| By admin | 0 Comments
Parker Majestic 6″ x 18″ 2Z Surface Grinder
SPECIFICATIONS:
6″ x 18″ Magnetic Chuck
Variable Pull Chuck Control
1.5 HP Spindle w/ Variable Speed Spindle Control
Power Elevation
One Shot Lubrication
Sony 2 Axis DRO
220 Volt
| By admin | 0 Comments
Blanchard 32-60 Vertical Spindle Rotary Surface Grinder
SPECIFICATIONS:
32″ Diameter Segment Grinding Wheel
60″ Magnetic Chuck – 3/4″ + Chuck Life
Grinding Wheel Spindle Motor: 75HP / 100HP
30″ Vertical Height Under Wheel
.001″ – .100″ IMP Course Feed Range
.0001″ – .010″ IMP Feed Range
Neutrolfier II Chuck Control
Trabon Lube Systems
Swing Arm Dresser
Re-Conditioned: 2022
Rebuilt Table / Gearing /Drive
Solid State Controls
New Table Rack
Table Slide Ground / Scrapped
Cleaned & Painted
New Chuck Life 3/4”+
Equipped With:
Polytech Coolant Dragout Unit with Coolant Tank & Pump
PlymoVent Mist Collector
480 Volt / Freestanding Panel
| By admin | 0 Comments
8″ X 18″ BOYAR SCHULTZ SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
MODEL: 3A818
SERIAL NUMBER: 818-20796-3A
WIDTH& LENGTH GROUND …………………8″ X 18″
MAX. HEIGHT UNDER 7″ WHEEL TO TABLE ……….. 13″
LONGITUDINAL TABLE TRAVEL ………………… 21″
LONGITUDINAL TABLE SPEED ………….. 0 TO 70 FPM
CROSS FEED TRAVEL …………………….. 9-1/4″
AUTOMATIC CROSS FEED INCREMENT ………. 0 TO 3/8″
WHEEL DRESS ………………….. MANUAL OR 0-80″
CROSS FEED HANDWHEEL ………………….. 0.001″
AUTO INCREMENTAL DOWNFEED (5 STEPS) .. 0.0001″ – .002″
TOTAL AUTO DOWNFEED RANGE ……………… 0.001″
VERTICAL HANDWHEEL …………………… 0.0001″
GRINDING WHEEL DIAMETER ………………….. 8″
APPROX. MACHINE WEIGHT …………….. 2,450 Lbs.
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE CYCLES)
NUMBER OF SPARKOUT PASSES IS PRE-SELECTABLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC LONGITUDINAL & CROSS FEEDS
1 H.P. BOYAR SCHULTZ SUPER-PRECISION DIRECT DRIVE
SPINDLE, 3450 RPM
HARD STEEL WAYS
CROSS FEED LOCK
AUTOMATIC LUBRICATOR TO ENSURE THAT WAYS, SCREWS,
AND ALL WEAR PARTS ARE PROPERLY OILED.
SELF-CONTAINED HYDRAULICS SYSTEM
8″ x 18″ CHUCK
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
| By admin | 0 Comments

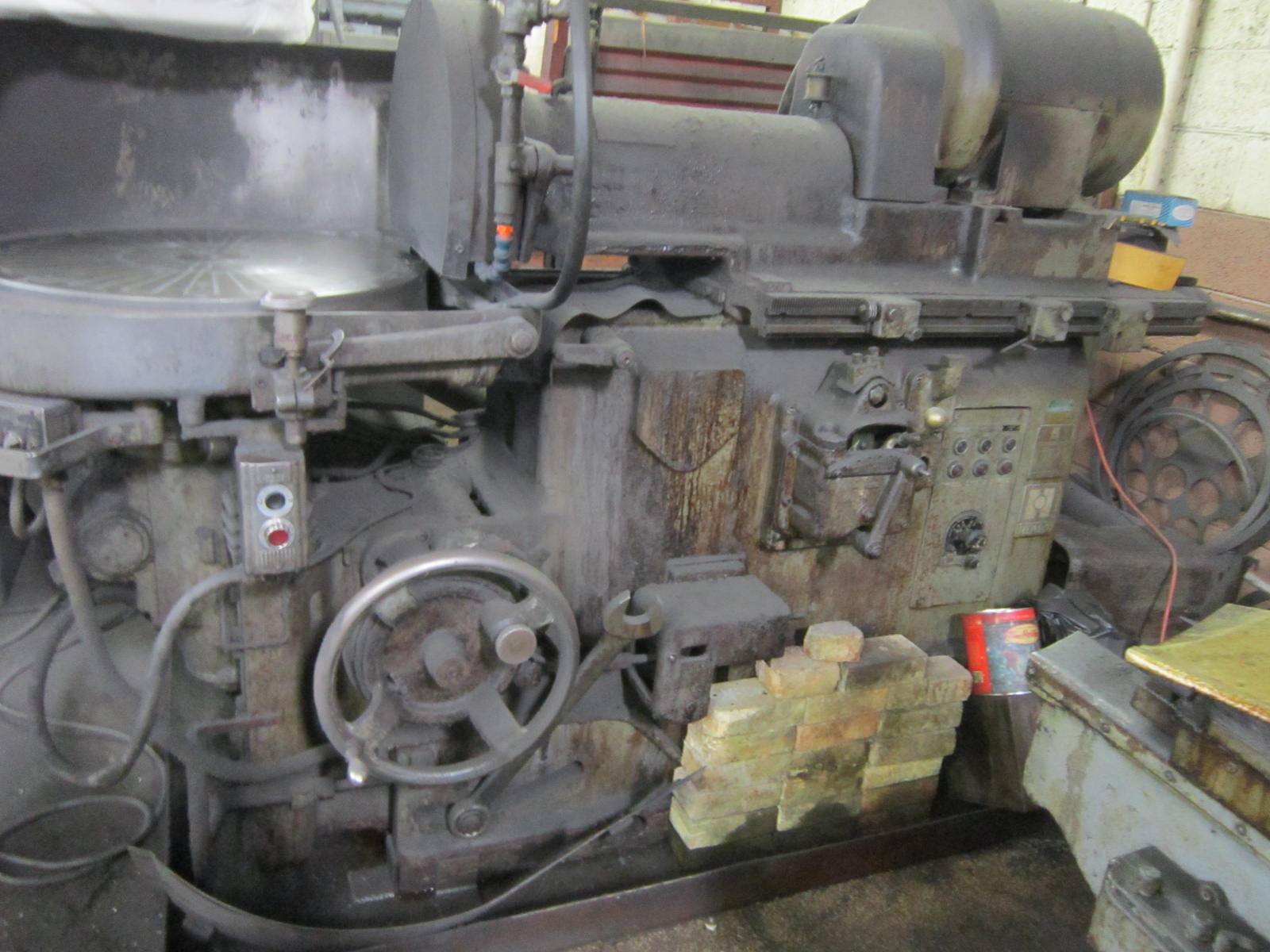

Heald 25A Horizontal Spindle Rotary Surface Grinder
SPECIFICATIONS:
Chuck Size: 24 7/8″
Chuck Speeds: 25,37,49,74 RPM
Swing Inside of Guard: 26 3/4″
Wheel Size: 14″ Min – 18″ Max x 2″ x 8″ Bore
Wheel Speed: 1285 RPM
Distance from Top of Chuck to Wheel Center: Max 13 1/4″ / Min 7″
Max Angle: Convex 15 deg / Concave 5 deg
Wheel Motor: 10 HP
Machine Dimensions: 84 1/2″ x 65″
Machine Weight: 8580 LBS.
