SMTW 25″ X 160″ Plain OD Grinder

Out of Stock

Stock Number #S-254

SMTW 25″ X 160″ Plain OD Grinder
  • BrandSMTW
  • Model25" X 160"
  • Equipment TypePlain OD Grinder

Overview

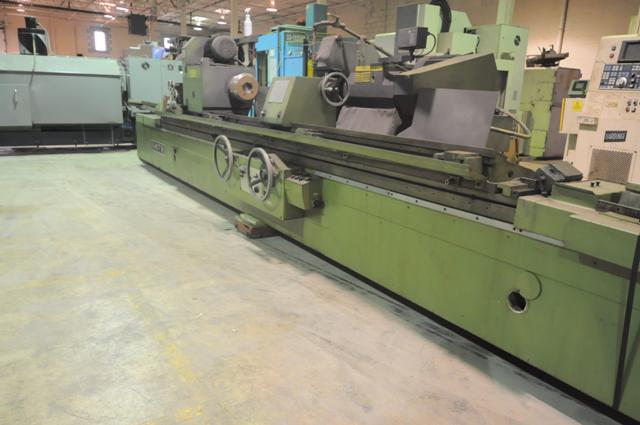

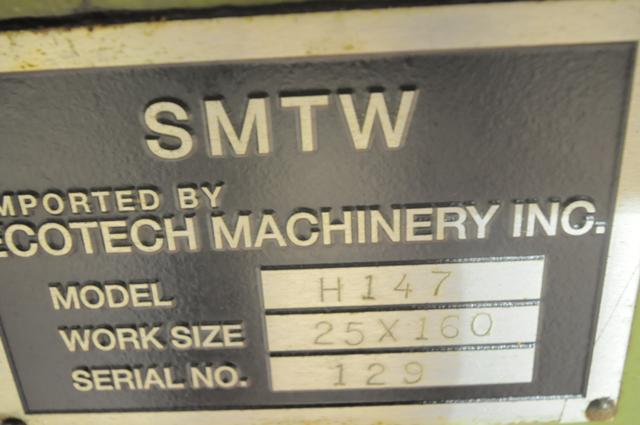

1-USED SMTW MODEL H147 25″ X 160″ PLAIN CYLINDRICAL OD GRINDER
SERIAL NUMBER 129
APPROX. DATE OF MFG. 1997

RATED WORK PIECE CAPACITY 25″ X 157″
CENTER HEIGHT 13.8″
MAX. WORK LOAD 3,000 LBS
*SPINDLE HEAD AREA OF MACHINE*
SPINDLE HEAD MOTOR 20 HP (15 KW)
WHEEL SIZE MAX. 30″ X 3″ WIDE X 12″ HOLE
WHEEL SPEED 890 RPM
SURFACE SPEED 6990 FPM
RAPID TRAVEL 30 FPM
HANDWHEEL REV. 0.05″
HANDWHEEL DIV. .0001″
MAX. TRAVEL RP 4″
MAX. TRAVEL HW 10″
SPINDLE BEARINGS 4 SHOE HYDRODYNAMIC
SPINDLE TAPER 1.5 TAPER
OIL RESERVOIR 12 GAL @ 2 ISO VISCOSITY GRADE

*WORK TABLE AREA OF MACHINE*
SWIVEL -1 DEGREE/+3 DEGREES
FEED RANGE 4 TO 157 FPM
MAX. TRAVEL 160″
TABLE ANGLE 20 DEGREES SLANT

*WORKHEAD AREA OF MACHINE*
MAIN MOTOR ON WORK HEAD 4/6 HP (2 SPEED)
TAPER IN WORKHEAD 6 MT
WORK HEAD RPM 22,44,60,84,120,168

*TAILSTOCK*
TAPER 6 MT
QUILL TRAVEL 2.76″
DRESSING SOLID MOUNT

*HYDRAULIC UNIT*
1.5 HP MOTOR
FLOW RATE 7 GPM
PRESSURE 142 TO 184 PSI
RESERVOIR CAPACITY 55 GALLONS 32 ISO VISCOSITY GRADE

EQUIPPED WITH:
SINGLE AXIS DRO ON SPINDLE HEAD INFEED
TAILSTOCK
3 STEADY RESTS
ASSORTED LEVELING PADS
EXTERNAL ELECTRICAL PANEL
EXTERNAL HYDRAULIC POWER UNIT
MACHINE DIMENSIONS 484″ LONG X 103″ WIDE X 81″ TALL
APPROX. GROSS WEIGHT 32,500 LBS
