Southwestern Industries TRAK K3 SMX CNC Vertical Knee Mill

Overview

Southwest Industries TRAK K3 SMX CNC Vertical Knee Mill
New: 2012
Model: TRAK K3 SMX

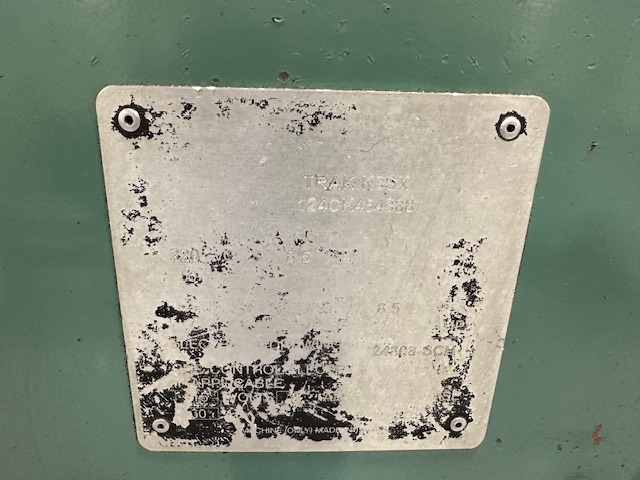

Serial Number: 124CK454388

SPECIFICATIONS:
• Table Size –50” X 10”
• T-Slots – 5/8” x 3 x 2 ½”
• Table Travel – 32”
• Saddle Travel – 16”
• Knee Travel – 16”
• Ram Travel – 15”
• Maximum Quill Travel – 5”
• Quill Diameter – 3 3/8”
• Spindle Taper – R8
• Spindle Speed – 60-4200 RPM
• Head Tilt – 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
• Spindle Motor Power – 3HP
• Power Requirement Control – 110V; 1P; 8A
• Power requirements, machine – 220/440V;3P; 8.5/4.25A
• Maximum Weight on Table – 850 lbs.
• Machine Weight – 2816 lbs.
• Machine dims l,w,h, – 71” x 59” x 84”
• Maximum rapid feed – 100 IPM
• Way surface type – Dovetail X, Z Square Y
• Precision 7207 CP4 spindle bearings
• Chrome hardened and ground quill
• Meehanite castings
• Slide ways are Turcite coated
• Wide way surfaces are hardened and ground

Equipped with:
Prototrak SMX CNC Control
Power Draw Bar
Advanced features
