Studer Favorit CNC OD / ID Grinder

Overview

DESCRIPTION:
(1) Used Studer 110, 285mm x 1150mm CNC Universal OD/ID Grinder
New: 2017
Serial Number: 1042-0470
Hours: Approx: 1110

SPECIFICATIONS:

Linear Axes
Max Travel X: 285mm
Max Travel Speed X: 10,000 mm/min
Max Travel Z: 1,150 mm
Max Travel Speed Z: 20,000 mm/min

Swivel Axes
Swiveling Range B: 210º
Swivewing Range C: Infinite

Spindle Drive:
Max Spindle Power: 9 kW
Max Number of Revolutions: 2,810 rpm
Max Grinding Wheel Diameter: 508 mm
Max Grinding Wheel Width: 80 mm

Workpiece Date
Workpiece Length: 1,030 mm
Workpiece Diameter: 349 mm
Max Workpiece Weight: 120 KG
Distance Between Centers: 1,000 mm
Center Height: 175 mm

Equipped With:

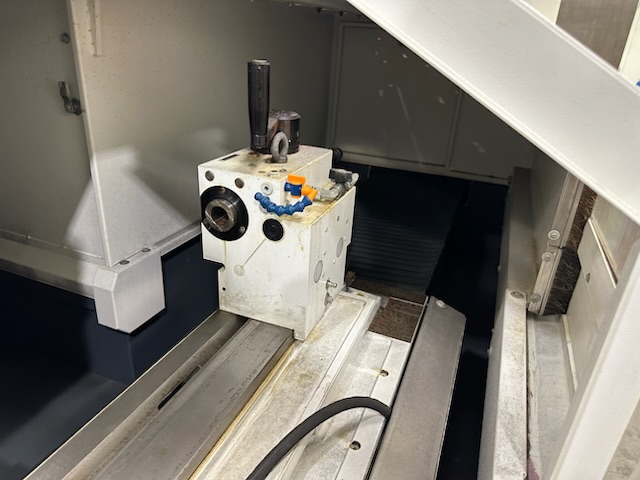

Swing Around OD / ID Head
Tail Stock
Mist Buster
Coolant
