SWI Proto Trak TRL 1840 SX w/ SLX Control

Out of Stock

Stock Number #S-1262

  • BrandSWI Proto Trak
  • ModelTRL 1840 SX w/ SLX Control
  • Equipment TypeMiscellaneous Machinery

Overview

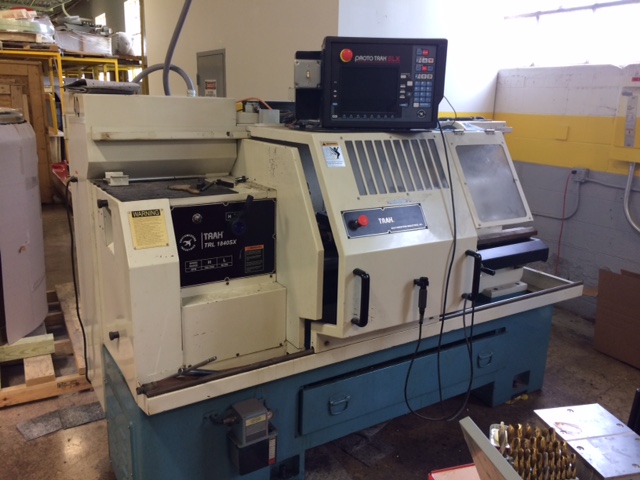

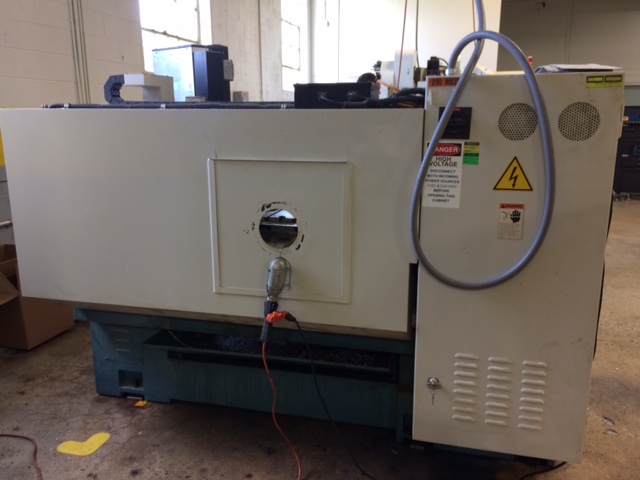

Southwestern Industries Proto Trak TRL 1840SX CNC Lathe
SN: 063CQ14659
New: 2006

SPECIFICATIONS:
DISTANCE BETWEEN CENTERS………… 40 1/4″
SWING OVER BED…………………………….. 18 1/2″
SWING OVER SADDLE WINGS…………… 17″
SWING OVER CROSS SLIDE………………. 9″
CROSS SLIDE TRAVEL………………………. 13″
SPINDLE NOSE…………………………………. D1-6
SPINDLE THOUGH HOLE………………….. 2.36″
SPINDLE TAPER……………………………….. MT #6
SPINDLE SPEED……………………………….. 80-2500 RPM
SPINDLE MOTOR……………………………… 10 HP
TAILSTOCK QUILL DIAMETER………….. 2.96″
TAILSTOCK QUILL STROKE/CENTER…. MT#5
RAPID FEED RATES
(X)…………………………….. 75 (MAX
(Z)…………………………….. 150 (MAX)
DIMENSIONS………………………………………. 91″L x 53″W x70″H
MACHINE WEIGHT………………………………. 4,500 LBS

EQUIPPED WITH:
12″ 3-JAW CHUCK
SLX CNC CONTROLS
Star CNC Turret (4 Position)
Networking
Advanced Features
Tracking
230 Volt

In Plant Under Power

This item was recently sold.
Looking for a similar machine?

OR

Call for more information 586-465-9700

Financing is available upon request.
