Okamoto 12″ x 24″ Horizontal Reciprocating Surface Grinder

  |   By  |  0 Comments

Okamoto Horizontal Reciprocating Surface Grinder
Model PSG-63UA
Serial Number: 7646

Specifications
Table Size: 12″ x 24″
Longitudinal Table Travel: 30″
Cross Saddle Travel: 14″
Spindle To Table: 13.7″
Table Speeds: 1- 82 FPM
Cross Saddle Feeds (Intermittent): 0.02″- 0.0015″
Automatic Spindle Downfeed Rate (Incremental): 0.001″- 0.0015″
Grinding Wheel Size: 12″ x 1 1/2″ x 5″
Dimensions (L x W x H): 90″ x 70″ x 75″
Weight: 5,000 Lbs.
220V / 3 / 60

Equipped with
12″ x 24″ Electro Magnetic Chuck
Variable Chuck Control
Auto Lube System
Coolant System
Splash Guard
Horsepower: 5

Grand Rapids Model 670 16″ x 48″ Hydraulic Surface Grinder

  |   By  |  0 Comments

Gallmeyer e

Grand Rapids “AUOTOMATIC” 16″ X 48″ Hydraulic Surface Grinder
Model: 670
S/N 670116
Year of Mfg. 1967

SPECIFICATIONS:
Magnetic Chuck 16″ X 48″ w/ Rectifier
Equipped with D.R.O. by Newall
Neutrofier
Incremental Down feed
Rapid Traverse Up and Down
20″ Wheel Capacity
7.5 Main Spindle Motor HP
19″ Height Under Grinding Wheel
Machine Weight: 11,500 LBS. Approx
Machine Foot Print Dimensions: 217″ x 88.5″
Coolant System

Parker Majestic 2Z Surface Grinder – Reconditioned 2020

  |   By  |  0 Comments

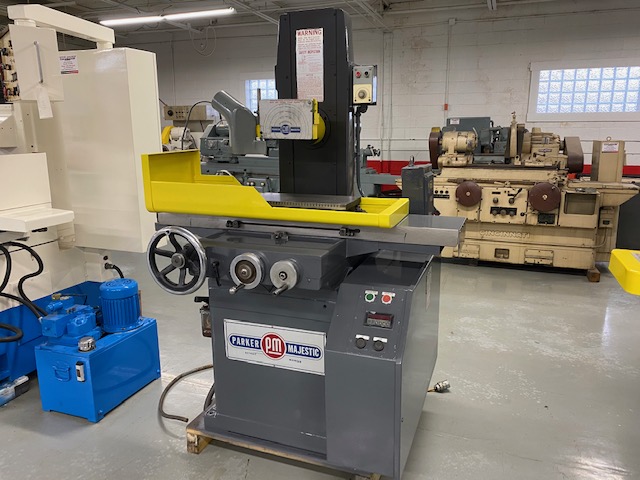

Parker Majestic 2Z Surface Grinder – Reconditioned 2020
Stock Number #2109
8″ x 18″ Capacity
Power Elevation On Ginding Wheel

Reconditioned December 2020
S/N. 5744XV91
Model. 2Z
8″ X 18″ Perm. Magnetic Chuck
3 HP Variable Speed Grinding Spindle
Power Elevation
Grinding wheel bearings in Good Condition

NEW cross slide lead screw & Nut
Table scraped to NEW machine tolerances ( New rulon on bedways )
Cross slide saddle scraped to NEW machine tolerances
NEW lubrication pump, & new lines & meters

Coolant on Base w/ Pump

Cleaned & Painted

* OPTION – NEW (2) AXIS DIGITAL READ OUTS – Additional Price

Parker Majestic 8 x 18 Surface Grinder

  |   By  |  0 Comments

e

Parker Majestic 8 x 18 Surface Grinder
Serial No. 6214 XVMA 98
Hand Feed
Heidenhain 2 axis DRO
Power Elevation
Walker 8 x 18 fine line electric magnet
Variable pull rectifier
3 HP. Parker Spindle Variable Speed
2050 to 6200 RPM
4 inch to 12 inch wheel
Auto Lube
New Electrical Panel and push buttons
220 Volt

Chevalier FSG-3A818 Hydraulic Horz Surface Grinder

  |   By  |  0 Comments


Chevalier FSG-3A818 Hydraulic Surface Grinder
Model: FSG-3A818
Serial Number:

Specifications
Table Size: 8″ x 18″
Longitudinal Table Travel: 19.75″
Cross Saddle Travel: 9″
Max. Work Height Spindle Center To Table: 17″
Table Speed (Variable): 16 – 82 FPM
Cross Feed (Intermittent): 0.02 – 0.24 IPM
Automatic Downfeed Rate: 0.0001 – 0.0002 IPM
Rapid Traverse:- IPM
Grinding Wheel Size: 8″ x 1/2″ x 1 1/4″
Spark Out: 0- 5
Dimensions (L x W x H): 86″ x 62″ x 76″
Weight: 3,000 Lbs.

Equipped with
– 3 Axis Power With Incremental Down Feed
– Electro Magnetic Chuck
– Variable Chuck Control
– Auto Lube System
– Coolant System
– Splash Guard
– Horsepower:

Chevalier 8″ x 18″ FSG-3A8181 Hydraulic Horz. Surface Grinder

  |   By  |  0 Comments


Chevalier FSG-3A818 Hydraulic Surface Grinder
Model: FSG-3A818
Serial Number: M3825001

Specifications
Table Size: 8″ x 18″
Longitudinal Table Travel: 19.75″
Cross Saddle Travel: 9″
Max. Work Height Spindle Center To Table: 17″
Table Speed (Variable): 16 – 82 FPM
Cross Feed (Intermittent): 0.02 – 0.24 IPM
Automatic Downfeed Rate: 0.0001 – 0.0002 IPM
Rapid Traverse:- IPM
Grinding Wheel Size: 8″ x 1/2″ x 1 1/4″
Spark Out: 0- 5
Dimensions (L x W x H): 86″ x 62″ x 76″
Weight: 3,000 Lbs.

Equipped with
– 3 Axis Power With Incremental Down Feed
– Electro Magnetic Chuck
– Variable Chuck Control
– Auto Lube System
– Coolant System
– Splash Guard
– Horsepower:

Parker Majestic 2Z Surface Grinder 8″ x 18″

  |   By  |  0 Comments


Parker Majestic 8″ x 18″ 2Z Surface Grinder
Serial Number: 744XV91

SPECIFICATIONS:
8″ x 18″ Capacity
Perm Magnetic Chuck
20″ Vertical Height From Centerline to Top of Table
2HP Parker Spindle
Variable Speed Spindle Control
2 Axis DRO Monitor w/o Scales
7″ x 5/8″ x 1 1/4″ Wheel Size
Power Elevation

Mattison 24″ x 30″ x 120″ Horizontal Spindle Surface Grinder

  |   By  |  0 Comments


Mattison Horizontal Spindle Surface Grinder
Serial Number: 21219

SPECIFICATIONS
Chuck(s) Size: (2) 24″ x 54″ Chucks / (1) 24″ x 8″ Chuck
Grinding Wheel Size: 20″ Dia x 6″ Width
Spindle Motor: 30 HP
Hydraulic Variable Speed Table Feed – 125 fpm
Electronically Controlled Wheel Crossfeed
Incremental Downfeed – Handwheel fine adjustment .0001″
Neutrofier Chuck Control
Auomatic Lubrication
Approx Weight: 50,600 lbs.
Approx. Dimensions: 9′ 4″ W x 10′ 11″ H x 24′ 9″ L

Amada Wasino Horizontal Rotary Surface Grinder

  |   By  |  0 Comments

L

(1) Used Amada Wasino Rotary Surface Grinder
Model: SS-501
Serial Number: 195-0-0101
New: 1986

SPECIFICATIONS:

Chuck Diameter: 20″
Swing Inside Guards: 21 5/8″
Maximum Distance Under Wheel: 5″
Vertical Traverse of Table: 7.5″
Tilting Angle of Table: +/- 3˙
Grinding Wheel Dimensions: 14″ x 2″ x 5″
Grinding Wheel Speed: 1650 RPM
Ram Feed – Infinitely Variable: 1 – 11 FPM
Ram Travel: 11″
Table Rotation – Infinitely Variable: 50 – 300 RPM
Vertical Feed of Table: 0.0001″ – 0.001″
Approx Weight: 6,000 lbs.
220/3/60 Voltage
