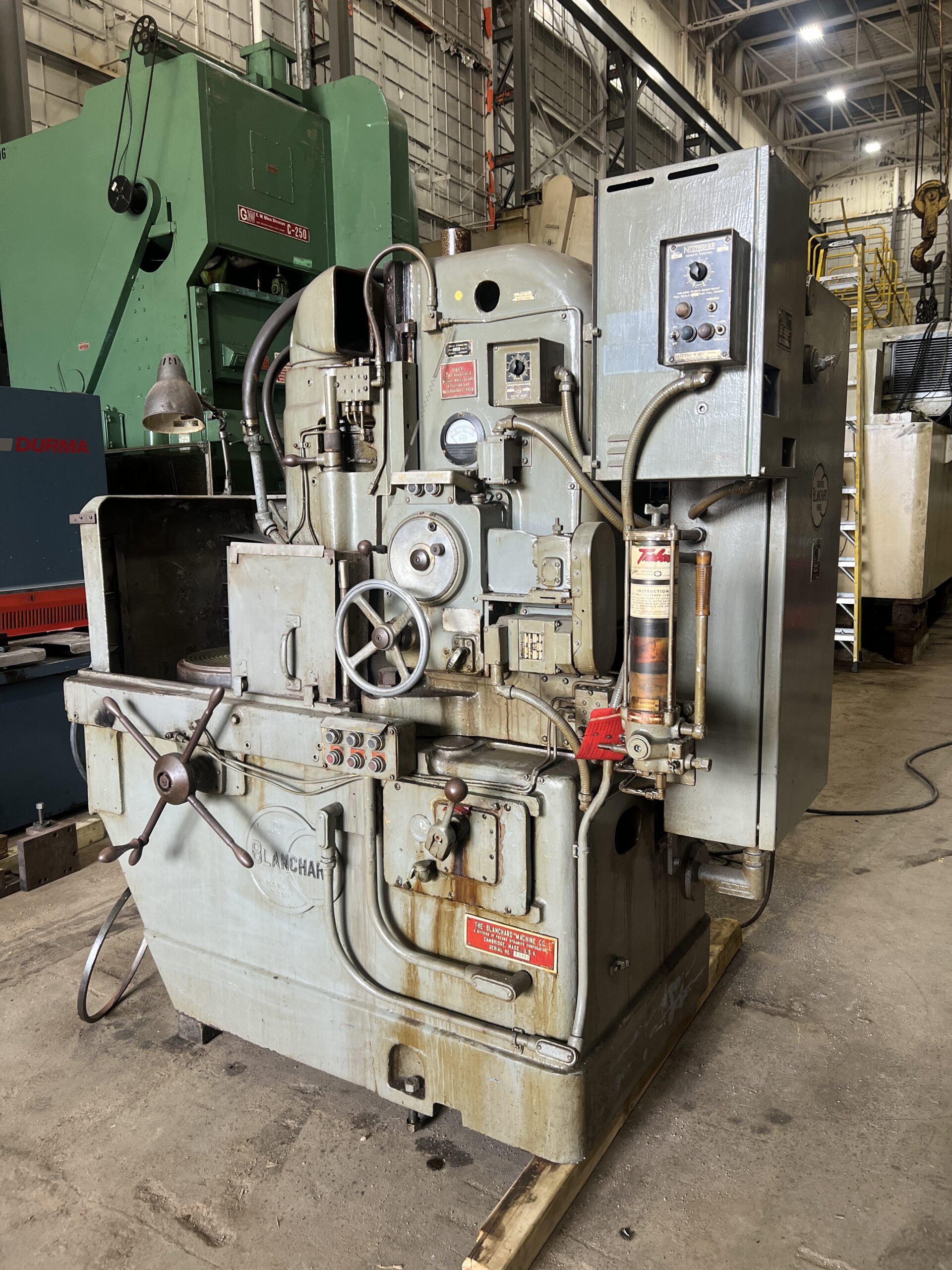

Blanchard 22K-42 Vertical Spindle Rotary Surface Grinder

  |   By  |  0 Comments

Blanchard 22K – 42 Vertical Spindle Rotary Surface Grinder
Serial Number: 13293

SPECIFICATIONS:
42″ Chuck
22″ Segmented Wheel ( 5 Seg. )
40HP Spindle Drive
Incremental Down Feed
Rapid Feed – Up & Down
24″ Vertical Height over Table
(6) Table Speeds – 6, 9, 12, 18, 25 & 33 RPM
Neutrofier Chuck Control
Lubrication System
Swing Arm Dresser
Wet Base w/ Coolant Pump
480V / 3 / 60

Blanchard 22 – 42 Vertical Spindle Rotary Surface Grinder

  |   By  |  0 Comments

Blanchard 22 – 42 Vertical Spindle Rotary Surface Grinder
Serial Number: B36-14-492
New: 1981

SPECIFICATIONS:
42″ Chuck
22″ Segmented Wheel ( 5 Seg. )
50HP Spindle Drive
Incremental Down Feed
Rapid Feed – Up & Down
24″ Vertical Height over Table
(6) Table Speeds – 6, 9, 12, 18, 25 & 33 RPM
Magna Flux Chuck Control
Graco Lubrication System
Swing Arm Dresser
Wet Base w/ Coolant Pump



Southwestern Industries TRAK K3 SMX CNC Vertical Knee Mill

  |   By  |  0 Comments

Southwest Industries TRAK K3 SMX CNC Vertical Knee Mill
New: 2012
Model: TRAK K3 SMX
Serial Number: 124CK454388

SPECIFICATIONS:
• Table Size –50” X 10”
• T-Slots – 5/8” x 3 x 2 ½”
• Table Travel – 32”
• Saddle Travel – 16”
• Knee Travel – 16”
• Ram Travel – 15”
• Maximum Quill Travel – 5”
• Quill Diameter – 3 3/8”
• Spindle Taper – R8
• Spindle Speed – 60-4200 RPM
• Head Tilt – 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
• Spindle Motor Power – 3HP
• Power Requirement Control – 110V; 1P; 8A
• Power requirements, machine – 220/440V;3P; 8.5/4.25A
• Maximum Weight on Table – 850 lbs.
• Machine Weight – 2816 lbs.
• Machine dims l,w,h, – 71” x 59” x 84”
• Maximum rapid feed – 100 IPM
• Way surface type – Dovetail X, Z Square Y
• Precision 7207 CP4 spindle bearings
• Chrome hardened and ground quill
• Meehanite castings
• Slide ways are Turcite coated
• Wide way surfaces are hardened and ground

Equipped with:
Prototrak SMX CNC Control
Power Draw Bar
Advanced features

HAAS GR 512 CNC Router

  |   By  |  0 Comments

HAAS GR512 CNC Router

SPECIFICATIONS:
Travels:
X Axis 145″
Y Axis 61″
Z Axis – 11″
Spindle Nose to Table (Max.) 13.5″
Spindle Nose to Table (Min.) 2.5″
Table:
Length 144″
Width 60″
Thickness 1″
Between Columns 62″
Max. weight on table (evenly distributed) 6000 lbs

Spindle:
Max. Rating 15 HP
Max. Speed 10,000 RPM
Max. Torque 17 ft-lb @ 4600 RPM
Drive System (Direct Speed) Belt Drive
Taper CT 40

FeedRates:
Rapids on X 800 in/min
Rapids on Y 2100 in/min
Rapids on Z 1100 in/min
Max. Cutting 800 in/min

Axis Motors:
Max. Thrust X 2520 Lb
Max. Thrust Y 1020 Lb
Max. Thrust Z 2050 Lb

Tool Changer:
Type Carousel
Capacity 20
Max. Tool Diameter (Full) 3.5″
Max. Tool Weight 12 Lb

General:
Air required 4 scfm, 100PSI
Coolant Capacity
EQUIPPED WITH:
Haas CNC Controls
5’x12″ Table
10,000 RPM 40 Taper Spindle
20 Position Automatic Tool Changer
Hard Disk Drive and Ethernet Interface
VISUAL QUICK CODE PROGRAMMING
RIGID TAPPING

HAAS VF-6 CNC Vertical Machining Center

  |   By  |  0 Comments

HAAS VF-6 Vertical CNC Machining Center
Model: VF-6/40
Serial Number: 1162284
New: 04/2019

Table:
Table Size: 64″ x 28″
Maximum Table Load: 4,000 lbs.

Travels:
X-Axis Travel: 64″
Y-Axis Travel: 32″
Z-Axis Travel: 30″

Spindle:
Spindle Speeds Minimum – Maximum: 10,000 RPM
Spindle Taper: CT 40 Taper
Main Motor (30 min. / cont.): 30 / 20 HP

Tool Changer:
Tool Changer Positions: 24 ATC

Rapids:
Rapid Traverse (XY/ Z): 540 / 600 IPM
Feed Rate: 0.1 – 300 IPM

General:
Floor Space (D x W x H): 159″ x 156″ x 129″
Weight: 22,000 lbs
220 V / 3 / 60

Equipped With:
Coolant Through Spindle (300 psi)
Macros
Rotation and Scaling
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
1 GB Memory
Wireless Networking
Compensation Tables
Max Spindle Speed: 10,000 RPM
30 HP Vector Drive, Inline Spindle
Linear Scales
Through Tool Air Blast
Auxiliary Coolant Filter
24+1 Side-Mount Tool Changer
Chip Auger
Programmable Coolant Nozzles
Color Remote Job Handle
Power-Failure Detection Module
15″ Color LCD Monistor
USB Port
Memory Lock Keyswitch
Rigid Tapping
95 Gallon Floor Coolant System

Springfield 3TR-42 R Vertical Universal Grinder

  |   By  |  0 Comments

Springfield 3TR-42 R Vertical Universal Grinder
Serial Number: 58019

SPECIFICATIONS:
42″ Table Diameter – Magnetic
52″ Swing
24″ Grinding Stroke
48″ Clearance Under Rail
17″ Spindle Length
10 HP Spindle Drive Motor
Dresser
(4) Magnetic Chucks on Table
* Rotary Chuck Not Included

Additional Spindles Available – Request Info
Machine Operators Platform Available

Springfield 3TR-42 Vertical Universal Grinder

  |   By  |  0 Comments

Springfield 3TR-42 Vertical Universal Grinder
Serial Number: 54085

SPECIFICATIONS:
42″ Table Diameter – T-Slotted
52″ Swing
24″ Grinding Stroke
48″ Clearance Under Rail
24″ Spindle Length
10 HP Spindle Drive Motor
Dresser

Additional Spindles Available – Request Info
Machine Operators Platform Available

HAAS VF-0 CNC Vertical Machining Center

  |   By  |  0 Comments

HAAS VF-0 CNC Vertical Machining Center

SPECIFICATIONS:
X Axis Travel: 20″
Y Axis Travel: 16″
Z Axis Travel: 20″
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 26″ x 14:
Max Table Load: 1,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,00 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4? – 24?
Dimensions: 92″ x 95″ x 95″
Weight: 7,500 LBS

EQUIPPED WITH:
HAAS CNC Control – Updated in 2019
3000 Spindle Hours
Misc CAT 40 Tool Holders
4th Axis Plug In
Table Vise
3 Jaw Chuck for Table
Coolant Tank & Pump
Manuals & Drawings

Southwestern Industries Proto Trak DPM2 Vertical Mill

  |   By  |  0 Comments

SWI Proto Trak Vertical Milling Machine
Model: DPM2
Serial Number: 062CR14525

SPECIFICATIONS:
9″ x 49″ Table
Travels: 32″ x 16″
Z Axis Travel: 27″
Max Quill Travel: 5″
Max Work Weight: 1320LBS.
3HP Head
Taper: R8

EQUIPPED WITH:
Proto TRAK SMX 3 Axis CNC Control – Conversational & G Code Programming
Torque-Rite Power Draw Bar
Coolant
220/3/60 Electrics
