Southwest Industries TRAK K3 SMX CNC Vertical Knee Mill
New: 2012
Model: TRAK K3 SMX
Serial Number: 124CK454388
SPECIFICATIONS:
• Table Size –50” X 10”
• T-Slots – 5/8” x 3 x 2 ½”
• Table Travel – 32”
• Saddle Travel – 16”
• Knee Travel – 16”
• Ram Travel – 15”
• Maximum Quill Travel – 5”
• Quill Diameter – 3 3/8”
• Spindle Taper – R8
• Spindle Speed – 60-4200 RPM
• Head Tilt – 45 deg. forward, 45 deg. back, 90 deg. left, 90 deg. right
• Spindle Motor Power – 3HP
• Power Requirement Control – 110V; 1P; 8A
• Power requirements, machine – 220/440V;3P; 8.5/4.25A
• Maximum Weight on Table – 850 lbs.
• Machine Weight – 2816 lbs.
• Machine dims l,w,h, – 71” x 59” x 84”
• Maximum rapid feed – 100 IPM
• Way surface type – Dovetail X, Z Square Y
• Precision 7207 CP4 spindle bearings
• Chrome hardened and ground quill
• Meehanite castings
• Slide ways are Turcite coated
• Wide way surfaces are hardened and ground
Equipped with:
Prototrak SMX CNC Control
Power Draw Bar
Advanced features
Bridgeport Series I Vertical Knee Mill
SPECIFICATIONS:
9″ x 42″ Table
Rebuilt Milling Head
One Shot Lubrication
Sony 2 Axis DRO
KIA KBN 135 CNC Horizontal Boring Mill
Serial Number: KBN1350017
New: 1999
SPECIFICATIONS:
X-Axis Travel: 118.1″
Y-Axis Travel: 78.7″
Z-Axis Travel: 63″
Spindle Speed: 2,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Tool Magazine Capacity: 40 ATC
Control: Fanuc 16i
Chip Removal: Chip Conveyor
Coolant: 1,000 PSI CoolJet Through Spindle Coolant
Table Size: 78.74” X 70.87”
Table Load Capacity: 22,046 LBS.
Spindle Diameter: 5.3″
W – Axis Travel: 27.6″
B – Axis Indexing: .001
Tool Diameter: 5.1″, 9.8″
Tool Length: 23.6″
Tool Weight: 66 LBS.
Rapid Traverse X, Y, Z, W: 315, 315, 315 IPM
Cutting Feed Rate: .04 ~ 197 IPM
Machine Weight: 82,012 LBS
4th Axis Rotary Table
60 + Tool Holders
Misc. Table Fixtures
Misc Inspected & Calibrated Every Year w/ Reports Available
Machine Installed into current location 2015. New Drives and Fully Maintenance
HAAS VF-6 Vertical CNC Machining Center
Model: VF-6/40
Serial Number: 1162284
New: 04/2019
Table:
Table Size: 64″ x 28″
Maximum Table Load: 4,000 lbs.
Travels:
X-Axis Travel: 64″
Y-Axis Travel: 32″
Z-Axis Travel: 30″
Spindle:
Spindle Speeds Minimum – Maximum: 10,000 RPM
Spindle Taper: CT 40 Taper
Main Motor (30 min. / cont.): 30 / 20 HP
Tool Changer:
Tool Changer Positions: 24 ATC
Rapids:
Rapid Traverse (XY/ Z): 540 / 600 IPM
Feed Rate: 0.1 – 300 IPM
General:
Floor Space (D x W x H): 159″ x 156″ x 129″
Weight: 22,000 lbs
220 V / 3 / 60
Equipped With:
Coolant Through Spindle (300 psi)
Macros
Rotation and Scaling
Rigid Tapping
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
1 GB Memory
Wireless Networking
Compensation Tables
Max Spindle Speed: 10,000 RPM
30 HP Vector Drive, Inline Spindle
Linear Scales
Through Tool Air Blast
Auxiliary Coolant Filter
24+1 Side-Mount Tool Changer
Chip Auger
Programmable Coolant Nozzles
Color Remote Job Handle
Power-Failure Detection Module
15″ Color LCD Monistor
USB Port
Memory Lock Keyswitch
Rigid Tapping
95 Gallon Floor Coolant System

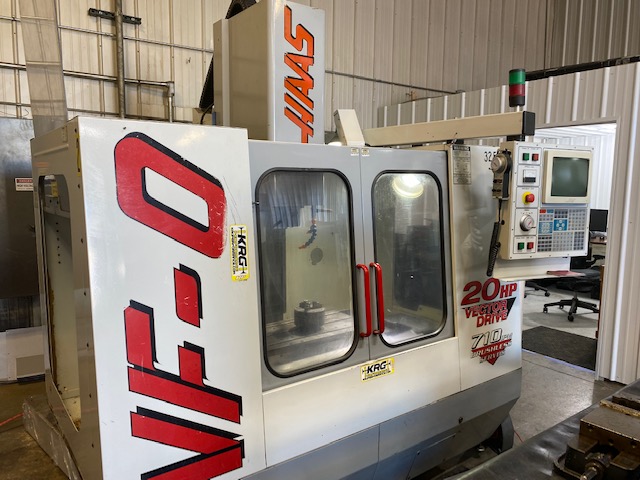

HAAS VF-0 CNC Vertical Machining Center
SPECIFICATIONS:
X Axis Travel: 20″
Y Axis Travel: 16″
Z Axis Travel: 20″
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Table Size: 26″ x 14:
Max Table Load: 1,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 10,00 RPM
Spindle Taper: 40 CT
Tool Changer: 20 ATC
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4? – 24?
Dimensions: 92″ x 95″ x 95″
Weight: 7,500 LBS
EQUIPPED WITH:
HAAS CNC Control – Updated in 2019
3000 Spindle Hours
Misc CAT 40 Tool Holders
4th Axis Plug In
Table Vise
3 Jaw Chuck for Table
Coolant Tank & Pump
Manuals & Drawings
SWI Proto Trak Vertical Milling Machine
Model: DPM2
Serial Number: 062CR14525
SPECIFICATIONS:
9″ x 49″ Table
Travels: 32″ x 16″
Z Axis Travel: 27″
Max Quill Travel: 5″
Max Work Weight: 1320LBS.
3HP Head
Taper: R8
EQUIPPED WITH:
Proto TRAK SMX 3 Axis CNC Control – Conversational & G Code Programming
Torque-Rite Power Draw Bar
Coolant
220/3/60 Electrics
Dahlih Double Column Vertical Machining Center
Serial Number: 3006040070
New: 2019
SPECIFICATIONS:
Table Size: 2200mm x 1500mm
Travels: X Axis 2200
Y Axis 1600mm
Z Axis 800mm ( 1100mm )
Between Column: 1700mm
Feed Rate – Rapid: X Axis 20 m/min
Y Axis 20 m/min
Z Axis 20 m/min
Spindle Taper: BT50
Spindle Speed: 10,000RPM
ATC: 40 Tools
Chip Conveyor
480V / 60C / 3P
CONTROL:
Fanuc Series 0i-MF
9330 Power on Hours at time of Inspection
Bridgeport Series I Vertical Knee Mill
SPECIFICATIONS:
9″ x 48″ Table
2HP Series I Milling Head
Power Feed Table
Acu-Rite 2 Axis DRO
One Shot Lubrication System
230 Volt
