(1) USED LANDIS 10” X 20” 1R UNIVERSAL CYLINDRICAL GRINDER
Serial Number: 836-7
SPECIFICATIONS:
Nominal work swing: 10”
Nominal distance between centers: 20”
Table traverse speed: 2 to 240 IPM
Grinding wheel size: 12” diameter x 1” wide x 5” hole
Grinding wheel max width: 1.5”
Grinding wheel spindle motor: 5 HP
Workhead speeds: 30 to 150 RPM
Grinding wheelhead swivel: upper & lower : 90 Degrees each way
Headstock center: #10 Jarno
Footstock center: #6 Jarno
Footstock center movement: lever operated
Diameter of hole in spindle: 1”
Headstock swivel: 120 Degrees
Headstock spindle nose: 5A-2
EQUIPPED WITH:
Plunge cycle
Table Traverse
Manual tailstock
Attached electrical panel
(1) USED LANDIS 10” X 20” 1R UNIVERSAL CYLINDRICAL GRINDER W/ ID ATTACHMENT
Serial Number: 875-45
SPECIFICATIONS:
Nominal work swing: 10”
Nominal distance between centers: 20”
Table traverse speed: 2 to 240 IPM
Grinding wheel size: 12” diameter x 1” wide x 5” hole
Grinding wheel max width: 1.5”
Grinding wheel spindle motor: 5 HP
Workhead speeds: 30 to 150 RPM
Grinding wheelhead swivel: upper & lower : 90 Degrees each way
Headstock center: #10 Jarno
Footstock center: #6 Jarno
Footstock center movement: lever operated
Diameter of hole in spindle: 1”
Headstock swivel: 120 Degrees
Headstock spindle nose: 5A-2
EQUIPPED WITH:
Swing Down ID Spindle
Plunge Cycle
Table Traverse
Tarry timers left and right reversal
Attached electrical panel

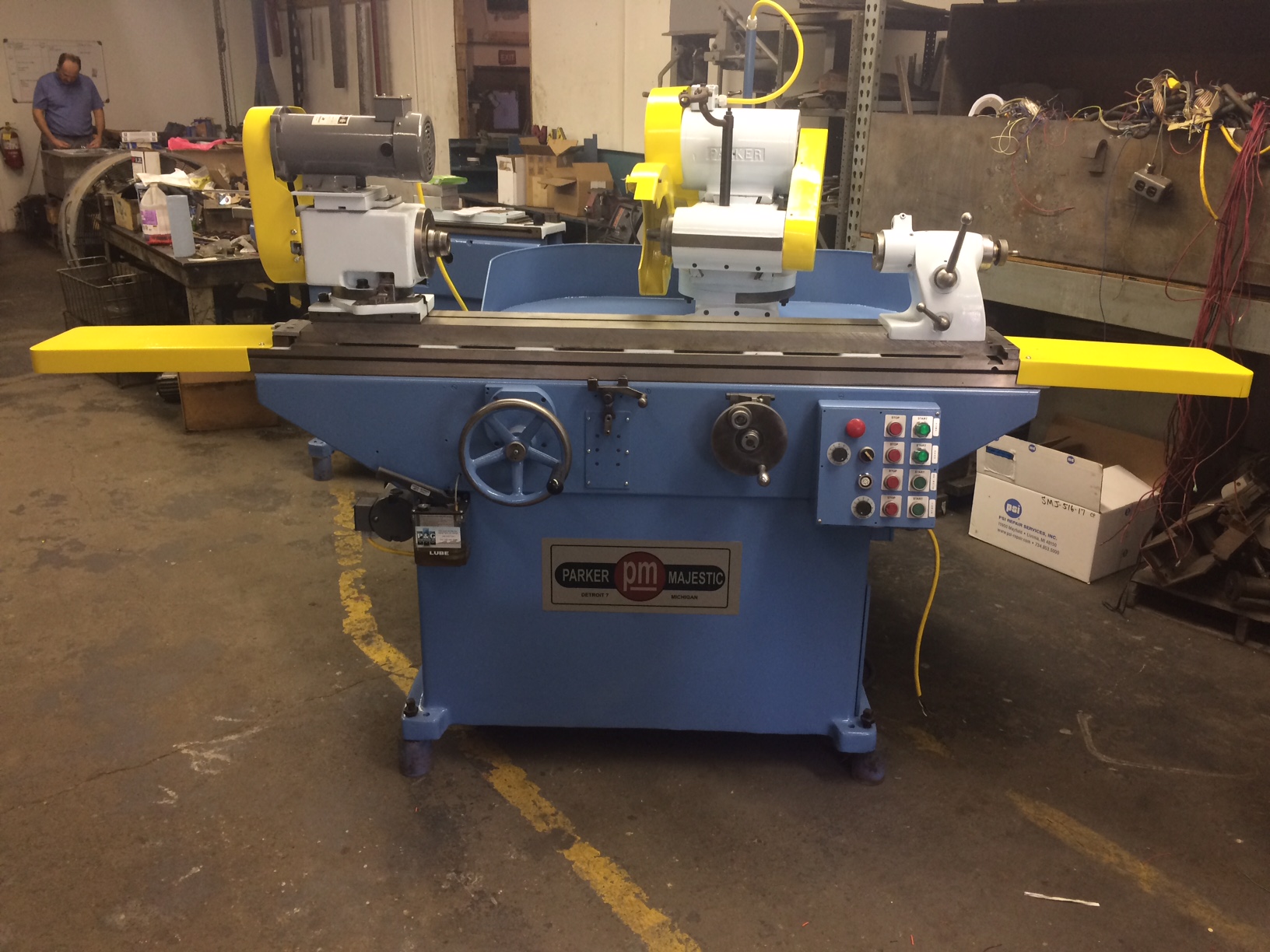

(1) Parker Majestic 2U Combination ID/OD Grinder – Remanufactured 2022
New: Remanufactured 2022
Specifications:
Swing: 12″
Center Distance: 28″
Table Speeds: 3-30″ IPM
Headstock Swivel: 90˙
Headstock Speeds: ( Variable ) 50-450 RPM
Crossfeed Graduated: 0.50″
Precision Dial: 0.000050″
Coolant System
Approx Floor Space: 41″ x 124″
Approx Weight: 3,800 lbs.
Equipped With:
Swing Around ID / OD Spindles
5″ Sine Bar on Headstock
Compound Universal Swivel Slides Under Grinding Spindle Assemblies
P & G One Shot Lubrication System
Scope of Remanufacturing – 2022
New D.C motor drive VARI-Speed on headstock
New D.C motor drive VARI-Speed on table drive
New lead screw in cross slide
Compound universal (2) swiveling slides under Grinding wheel
New P & G One Shot Lube System
ALL NEW ELECTRICS IN PANEL, PUSH BUTTONS, AND MOTORS
COMPLETELY FLAKED & SCRAPPED TO NEW TOLERANCE
SPINDLES COMPLETE REBUILD WITH NEW BEARINGS
SCOPE of Re-Conditioning
• Rebuild Headstock – New Bearings & Rebuild Drive Motor
• ID Spindle Rebuilt
• OD Spindle Checked & Tested for Run Out ( Excellent Condition )
• Rebuild Table Drive Motor
• Install New Cross Feed Screw & Nut
• Install New Meters & One Shot Lubrication Pump
• Ground, Scraped & Flaked Table Ways / Bed Ways & Cross Slide
• New Rulon Installed
• Tailstock Rebuilt
• New Variable Speed Drive & Motor on Headstock
• All NEW Electrical Components, Wiring & Push Buttons
• Test & Flush Coolant System
• Machine Completely Disassembled, Stripped & Painted to Customers Color Choice
(1) Used Parker Majestic Universal ID / OD Grinder – Re-Conditioned
Model: 1C Year: Re-Conditioned
Serial Number 1C-2023
Specifications:
12” x 24” Capacity
Vari Speed Headstock
Power Table Table Travel ( Variable Speed )
Swing Around ID Spindle
1.5 HP Spindle Motor
5″ Sine Bar on Headstock
Coolant Pump & Wet Base
Landis 36″ x 48″ Universal Cylindrical Grinder w/ ID Attachment
SPECIFICATIONS:
Swing: 36″
Distance Between Centers: 48″
Hydraulic Table Travel
Manual Tailstock
Internal Grinding Attachment
Table Mounted Dresser
Coolant System

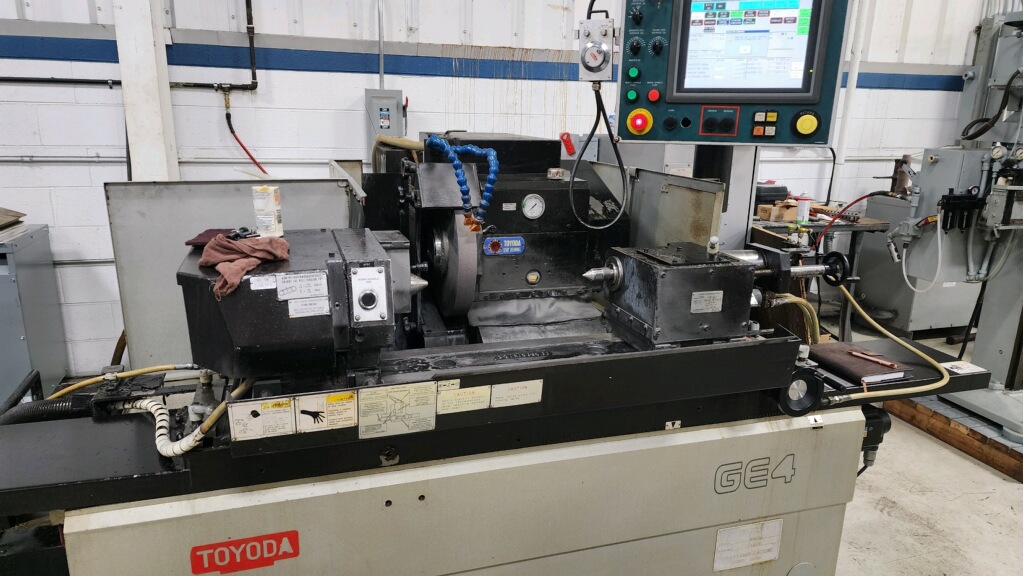

12.6″ x 20″ toyoda ge4p-50m cnc plain cylindrical grinder
new: 2013
SPECIFICATIONS:
max. work swing: 12.6″
max. distance between centers: 20″
max. supportable weight: 330 lbs.
workhead
work speeds, infinitely variable: 10 – 500 rpm
center taper: #4 morse
workhead spindle: live spindle
wheelhead
travel distance: 9.843″
rapid traverse rate: 393.7″ inch/min
programmable feed rate: 0.00001 – 200 inch/min
straight: 0 degrees fixed
wheel spindle bearings: toyoda stat bearings
tailstock
work center taper: #4 morse
quill travel distance: 0.787″
taper compensation: 0.002
quill advance/retraction: hydraulic power
grinding wheel
size (od x width x id): 16″ x 3″w x 5″
max. grinding wheel width: 4″
minimum grinding wheel o.d.: 11″
sfpm surface speed: 6,500 – 4,475 sfpm
table
travel distance: 30.315″
rapid-traverse rate: 393″ inch/min
programmable feed rate: 0.0001″ – 200″ inch/min
swivel of taper adjust: 0 to 12.5 degrees
way construction: ground, vee and flat pressurized
motors
wheel spindle: 5 hp t.e.f.c.
work spindle: 1.0 hp ac servo
wheelhead feed motor: 1.15 hp ac servo
table feed motor: 1.75 hp ac servo
wheel spindle lube: 1/3 hp
machine dimensions and construction
dimensions: 58″w x 76″d x 74″h
centerline of workpiece, height from floor: 41″
weight: 8,800 lbs.
construction: cast iron
tank capacities
way lubrication oil tank: 3.17 gallons
wheel spindle lubrication tank: 3.17 gallon
lubrication
wheel spindle: recirculating hydraulic oil
ways: recirculating lube oil
ballscrews: recirculating lube oil
workhead spindle: permanent grease packed
footstock: recirculating hydraulic oil
electrical specifications
standard voltage: 220 volts, 3-phase, 60 hertz, ac
toyoda rc-50b cnc control specifications:
manual pulse generator
full linear and circular contouring and positioning
digital and ac servo systems
direct rpm programming or constant surface feet per minute
built-in diagnostics
color lcd display
macro subroutines
decimal point programming
absolute/incremental programming
usb port, computer interface
machine features & equipment
cast iron machine base
vee & flat pressurized way system
combination live & dead spindle workhead
workhead, dual “live” & “dead” spindle option
toyoda “stat” grinding wheel spindle bearings
hydraulic power operated tailstock
fine taper adjustment of tailstock
presently has a 16″ x 3.5″w grinding wheel, with 4″ wheel guard capa
coolant system with “barnes” magnetic separator
dial indicator for table swivel adjustment
center in workhead
Springfield 3TR-42 R Vertical Universal Grinder
Serial Number: 58019
SPECIFICATIONS:
42″ Table Diameter – Magnetic
52″ Swing
24″ Grinding Stroke
48″ Clearance Under Rail
17″ Spindle Length
10 HP Spindle Drive Motor
Dresser
(4) Magnetic Chucks on Table
* Rotary Chuck Not Included
Additional Spindles Available – Request Info
Machine Operators Platform Available
Springfield 3TR-42 Vertical Universal Grinder
Serial Number: 54085
SPECIFICATIONS:
42″ Table Diameter – T-Slotted
52″ Swing
24″ Grinding Stroke
48″ Clearance Under Rail
24″ Spindle Length
10 HP Spindle Drive Motor
Dresser
Additional Spindles Available – Request Info
Machine Operators Platform Available
Norton 10″ x 36″ C5 Heavy Duty Plain OD Grinder
SPECIFICATIONS:
Swing: 10″
Center Distance: 36″
Grinding Wheel: 30″ Dia X 8″ Wide
Manual Tailstock
Duplitru Dresser
Rollmatic CNC Tool Grinding Machine
Model CNC 148 P4
Serial Number: 4493
Year: 2005
SPECIFICATIONS:
Grinding capacity Ø 0.025 -12.7 mm
Grinding length 0 – 200 mm
Bar diameter Ø 1.0 – 12.7 mm
Motor 0.70 KW
Rotation 300-3000 rpm
Dimensions 1830 x 2040 x 2100 mm
Weight 1800 Kg
Y-Axis has a little slop per Customer
